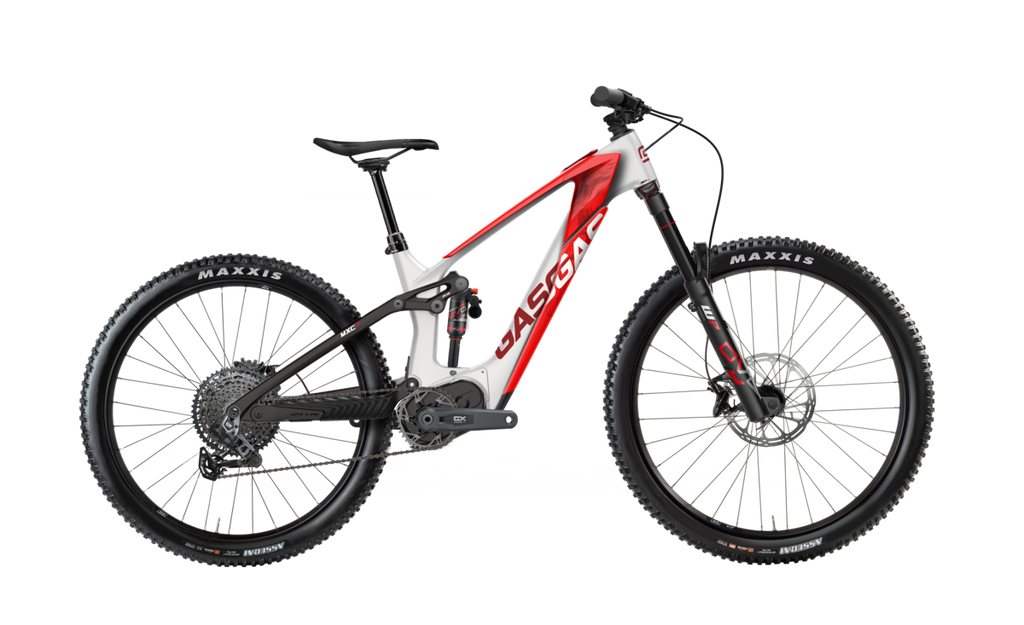

USED GASGAS MXC 5 M/L
Specification
WHEEL SIZE | 27.5“/584mm, 29"/622 mm |
FRAME | Carbon, Integrated Battery, Boost, 140 mm |
FORK | DVO Onyx D1CV-SL, Air, 160 mm |
SHOCK | DVO Topaz AIR CV, Air, 205x60 mm |
MOTOR | SRAM Eagle Powertrain Drive Unit, 90nm |
BATTERY | SRAM Eagle Powertrain, 600wh |
-
REAR DERAILLEUR: SRAM GX Eagle Transmission, 12-S
- GEAR SHIFT LEVER: SRAM AXS Pod Ultimate Controller
- CASSETTE: SRAM XS-1275, 10-52 T
- CHAIN: SRAM GX Eagle Transmission Flattop
- CHAIN RING: SRAM XX Eagle Transmission
- CRANK ARM: SRAM GX Eagle eMTB
- PEDALS: GASGAS, aluminium
- BRAKES: SRAM G2 RS, 4-piston, Hydraulic disc brake
- STEM: GASGAS 35, 0 °, Ahead
- HANDLEBAR: GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
- GRIPS: GASGAS MTB, Lock-on grips
- SEAT POST: GASGAS Pro, 34.9 mm, Dropper post
- SADDLE: Selle San Marco GND
- WHEELS: Mach 1 TRUCKY 30 (front) / 35 (rear), Tubeless ready
- FRONT TYRE: Maxxis Assegai, 63-622, 29x2.5
- REAR TYRE: Maxxis Minion DHR II, 62-584, 27.5x2.4
- FRAME COLOR: Blanca White / Electronic Red / Sangria Red
- TRAILER APPROVAL: No
- CHARGER: SRAM Eagle Powertrain Charger
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg
The MXC 5 is an all-mountain, all-rounder play bike. A package of brazen fun, it’s built for thrills and high-energy trail seekers. With a 160 / 140 mm suspension platform, it’s massively capable in any surrounding. It’s also a bike that is unwilling to define itself by any one genre. Bike park laps, rowdy natural trails, jump lines, free riding in the mountains...it does it all in true GASGAS style.
The full carbon frame, with mullet wheel set-up, and a size- specific rear triangle are matched with progressive geometry and playful kinematics to create a tailored ride feel that’s super agile and instantly confidence inspiring. The innovative durable covers and plastic skid plate keep things protected as your rowdiness increases and offer some unique personalization options for the future.
The all-new SRAM Eagle Powertrain drive unit with 630 Wh battery and AXS Bridge Display delivers a complete eMTB system. Super-quiet and ultra-smooth, it lends a more natural feel to eMTB riding. The MXC 5’s suspension comes courtesy of DVO powered by WP, with ground-breaking cone-valve technology found for the first time in the eMTB space.
Braking is handled by SRAM G2 RS 4-piston callipers on 200 mm rotors. The 12-speed SRAM GX Eagle Transmission mated with the AXS Pod Ultimate Controller ensures a clean and uncluttered handlebar setup for a sweet-looking rig that’ll turn heads standing still.
GEOMETRIES
SIZE | S/M | M/L | L/XL | |
A - Top Tube Length | 588 mm | 613 mm | 638 mm | |
B - Seat Tube Length | 400 mm | 440 mm | 470 mm | |
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual |
78° 74.4° |
78.25° 75.2° |
78.5° 75.5° |
|
D - Head Tube Length | 115 mm | 130 mm | 145 mm | |
E - Headtube Angle | 64° | 64° | 64° | |
F - Chain Stay Length | 461 mm | 465mm | 469mm | |
G - Wheel Base | 1257 mm | 1289 mm | 1325 mm | |
I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm | |
K - Stack | 649 mm | 663 mm | 676 mm | |
L - Reach | 450 mm | 475 mm | 500 mm |
