Description

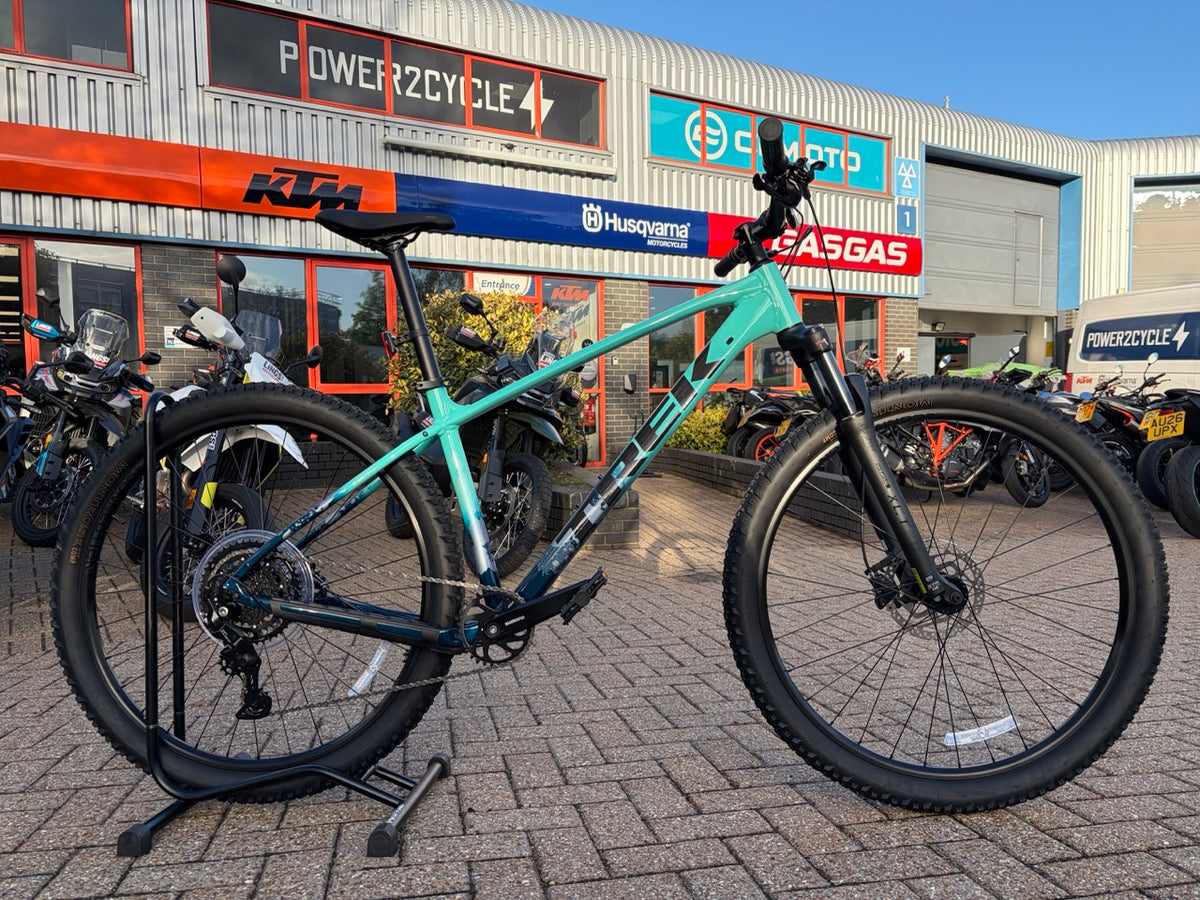

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Frame: Alpha Silver Aluminium
Fork:
Size: XS

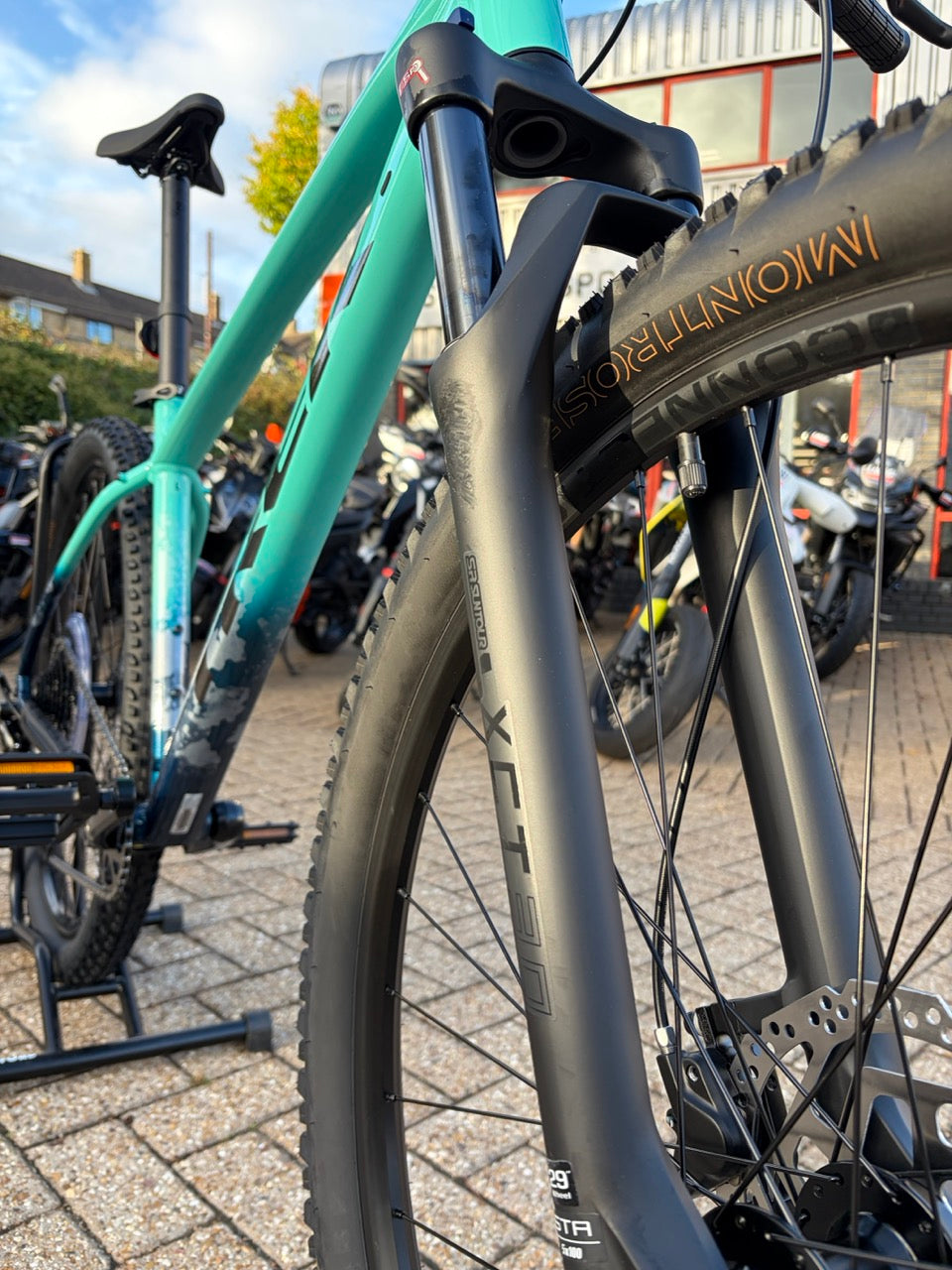

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Rim:
Size: XS , S , M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Size: M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tyre:
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Max tyre size: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
Shifter: Shimano U4000, 9-speed
Rear derailleur: Shimano CUES U4000
Crank:
Size: XS , S , M , ML
170 mm length
Size: L , XL , XXL
175 mm length
Chainring: Shimano CUES U4001, 32T
Max. chainring size: 1x: See FAQ, 2x: 36T, 3x: 42T
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500, 9/10/11-speed
Pedal: VP-536 nylon platform
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar:
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set: Semi-integrated, 1-1/8"
Brake rotor: Shimano RT26, 6-bolt, 160 mm
Brake Set: Shimano MT200 hydraulic disc
Rotor size: Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
Weight: M – 23.10 kg/50.93 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
