Description

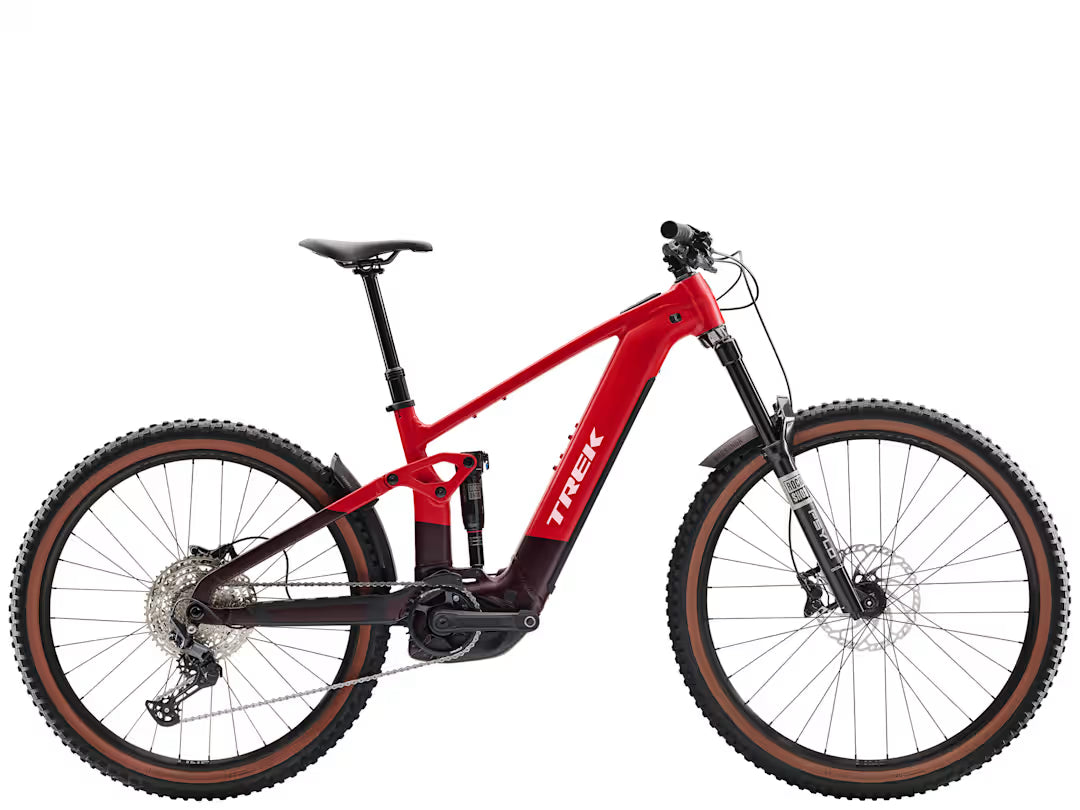

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
Frame: Alpha Platinum Aluminium
Fork: RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
Shock: RockShox Deluxe Select+ RT, 205 mm x 65mm
Rim: Bontrager TLR 30
Tyre:
Size (Rear): S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Size (front): M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
Size (Rear): S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Max tyre size: Frame: 27.5x2.60", Fork: See manufacturer
Battery: Bosch PowerTube 800 Wh, smart system
Charger: Bosch standard 2A, 230V, smart system
Computer: Bosch System Controller BRC3100, smart system
Motor: Bosch Performance Line CX
Max assist speed: 15.5 mph
Shifter: Shimano Deore M6100, 12-speed
Rear derailleur: Shimano Deore M6100, long cage
Crank: E*thirteen E*spec Plus, 160 mm length
Chainring: E*thirteen, 34T, steel
Max. chainring size: 1x: 42T
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Saddle: Bontrager Verse P3, steel rails
Seatpost:
Size: S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Brake rotor: Shimano RT66, 6-bolt, 203 mm
Brake Set: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Rotor size: Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Weight: M - 24.78 kg / 54.64 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
| Frame Size | Rider Height (Metric) | Rider Height (Imperial) | Inseam (Metric) | Inseam (Imperial) |
| S | 155 – 165 cm | 5'1" – 5'5" | 74 – 78 cm | 29" – 31" |
| M | 165 – 177 cm | 5'5" – 5'10" | 79 – 83 cm | 31" – 33" |
| L | 177 – 188 cm | 5'10" – 6'2" | 84 – 89 cm | 33" – 35" |
| XL | 188 – 195 cm | 6'2" – 6'5" | 89 – 91 cm | 35" – 36" |
