The OSET 20 electric bike has an impressive track record when it comes to competition wins. Over the years, it has consistently demonstrated its superiority in various events, solidifying its reputation as the go-to electric bike for young riders

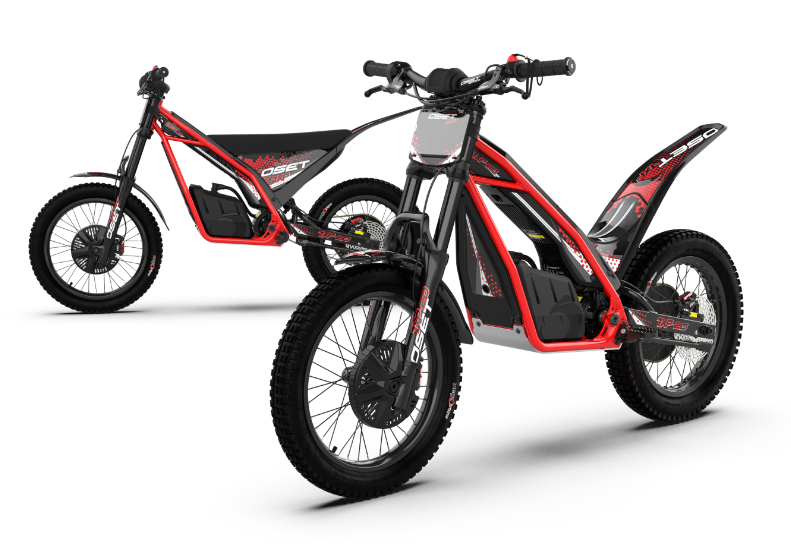

The all new TXP-20 is looking to extend the legacy of this bike for years to come, showing the competition how Trials bikes should be made
Maximum Speed
20mph
Weight Limit (Rider)
60kg
Wheelbase
1085mm
Ground Clearance
255mm
Handlebar Height
930mm
Foot Peg Height
305mm
Weight
Trials: 40.7kg
Xplore: 42.4kg
Seat Height
Trials: 525mm
Xplore: 700mm
Gearing
11T front sprocket, 86T rear. #219 chain
Motor
1400W 52v OSET BLDC with position encoder
Frame
Steel tubular frame, replaceable alloy sump plate
Swingarm
Steel with integrated chain tensioners and chain guide
Suspension (Front)
125mm air sprung, with rebound & volume adjustment
Suspension (Rear)
120mm air sprung, with rebound & volume adjustment
Tyres
OSET Mega Gripper
Brakes
Dual piston hydraulic disc, 180mm rotors and front rotor guard
Foot Pegs
OSET factory steel pegs with replaceable hangers
Handlebars
640mm width, 64mm rise, 31.8mm diameter, 7075 alloy
Controller
52v, 1400W controller with IP67 rated connectors
Throttle
Dual sensing twist type
Battery
Sealed, 52v 20Ah lithium battery with LED status indicator
Adjustment
Integrated keypad, with adjustable speed, power and throttle response
Safety
Patented OSET magnetic kill switch with lanyard
