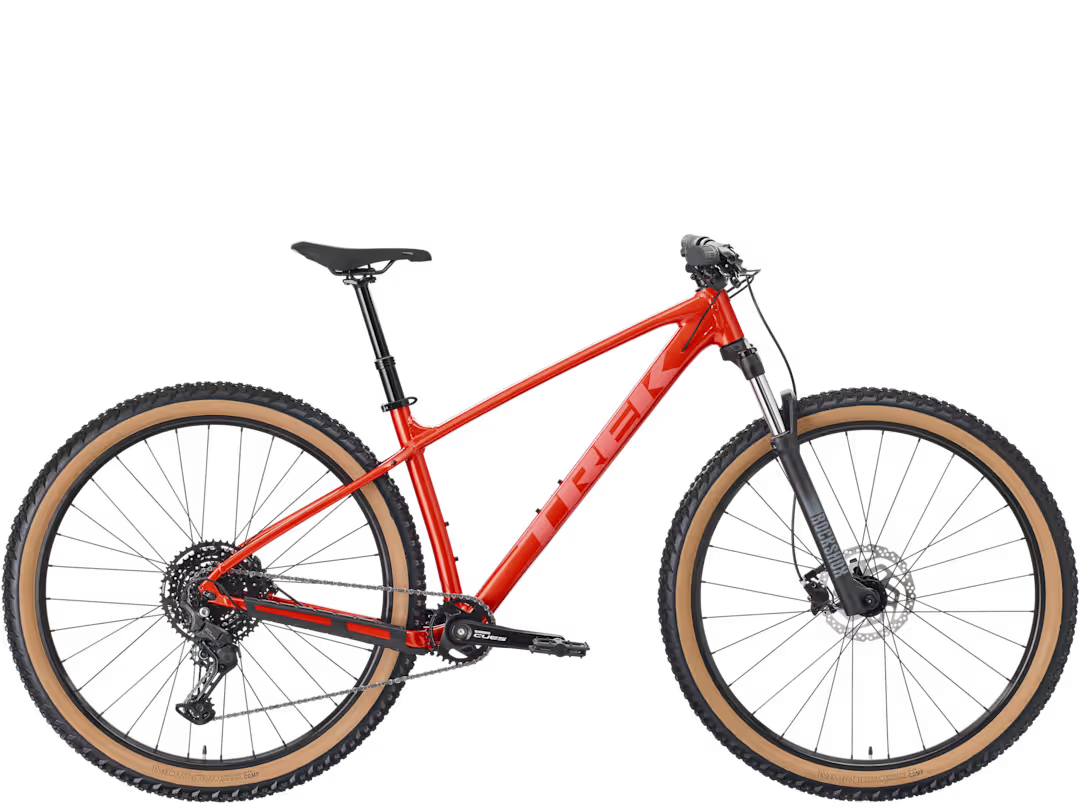

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated, slacker frame geometry makes descents easier to control, while a suspension fork helps smooth out bumpy terrain. Integrated rack and kickstand mounts make it easy to set up for weekday commuting or everyday errands.

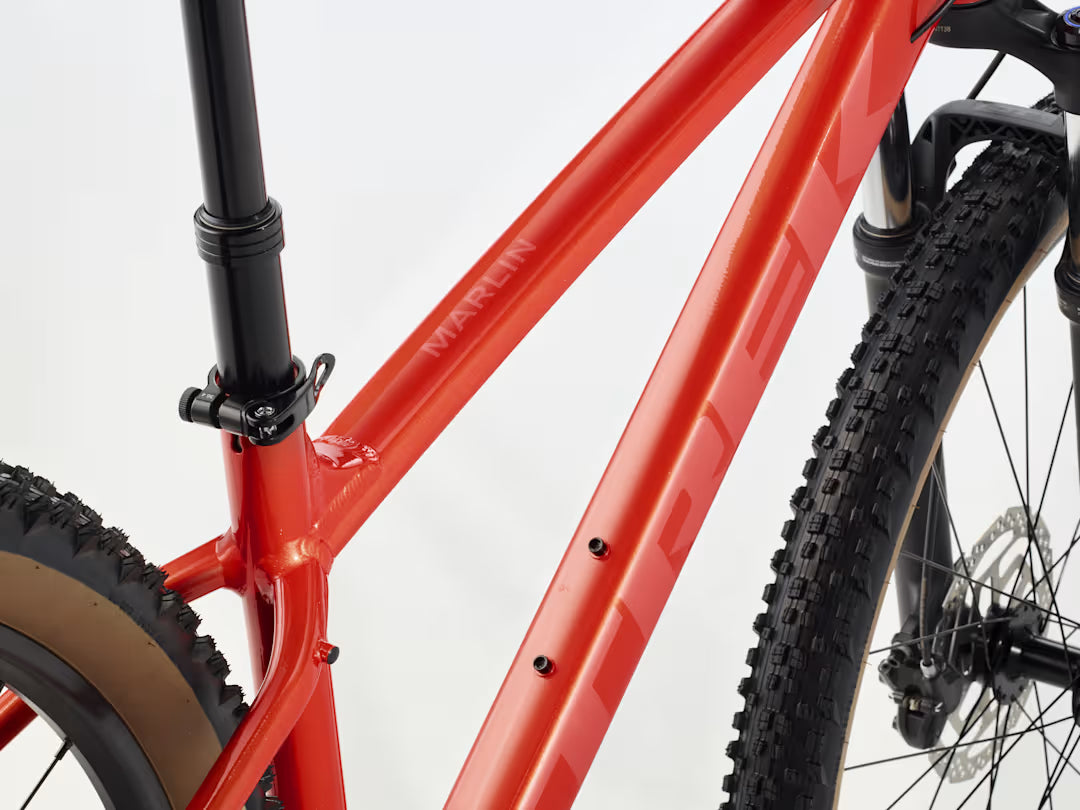

Frame: Alpha Silver Aluminium
Fork:

Size: XS , S

RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Size: M , ML , L , XL , XXL

RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Rim:
    Size: XS , S , M , ML , L , XL , XXL
    Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
    Size: M , ML , L , XL , XXL
    Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tyre:
    Size: XS , S
    Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
    Size: M , ML , L , XL , XXL
    Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Max tyre size
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Shifter: Shimano U6000, 10-speed

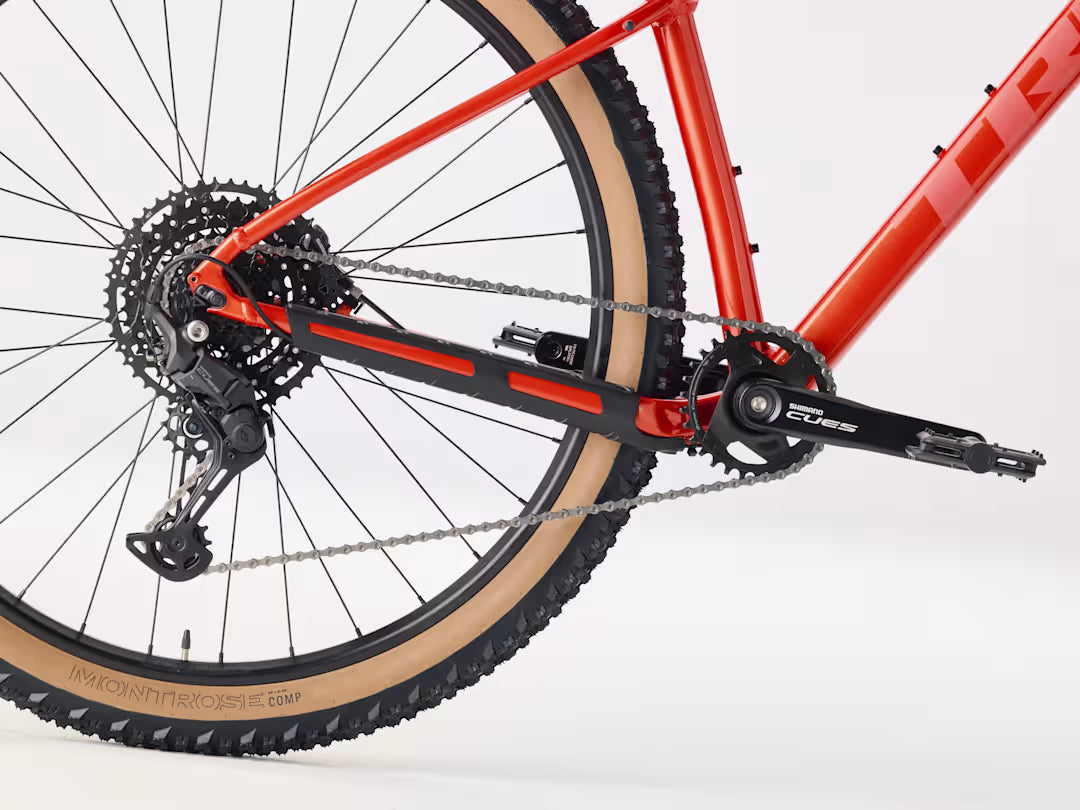

Rear derailleur: Shimano CUES U6000 GS
Crank:
   Size: XS , S , M , ML
   170 mm length
   Size: L , XL , XXL
   175 mm length
Chainring: Shimano U4000, 30T chainring
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500, 9/10/11-speed
Pedal: VP-536 nylon platform

Max. chainring size: 1x: See FAQ, 2x: 36T, 3x: 42T
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
    Size: XS , S
    TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length
    Size: M
    TranzX JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length
    Size: ML , L , XL
    TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length
    Size: XXL
    TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length

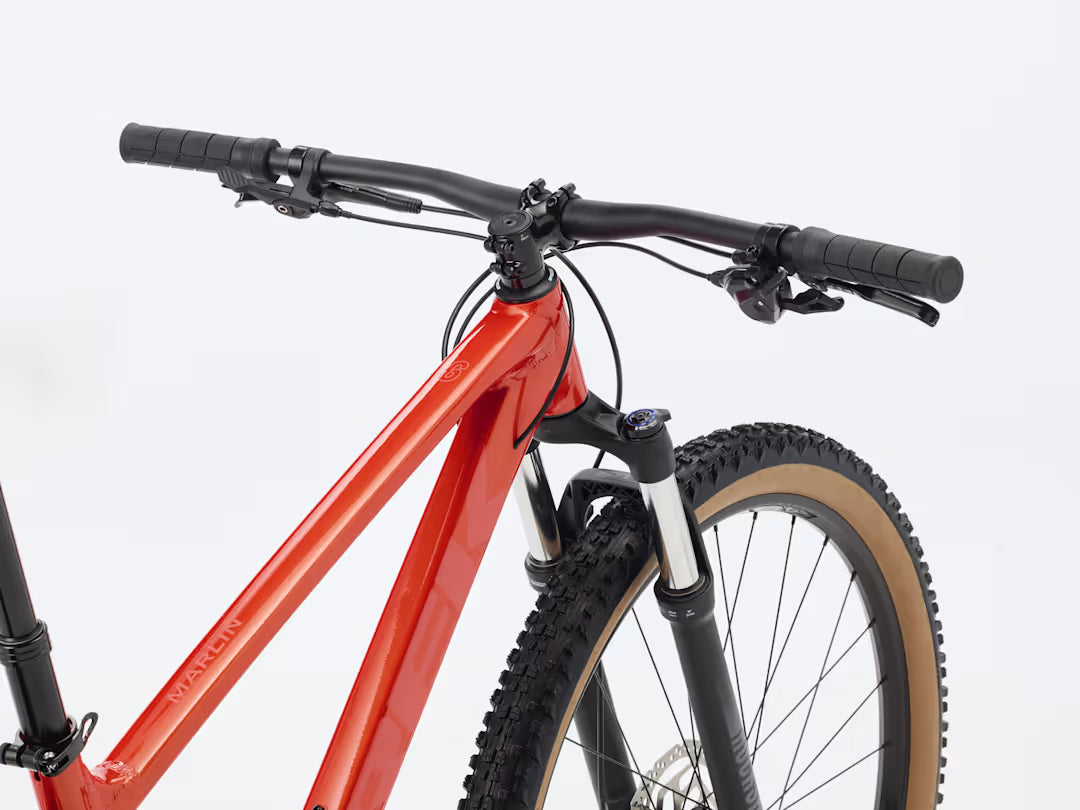

Handlebar:
    Size: XS
    Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
    Size: S
    Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
    Size: M , ML , L , XL , XXL
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
    Size: XS , S
    Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
    Size: M , ML , L
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
    Size: XL
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
    Size: XXL
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set: Semi-integrated, 1-1/8"
Brake rotor: Shimano RT26, 6-bolt
Brake Set: Shimano MT200 hydraulic disc
Rotor size: 180 mm/ 160 mm

Weight: M –  15.10 kg / 33.29 lb
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
