Mountain Cross 5
Specification
| WHEEL SIZE | 27.5“/584mm, 29"/622mm. SMALL: 27.5“/584mm |

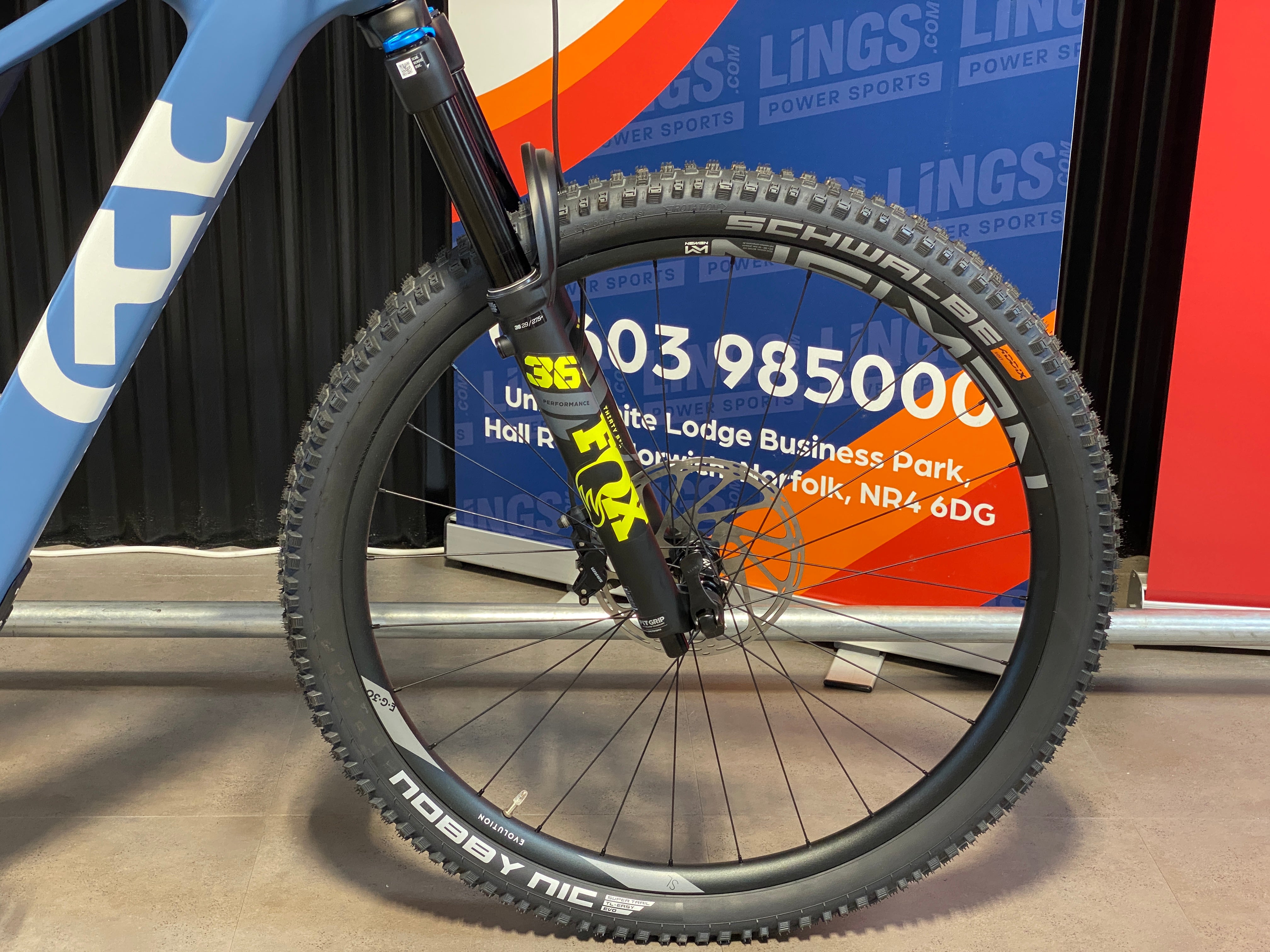

| FORK | Fox Float 36 Performance, Air, 150 mm, tapered |

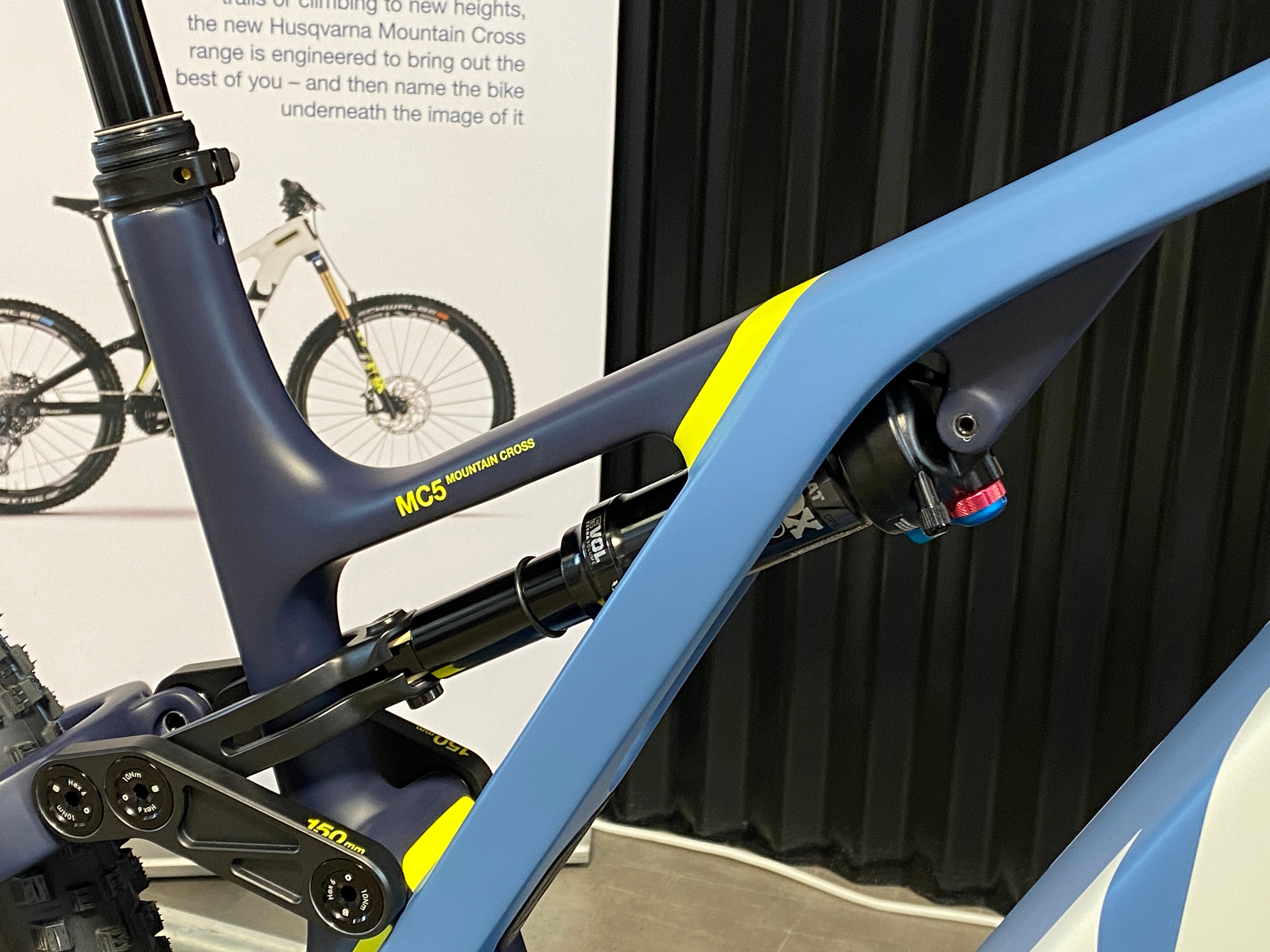

| SHOCK | Fox Float DPS Performance, Air, 230x62.5 mm |
| MOTOR | Shimano EP8, DU-EP800, 250 W, 85 Nm |
| BATTERY | Core S3+, 720 Wh, 36 V |
-
GEAR SHIFT LEVER: Shimano Deore, SL-M6100, Rapidfire Plus

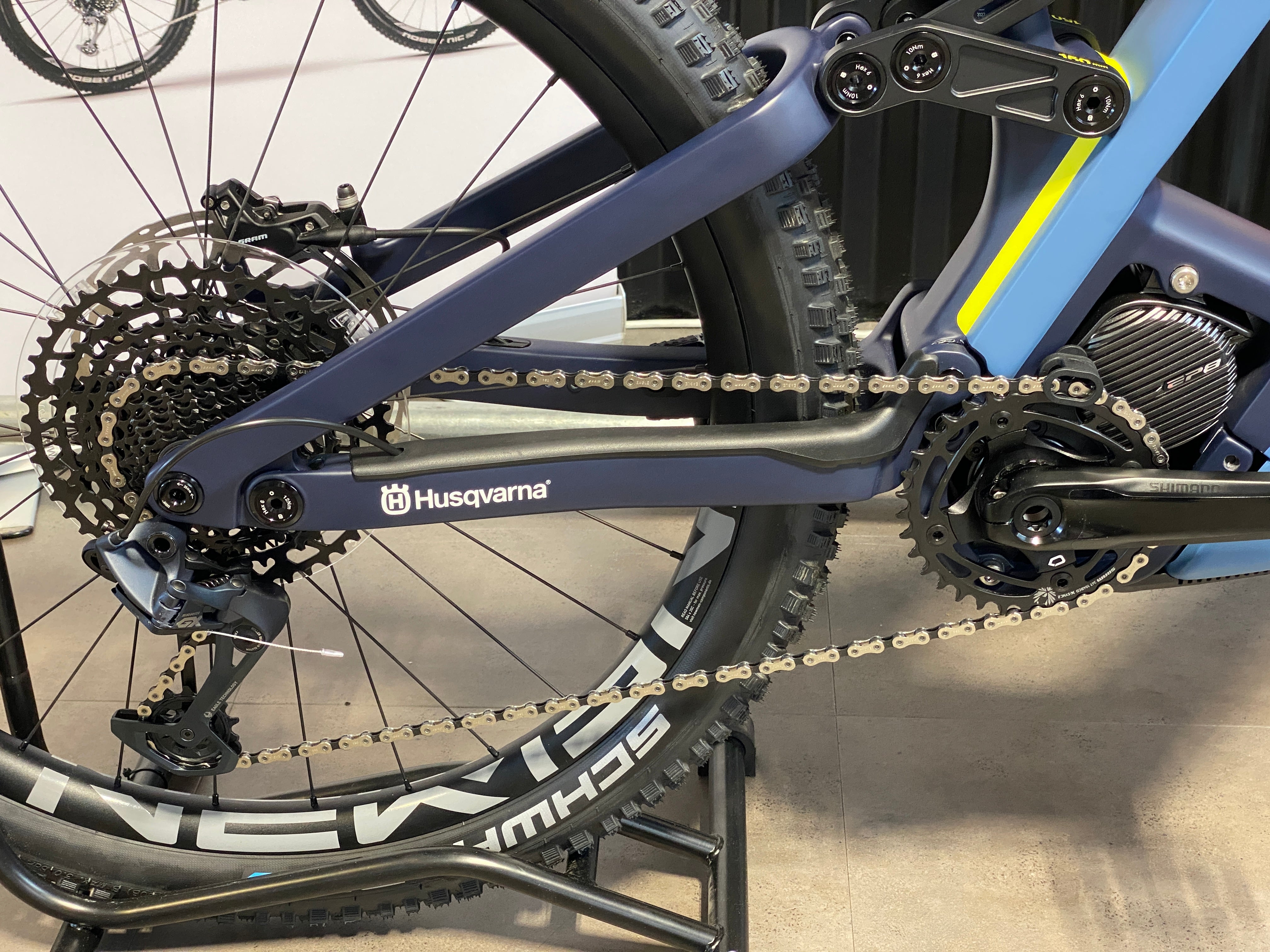

- REAR DERAILLEUR: Shimano Deore XT, RD-M8100, Shadow Plus, 12-S
- CASSETTE: Shimano CS-M6100, 10-51 T
- CHAIN: KMC e12S
- CHAIN RING: Husqvarna, Narrow Wide, 34 T
- CRANK ARM: Shimano FC-EM600, Aluminium forged, Shimano EP24
- PEDALS: Husqvarna, aluminium
- FRONT BRAKE: Shimano Deore, 4-piston, Hydraulic disc brake
- REAR BRAKE: Shimano Deore, 4-piston, Hydraulic disc brake
- STEM: Husqvarna 35, 0 °, Ahead

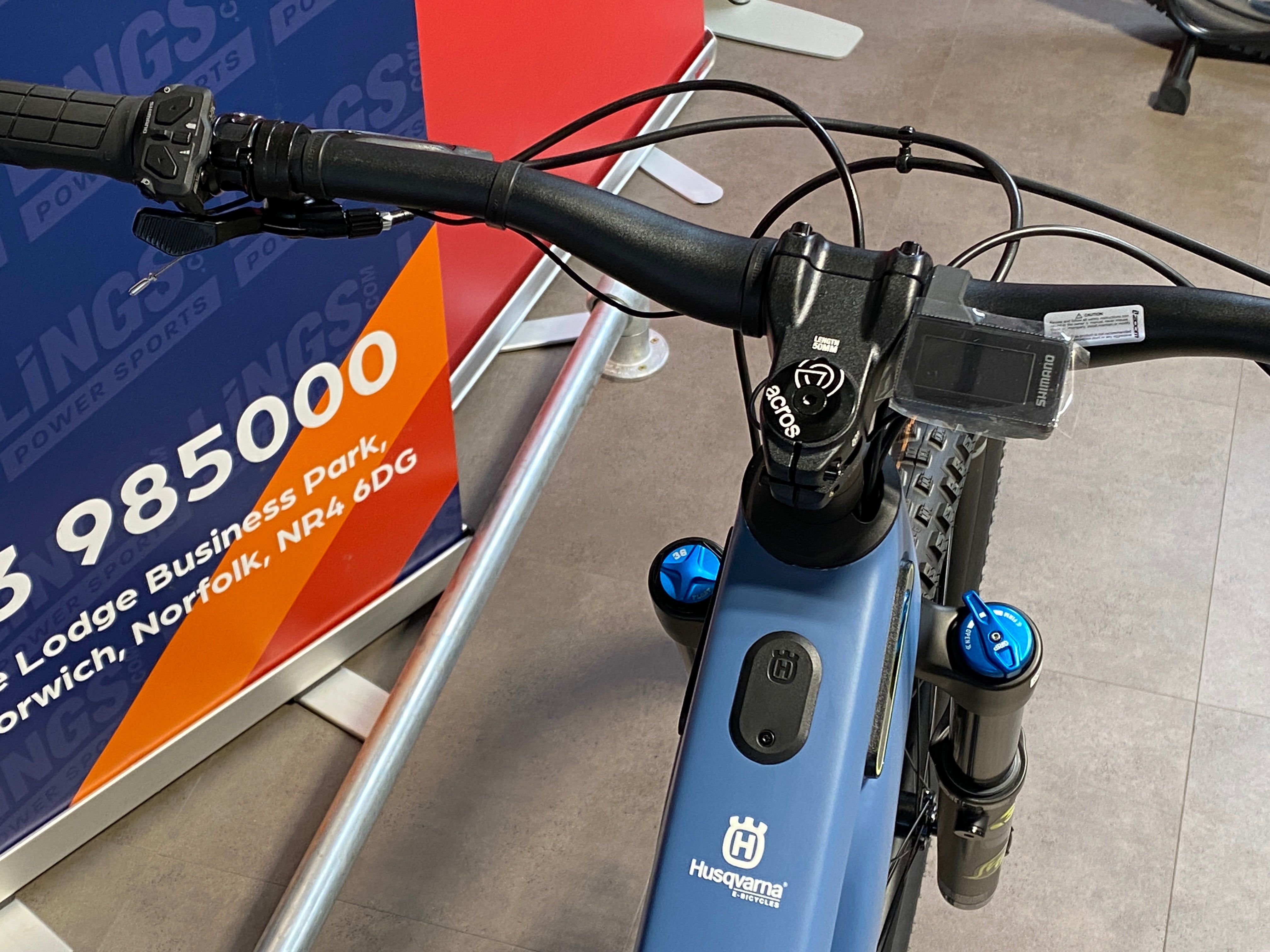

- HANDLEBAR: Husqvarna Riser 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
- GRIPS: Husqvarna MTB, Lock-on grips

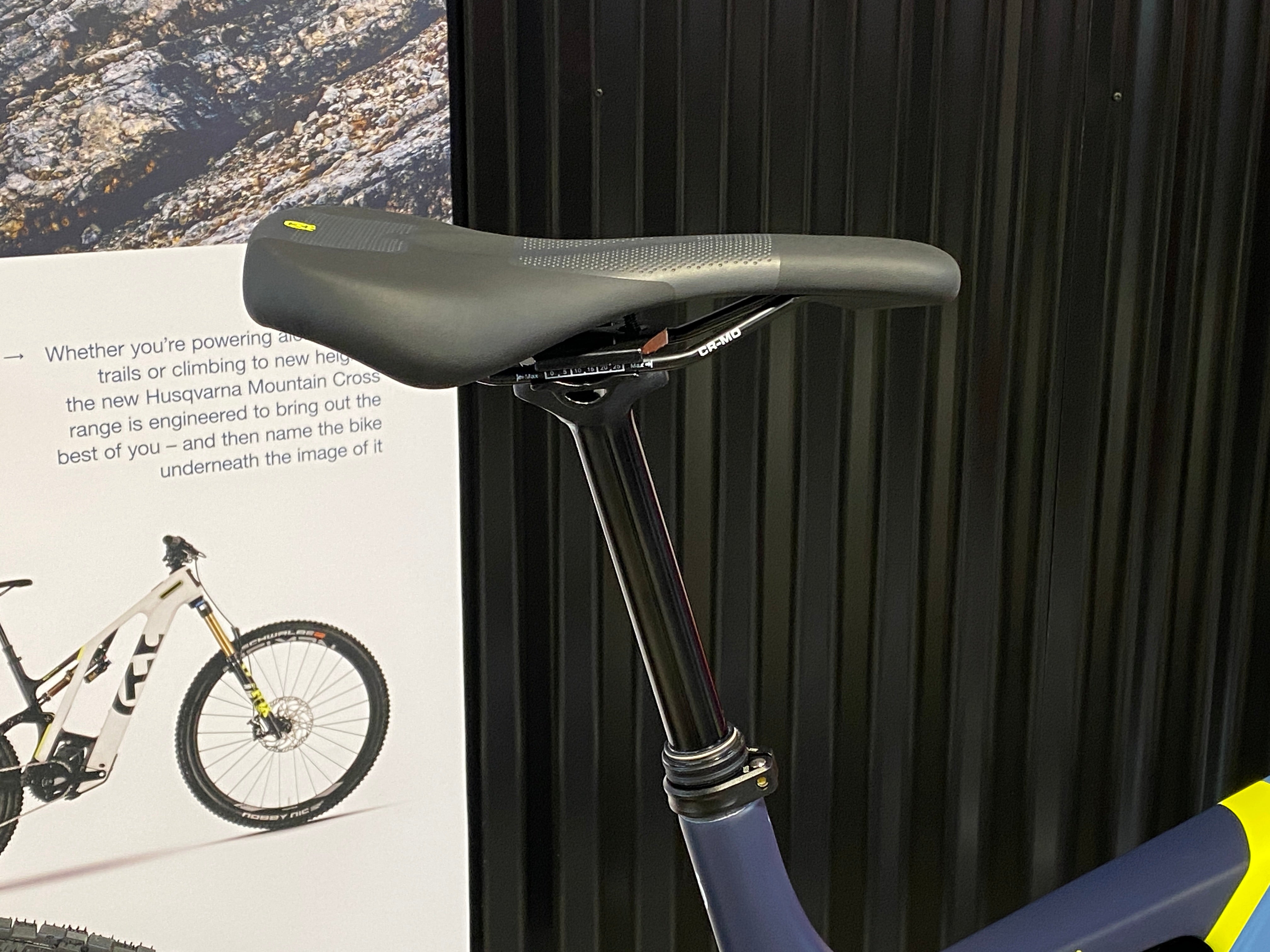

- SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
- SADDLE: Husqvarna MTB
- TYRES: Schwalbe Nobby Nic, Evolution, 62-622, 29x2.4. SMALL: Schwalbe Nobby Nic, Evolution, 65-584, 27.5x2.6. REAR: Schwalbe Nobby Nic, Evolution, 65-584, 27.5x2.6, Tubeless ready
- FRAME COLOR: Matte Blue
- CHARGER: Charger S, 4 A
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg

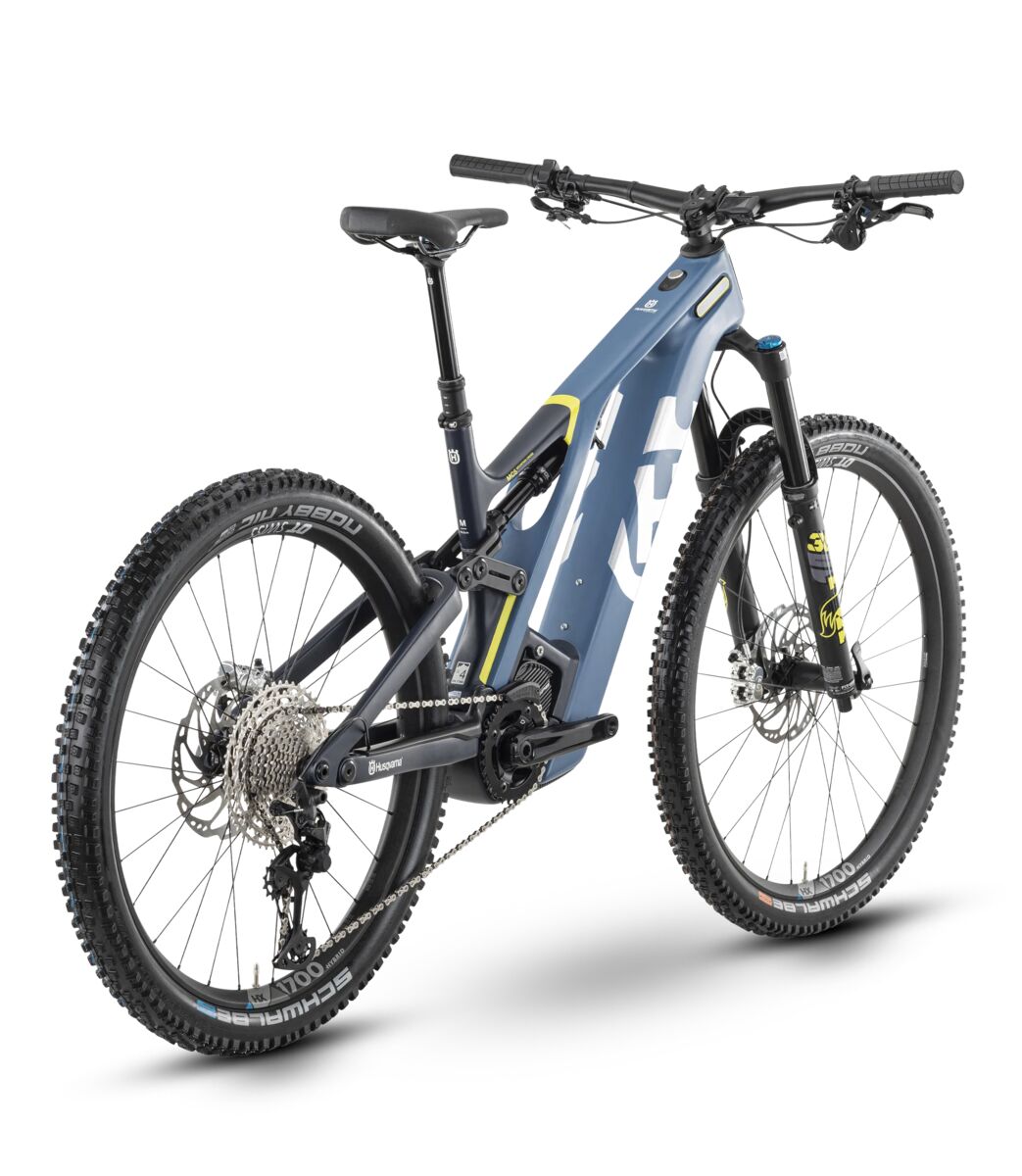

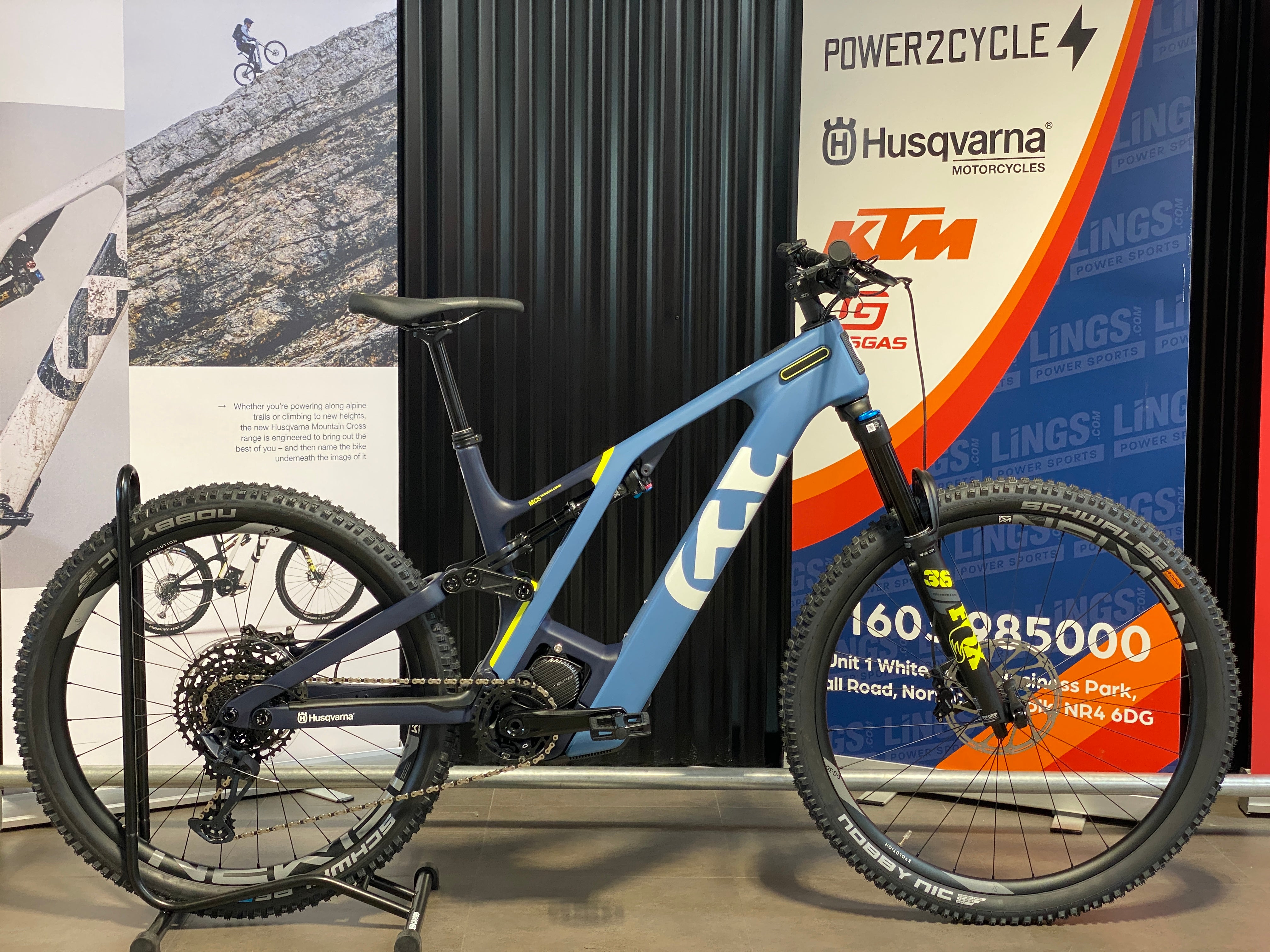

Indulge in riding mountain passes and high alpine terrain on the MC5. The carbon frame delivers impeccable support on the trails, both uphill and down. Together, the 150mm suspension travel, mixed wheel sizes, Shimano EP801 motor and Core S3+ 720Wh battery make it the ideal bike to pursue the unknown.
GEOMETRIES
| SIZE | S | M | L | XL |
| A - Top Tube Length | 567mm | 596mm | 626mm | 655mm |
| B - Seat Tube Length | 410mm | 435mm | 460mm | 485mm |
| C - Seat Tube Angle | 77.1° | 77° | 76.9° | 76.8° |
| D - Head Tube Length | 130mm | 115mm | 130mm | 145mm |
| E - Steering Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
| G - Wheel Base | 1184mm | 1216mm | 1247mm | 1279mm |
| I - BB-Drop | 18mm | 18mm | 18mm | 18mm |
| K - Stack | 619mm | 633mm | 646mm | 660mm |
| L - Reach | 425mm | 450mm | 475mm | 500mm |
