Description

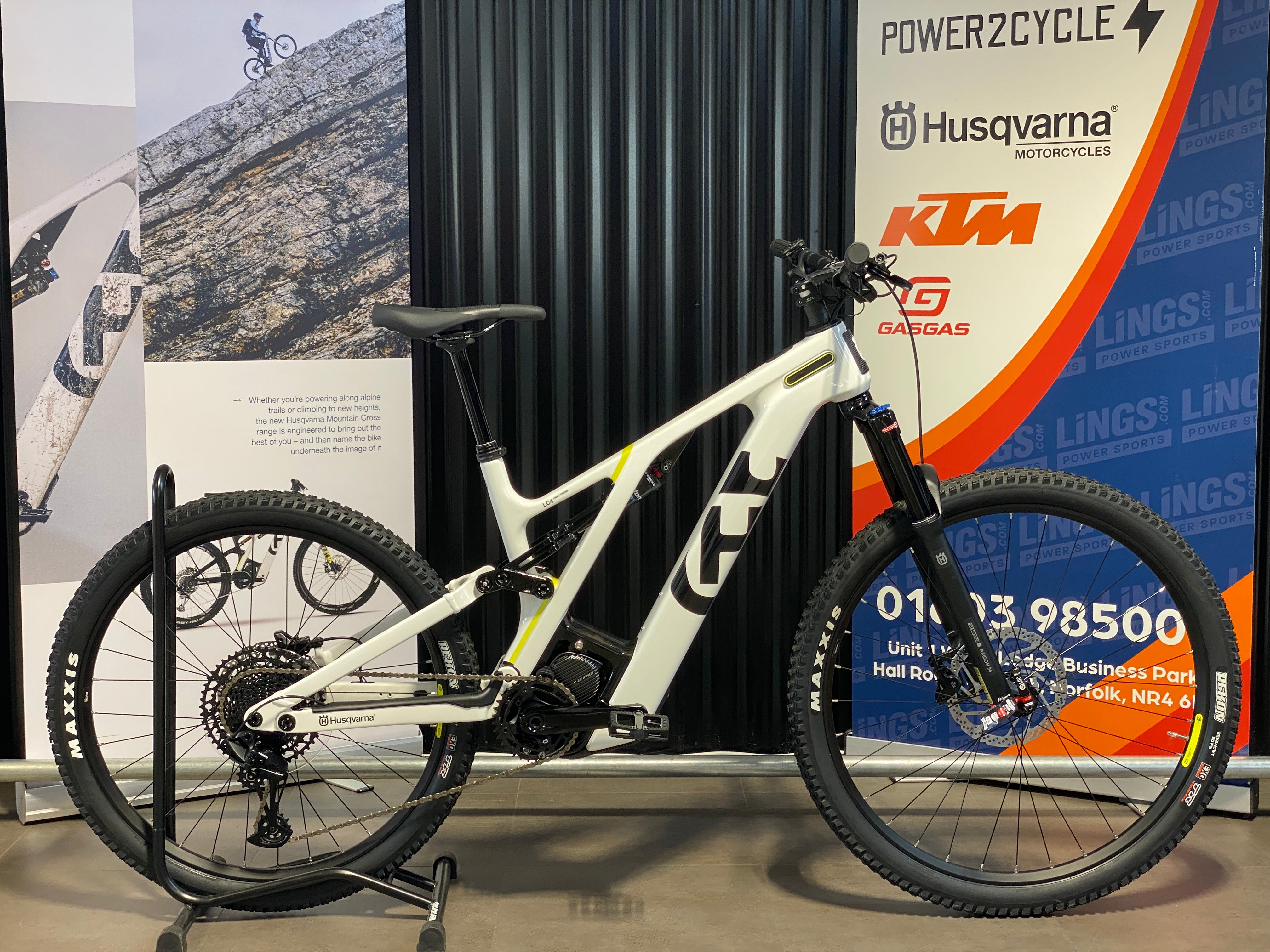

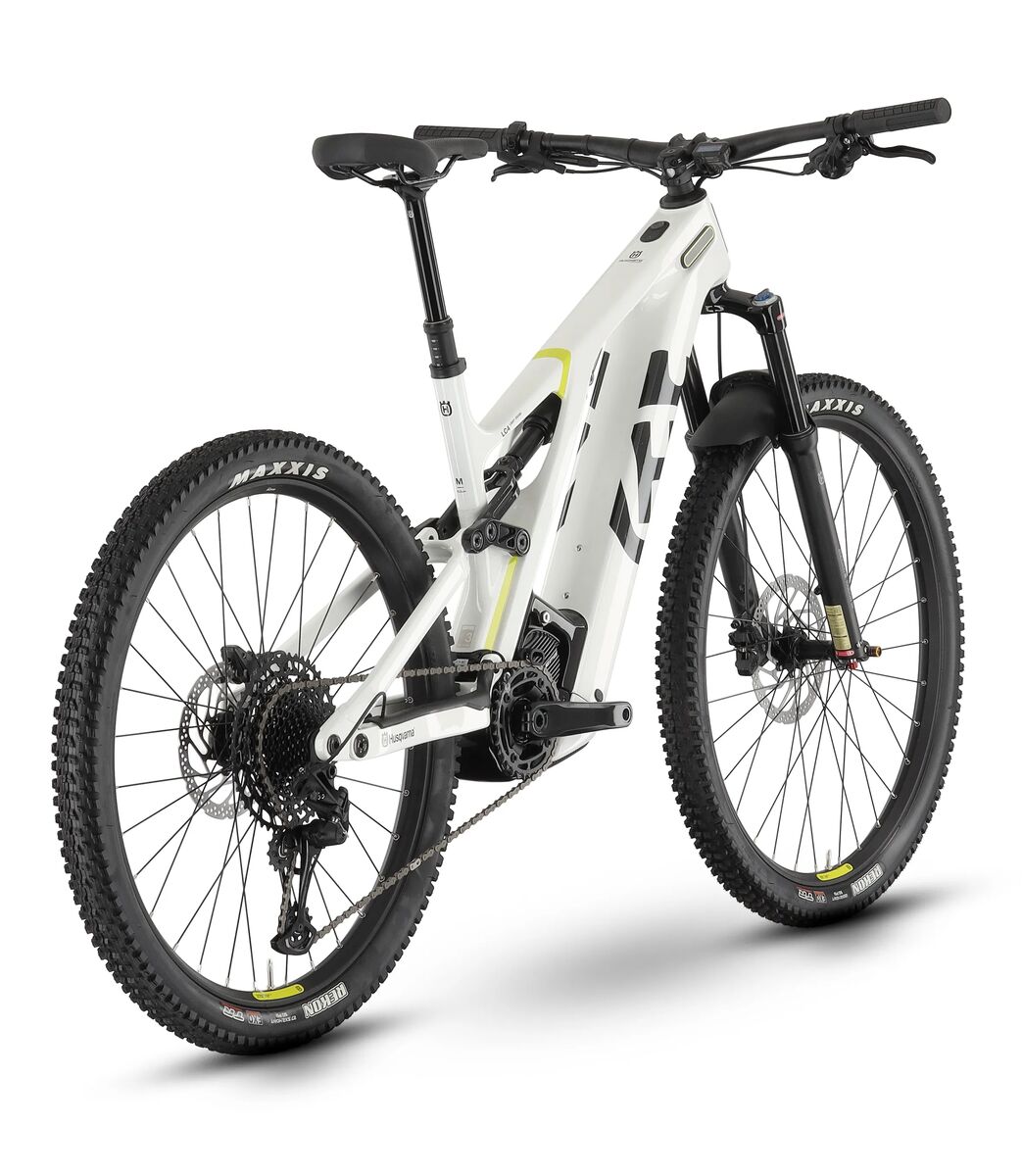

Light Cross 4
Explore your surroundings and switch up your rides on the Light Cross 4. Short-travel trail fun comes naturally on the LC4, thanks to its carbon main frame and aluminium rear triangle. The new Shimano EP801 motor benefits from passive cooling thanks to its upright design. Mixed wheels sizes, 130/120mm SR SUNTOUR suspension and a Core S3+ 720Wh complement a quality build spec.
Specification
MOTOR: Shimano EP8, DU-EP801, 250 W, 85 Nm
BATTERY: Core S3+, 720 Wh, 36 V
FORK: SR SUNTOUR Raidon34 Boost LOR, Air, 130 mm, tapered

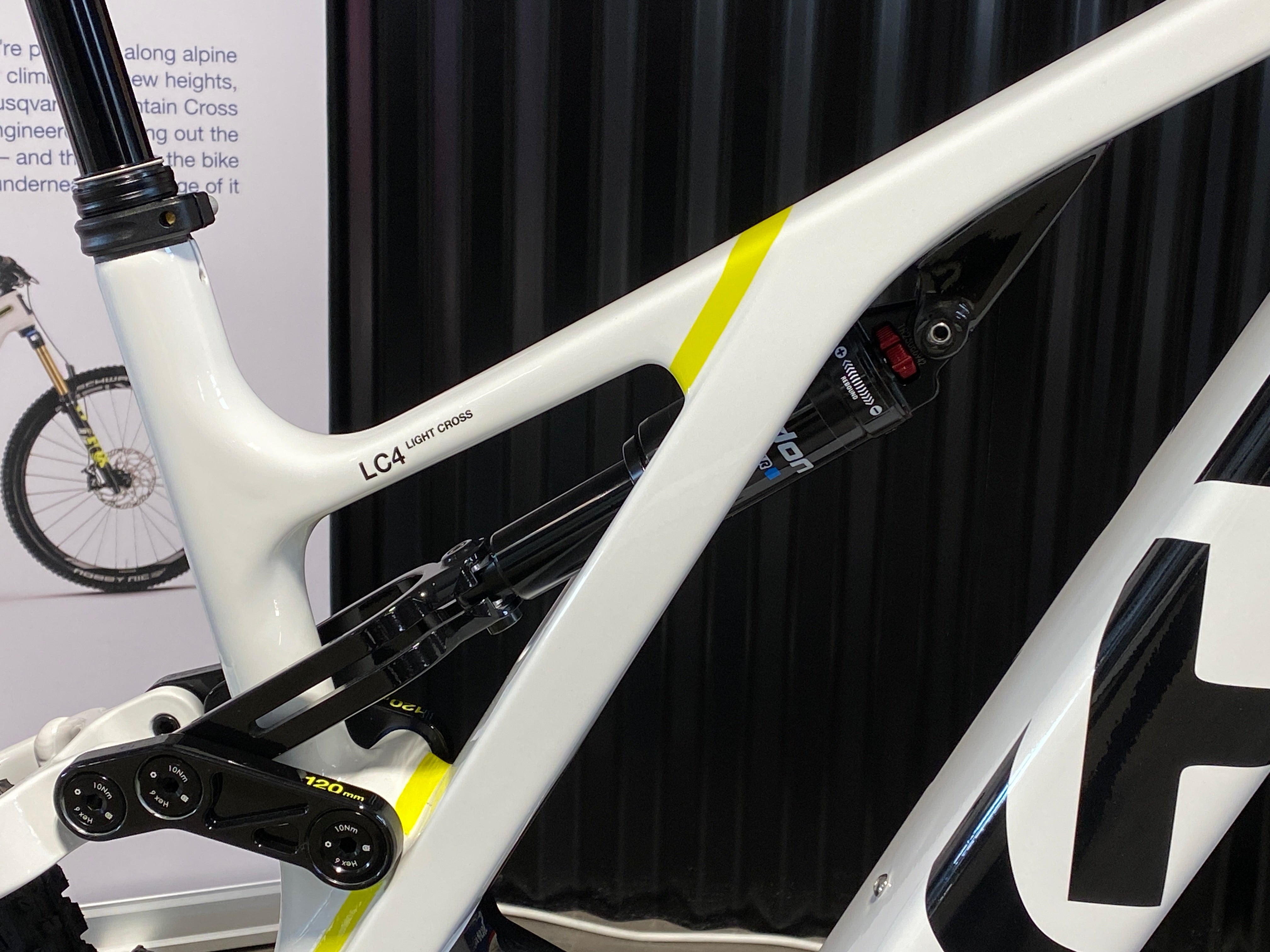

SHOCK: SR SUNTOUR Raidon R, Air, 190x45 mm

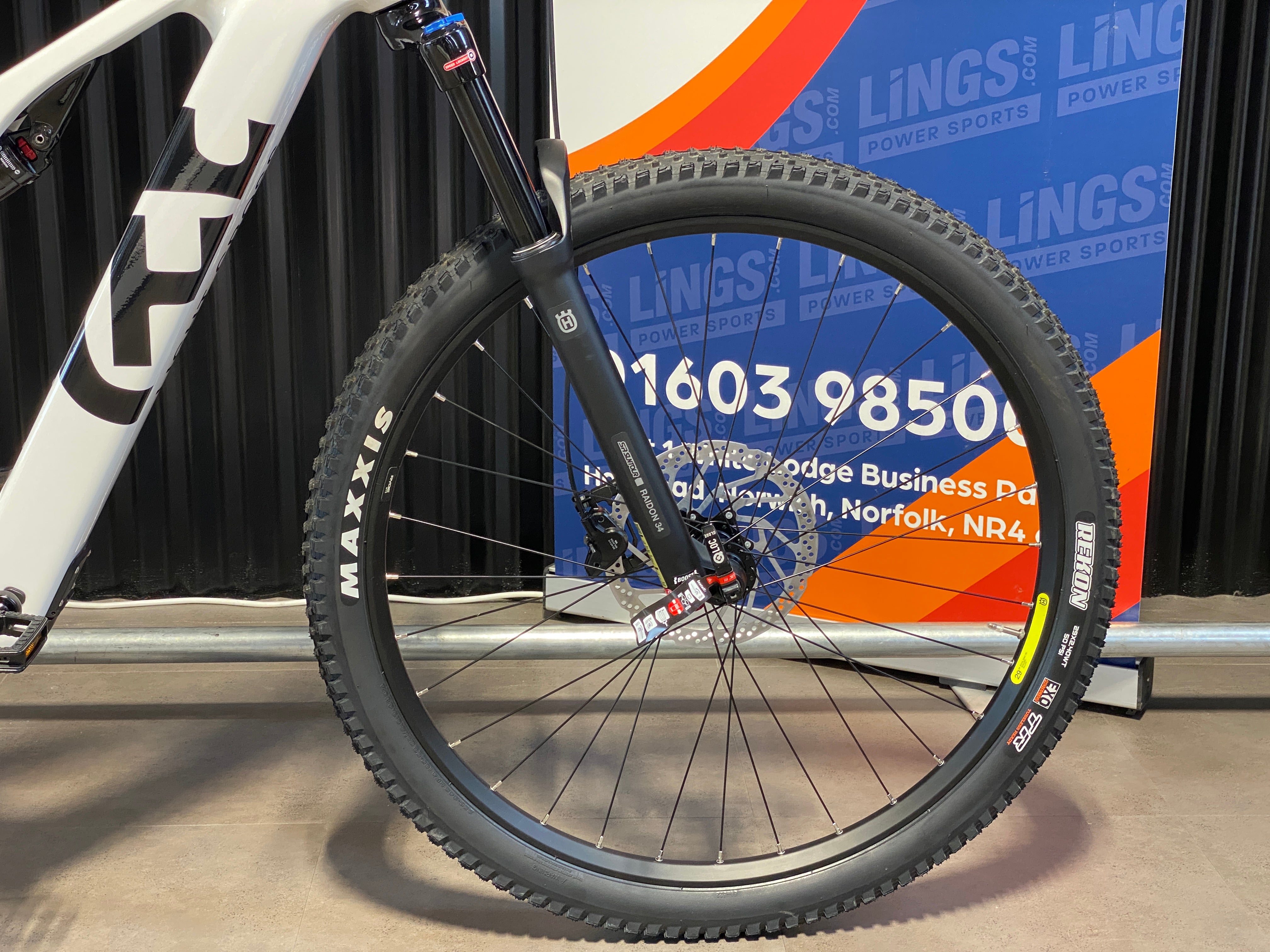

WHEELS: Ryde Disc30 (29", 27.5")
TYRES: Maxxis Rekon 2.4 (29", 27.5")

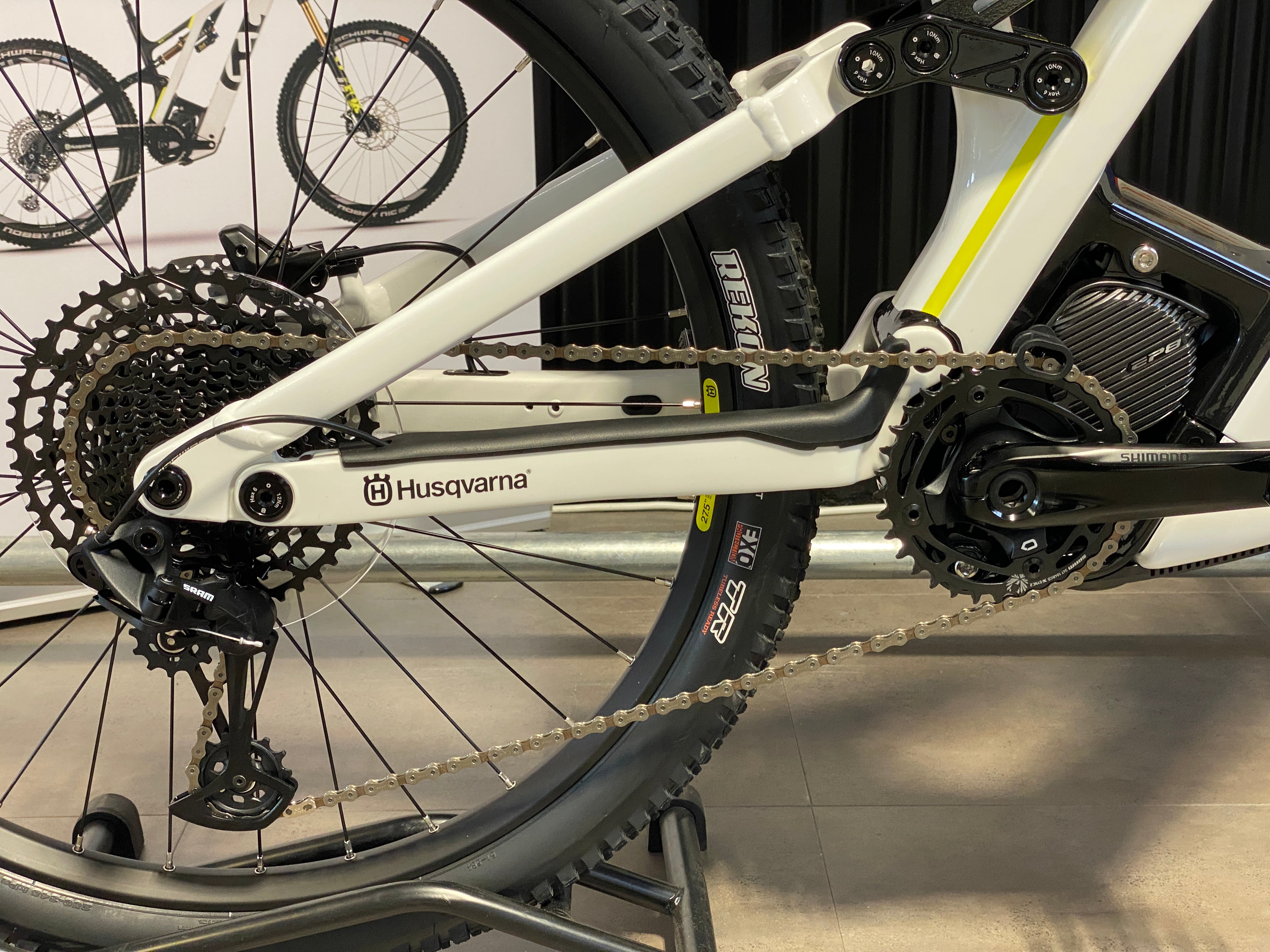

DERAILLEUR: SRAM SX Eagle 12-S
SHIFTER: SRAM SX Eagle, Single Click
CHAIN: SRAM SX Eagle
CASSETTE: SRAM PG-1210, 11-50 T
BRAKES: Shimano BR-MT410, 2-piston
CRANKSET: Shimano FC-EM900, SRAM X-Sync Eagle 34 T
SADDLE: Husqvarna MTB

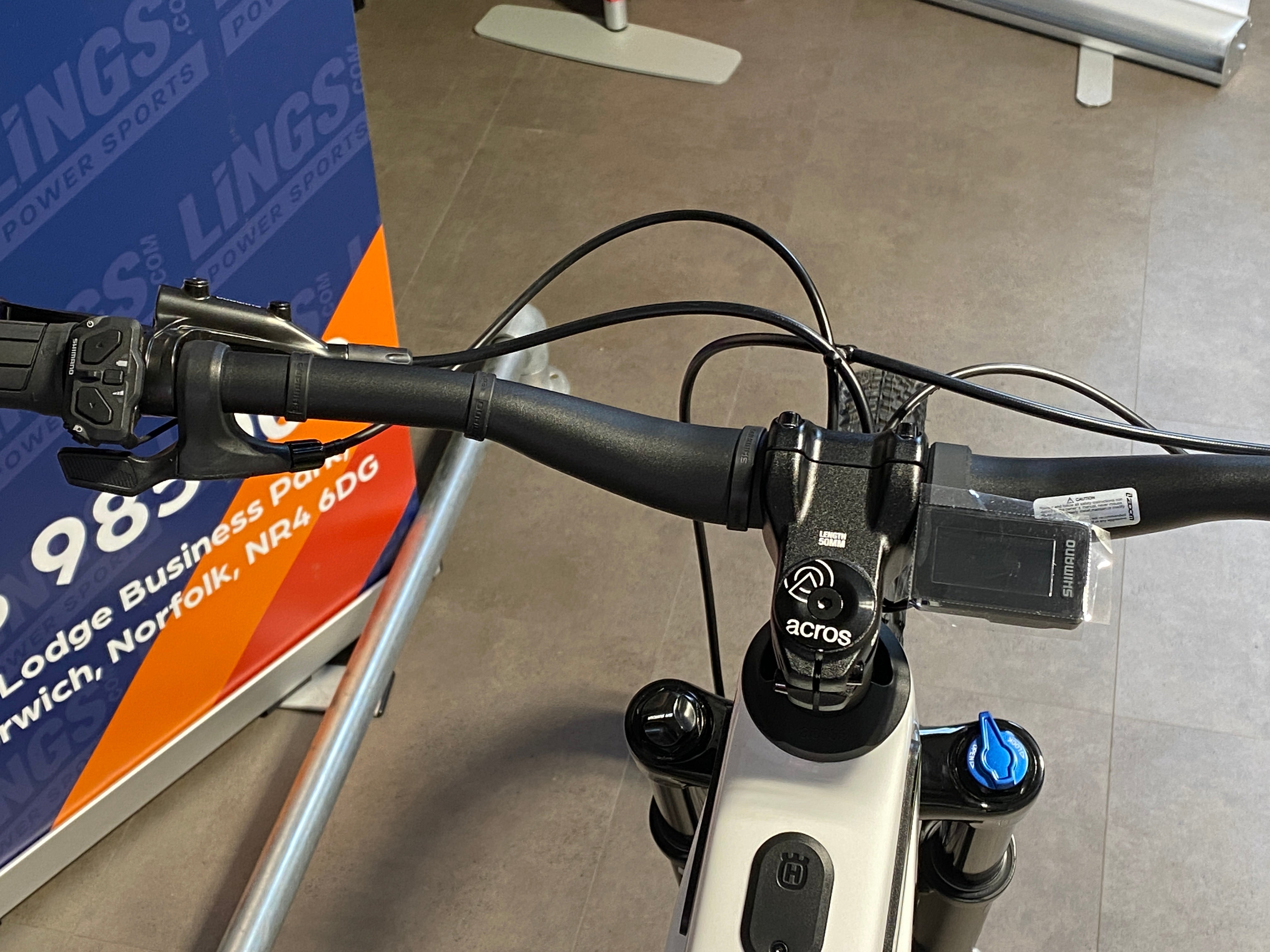

BARS: Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
STEM: Husqvarna 35, 0 °, Ahead
PEDDLES: Husqvarna, aluminium
GRIPS: Husqvarna MTB, Lock-on grips

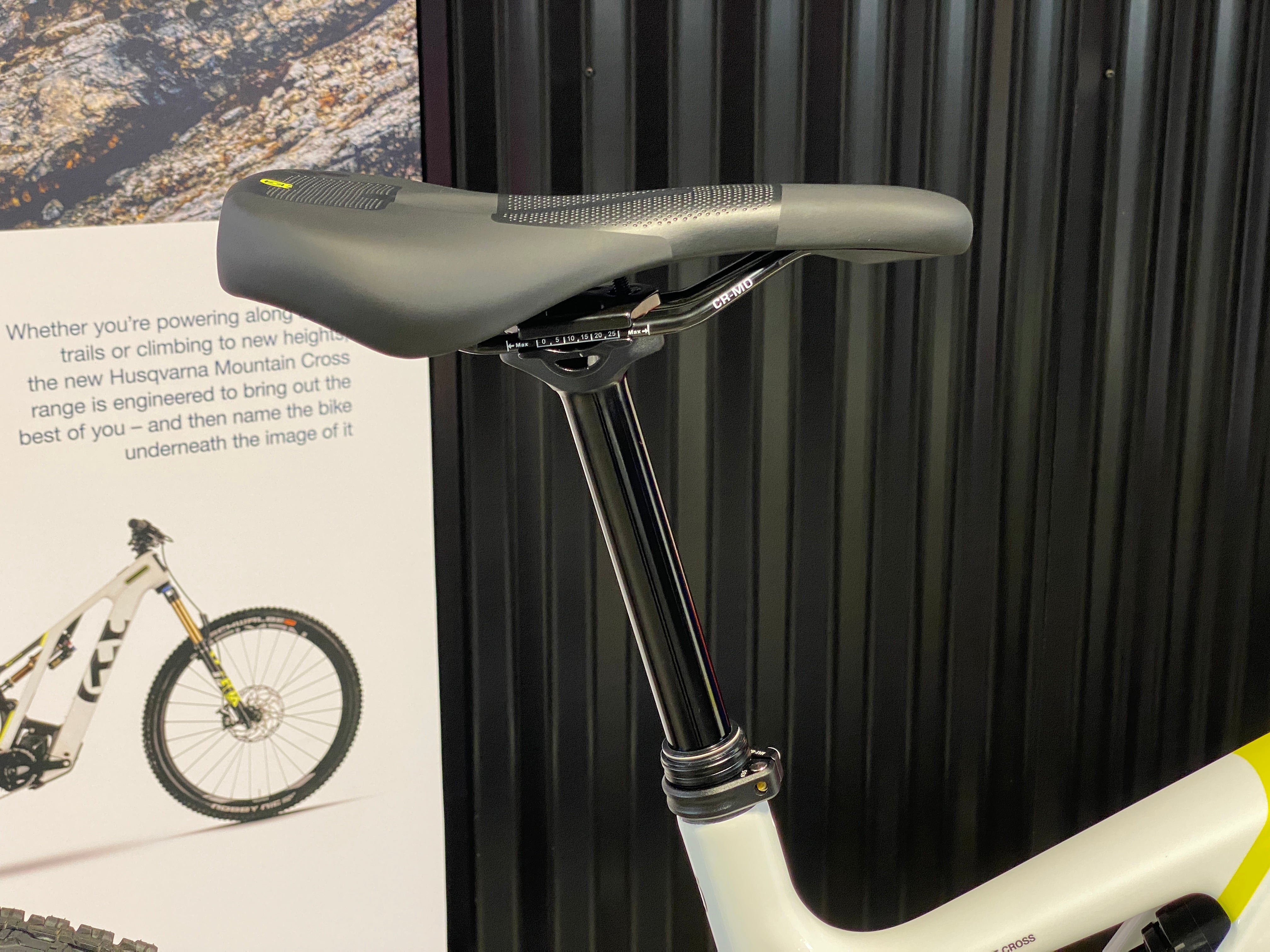

SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
GEOMETRIES
|
Bike Size |
Small |
Medium |
Large |
X-Large |
|
Rider height |
5'3" - 5'6" |
5'7" - 5'9" |
5'10" - 6'0" |
6'1" - 6'4" |
| SIZE | S | M | L | XL |
| A - Top Tube Length | 562mm | 593mm | 625mm | 651mm |
| B - Seat Tube Length | 410mm | 435mm | 460mm | 485mm |
| C - Seat Tube Angle | 78.6° | 78.3° | 78.2° | 78° |
| D - Head Tube Length | 130mm | 115mm | 130mm | 145mm |
| E - Steering Angle | 66° | 66.5° | 66.5° | 66.5° |
| F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
| G - Wheel Base | 1174mm | 1208mm | 1239mm | 1270mm |
| I - BB-Drop | 23mm | 23mm | 23mm | 23mm |
| K - Stack | 607mm | 623mm | 636mm | 650mm |
| L - Reach | 428mm | 463mm | 488mm | 513mm |
