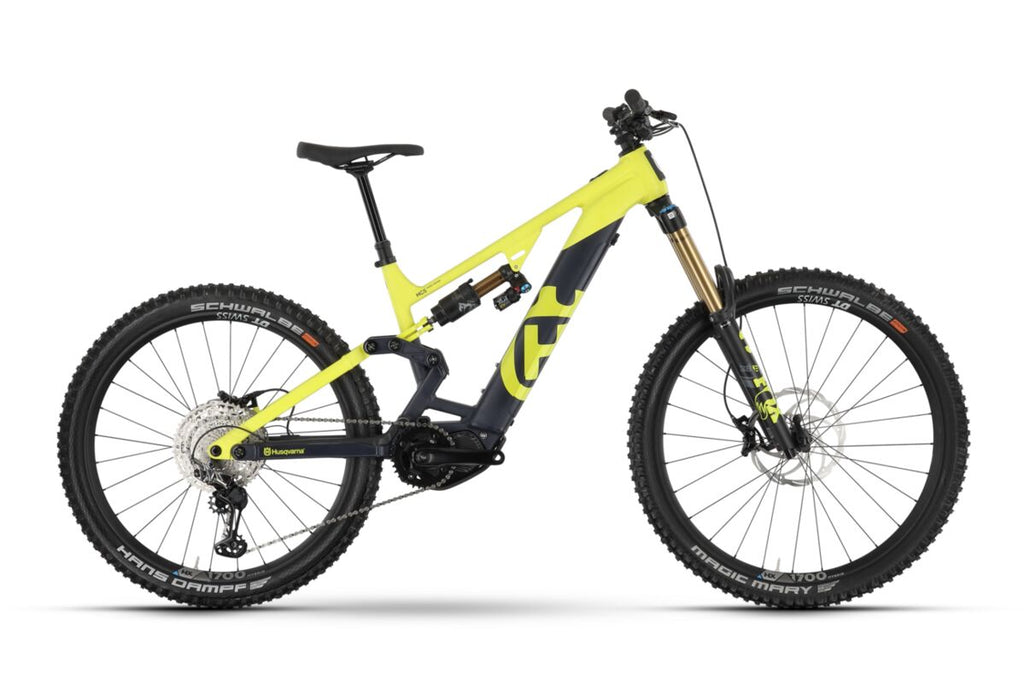

Husqvarna Hard Cross 5.0 S
Specification
WHEEL SIZE | 27.5“/584mm, 29"/622mm |
FORK | FOX Float 38 Factory, Grip 2, E-Bike+, Air, 180 mm, tapered |
SHOCK | FOX Float X2 Factory, Air, 230x65 mm |
MOTOR | Shimano EP6, DU-EP600, 250 W, 85 Nm |
BATTERY | Core S2+, 720 Wh, 36 V |
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg
- REAR DERAILLEUR: SRAM X01 Eagle, 12-S
- GEAR SHIFT LEVER: SRAM X01 Eagle, Single Click
- CASSETTE: SRAM XG-1275, 10-50 T
- CHAIN: SRAM X01 Eagle
- CHAIN RING: SRAM X-Sync Eagle, 34 T
- CRANK ARM: Shimano FC-EM900, Aluminum forged, Shimano EP24
- PEDALS: Husqvarna, aluminium
- FRONT BRAKE: Magura MT7, 4-piston, Hydraulic disc brake
- REAR BRAKE: Magura MT7, 4-piston, Hydraulic disc brake
- STEM: Husqvarna 35, 0 °, Ahead
- HANDLEBAR: Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
- GRIPS: Husqvarna MTB, Lock-on grips
- SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
- SADDLE: Husqvarna MTB
- FRAME COLOR: yellow / blue
-
TYRES: Schwalbe Magic Mary, Evolution, 62-622, 29x2.4 REAR: Schwalbe Hans Dampf, Evolution, 65-584, 27.5x2.6, Tubeless ready
- WHEELSET: DT Swiss HX 1700 SPLINE, Tubeless ready, 6-hole, 15x110/12x148 mm, thru axle
-
CHARGER: Charger S, 4 A
Introducing the truly intuitive HC5 – designed to deliver performance professional riders expect. With a dignified amount of power punched in, be lifted by the noticeable boost of torque when required – making the thrill of up and downhill rides, more exhilarating than ever.
GEOMETRIES
SIZE | S | M | L | XL |
A - Top Tube Length | 574mm | 604mm | 632mm | 661mm |
B - Seat Tube Length | 410mm | 435mm | 460mm | 485mm |
C - Seat Tube Angle | 77.4° | 77.3° | 77.2° | 77.2° |
D - Head Tube Length | 100mm | 115mm | 130mm | 145mm |
E - Steering Angle | 64.5° | 64.5° | 64.5° | 64.5° |
F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
G - Wheel Base | 1215mm | 1248mm | 1277mm | 1309mm |
I - BB-Drop | 18mm | 18mm | 18mm | 18mm |
K - Stack | 647mm | 661mm | 674mm | 687mm |
L - Reach | 430mm | 455mm | 480mm | 505mm |
