Description
Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!
SPECS:

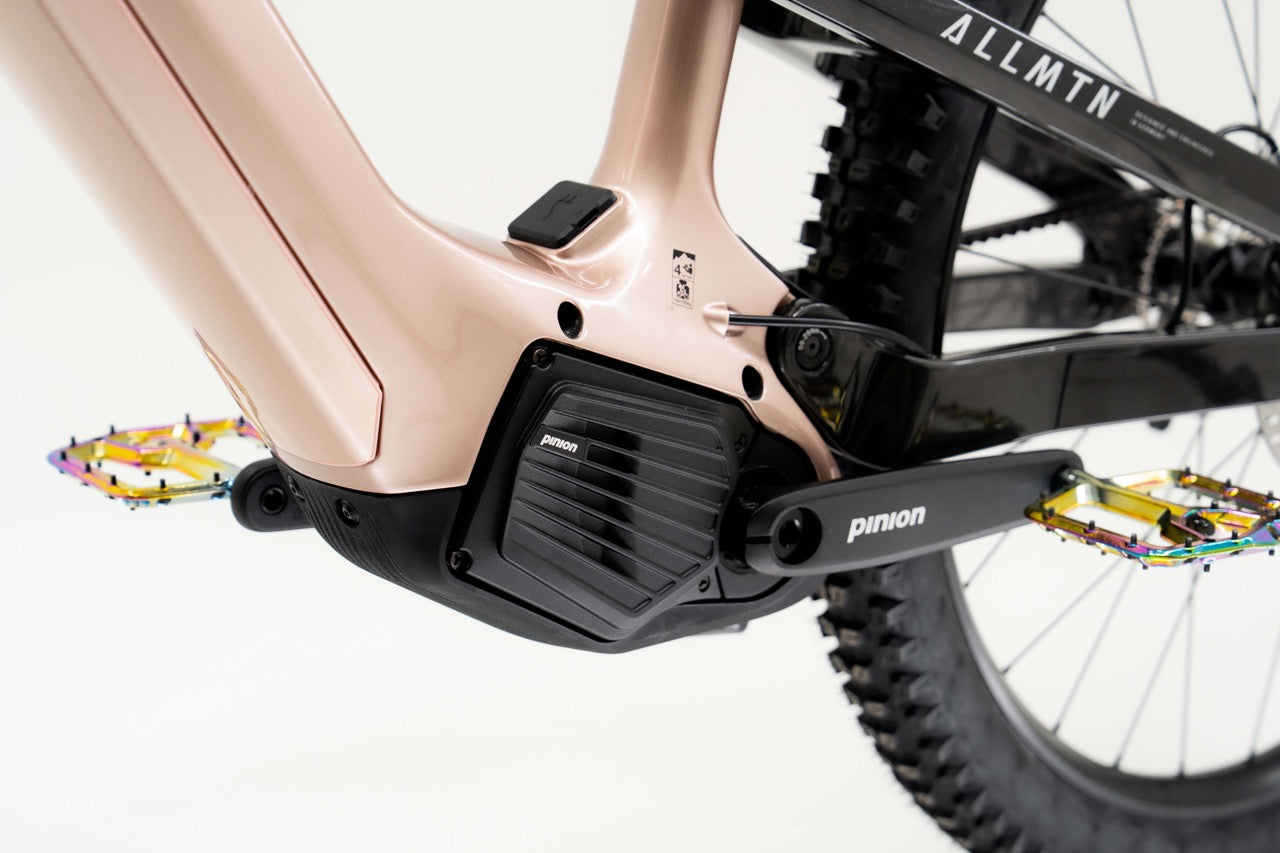

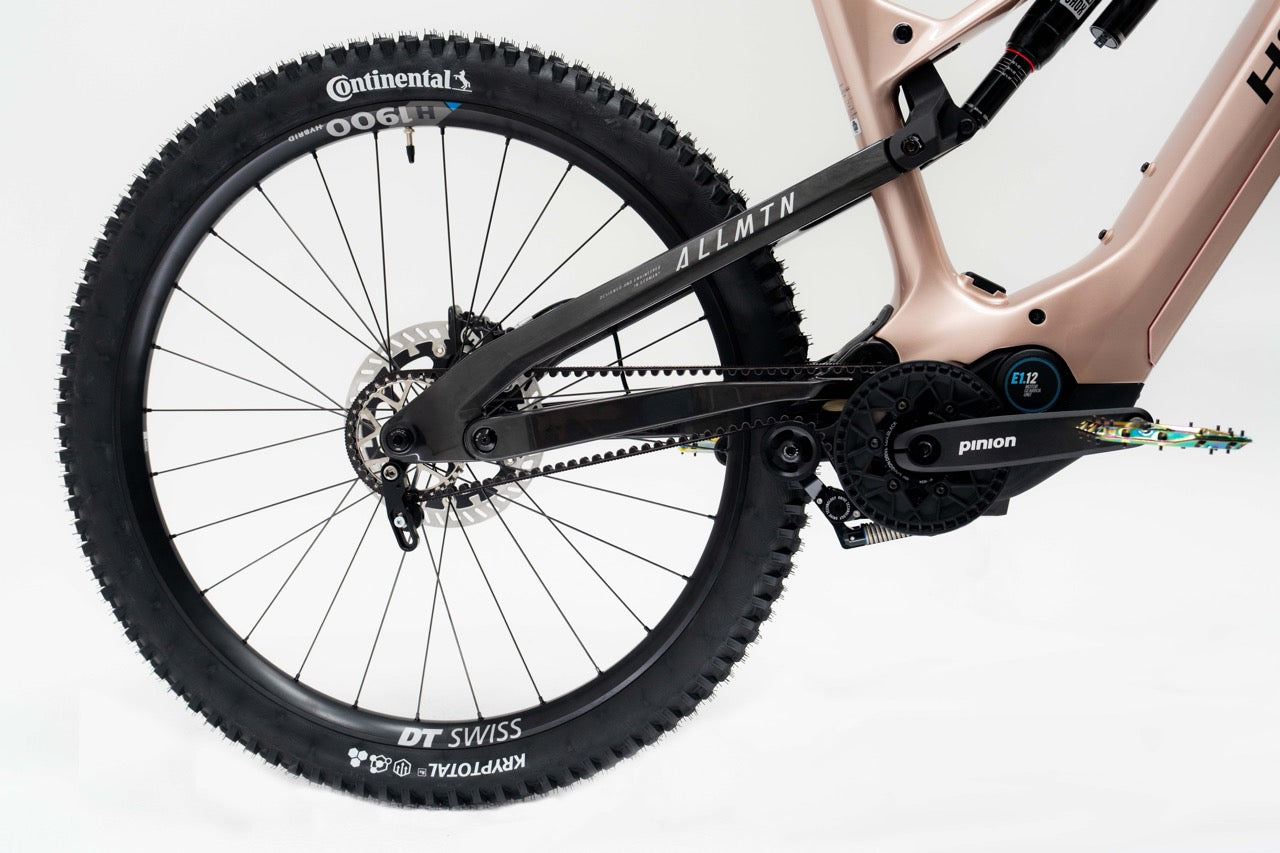

MOTOR: Pinion E1.12 Motor Gearbox Unit
BATTERY: Pinion InTube 800Wh

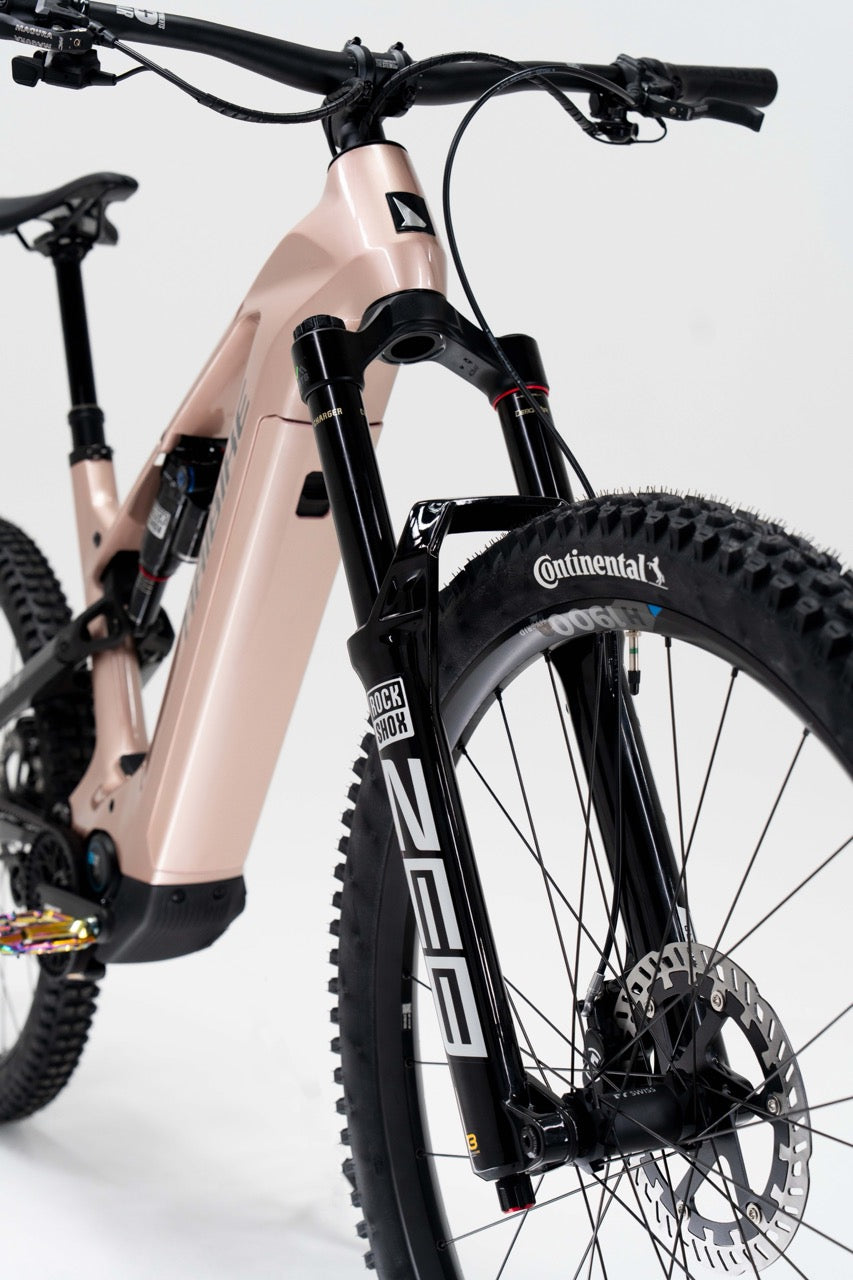

FORK: RockShox ZEB Ultimate forks
SHOCK: RockShox Super Deluxe Ultimate
WHEELS: WTB ST i30 / i35 wheelset
TYRES: Continental Kryptotal-Fr, Enduro Soft, foldable skin SL
GEARING: Pinion Gearbox
SHIFTER: Pinion Triggershift Smart Shift TE1 E-Trigger
BELT: Gates Belt Carbon Drive Belt CDX, 120T
CASSETTE: Gates Carbon Drive CDX Sprocket, 9 Spline
BRAKES: Magura MT5 brakes
CRANKSET: Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165
SADDLE: Selle Royal Vivo 1216HRN
BARS: Haibike Flat bar TheBar++ Dia. 31.8 mm
GRIPS: XLC VLG-1751D2
Frame size |
S 40
|
M 42
|
L 44
|
XL 49
|
---|---|---|---|---|
Wheel Size | 2927.5" | 2927.5" | 2927.5" | 2927.5" |
Body height (cm) | 158-170 | 168-179 | 177-189 | 187-199 |
Seattube length (mm) | 400 | 420 | 440 | 490 |
Toptube length (mm) | 560 | 592 | 624 | 656 |
Headtube length (mm) | 100 | 110 | 120 | 130 |
Seattube angle (deg) | 77.7 | 77.7 | 77.7 | 77.6 |
Headtube angle (deg) | 64 | 64 | 64 | 64 |
Stack (mm) | 617 | 626 | 635 | 650 |
Reach (mm) | 425 | 455 | 485 | 513 |
BB Drop (mm) | 10 | 10 | 10 | 10 |
Wheelbase (mm) | 1203 | 1237 | 1271 | 1304 |
Chainstay length (mm) | 440 | 440 | 440 | 440 |
Please note, occasionally, manufacturers may change the specification without notice.
