Description
More fun, more flow – uphill and downhill. With our new ALLMTN CF 10 TRN/IQ, you’ll experience all-mountain riding in its purest form. Equipped with the innovative Pinion Motor.Gearbox.Unit (MGU), this full-suspension eMTB offers the perfect balance of power and control. The drive unit combines the motor and gearing for an entirely new riding feel. Plus, the smart Auto-Shift technology ensures you’re always in the right gear – and in the flow. That’s not all: the lightweight carbon frame, short chainstays and 160mm of travel front and rear make this bike an agile trail surfer. And with the 800Wh battery, you’re ready for long mountain adventures filled with maximum riding fun and unbeatable flow.
SPECS:

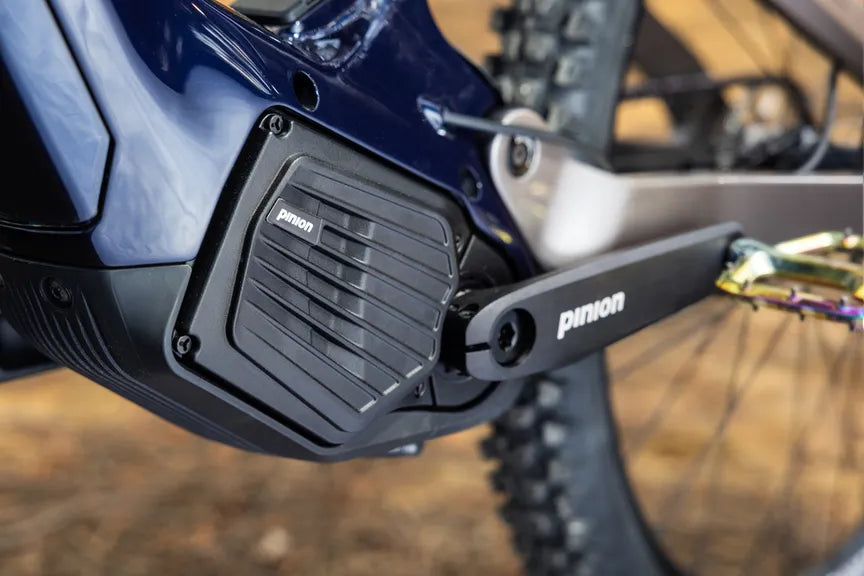

MOTOR: Pinion E1.12 Motor Gearbox Unit
BATTERY: Pinion InTube 800Wh
FORK: RockShox Psylo Gold RC
SHOCK: RockShox Deluxe Select
WHEELS: WTB ST i30 / i35
TYRES: Continental Kryptotal-Fr, Enduro Soft, foldable skin SL
GEARING: Pinion Gearbox
SHIFTER: Pinion Triggershift Smart Shift TE1 E-Trigger

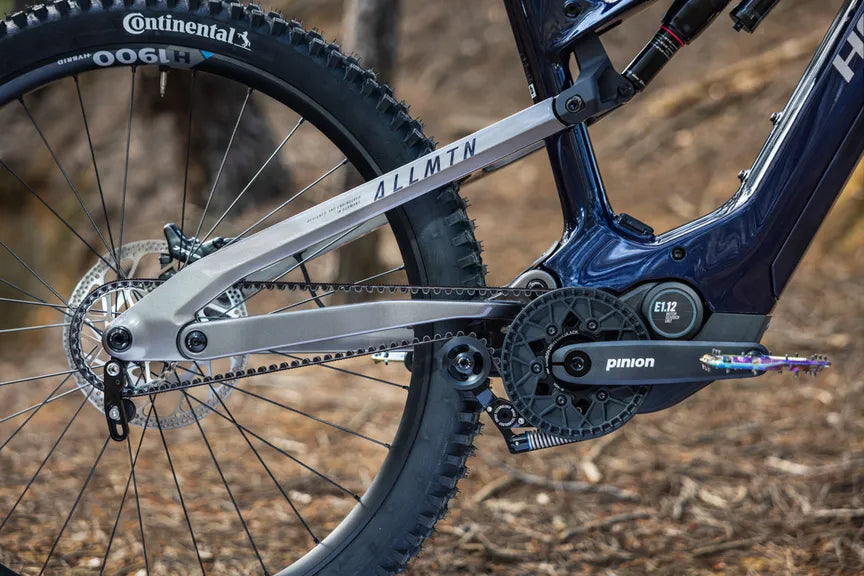

BELT: Gates Belt Carbon Drive Belt CDX, 120T
CASSETTE: Gates Carbon Drive CDX Sprocket, 9 Spline
BRAKES: TRP Slate T4 brakes
CRANKSET: Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165
SADDLE: Selle Royal Vivo 1216HRN
BARS: Haibike Flat bar TheBar++ Dia. 31.8 mm
GRIPS: XLC VLG-1751D2
Frame size |
S 40
|
M 42
|
L 44
|
XL 49
|
---|---|---|---|---|
Wheel Size | 2927.5" | 2927.5" | 2927.5" | 2927.5" |
Body height (cm) | 158-170 | 168-179 | 177-189 | 187-199 |
Seattube length (mm) | 400 | 420 | 440 | 490 |
Toptube length (mm) | 560 | 592 | 624 | 656 |
Headtube length (mm) | 100 | 110 | 120 | 130 |
Seattube angle (deg) | 77.7 | 77.7 | 77.7 | 77.6 |
Headtube angle (deg) | 64 | 64 | 64 | 64 |
Stack (mm) | 617 | 626 | 635 | 650 |
Reach (mm) | 425 | 455 | 485 | 513 |
BB Drop (mm) | 10 | 10 | 10 | 10 |
Wheelbase (mm) | 1203 | 1237 | 1271 | 1304 |
Chainstay length (mm) | 440 | 440 | 440 | 440 |
