Description

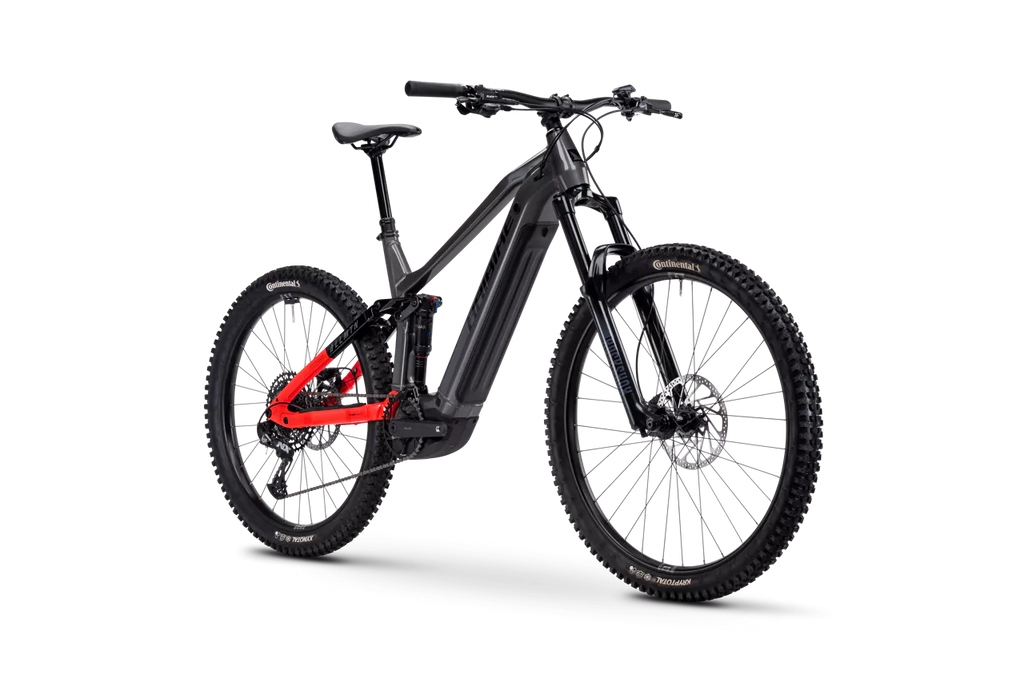

SILVER/RED/BLACK - GLOSS
Uphill and downhill ePerformance. Incredible versatility empowers beginners and pros. Choose yours to fly safely and playfully over any trail with its all new alloy frame and the latest GEN5 Bosch drive unit the ALLMTN is ready for anything the mountains

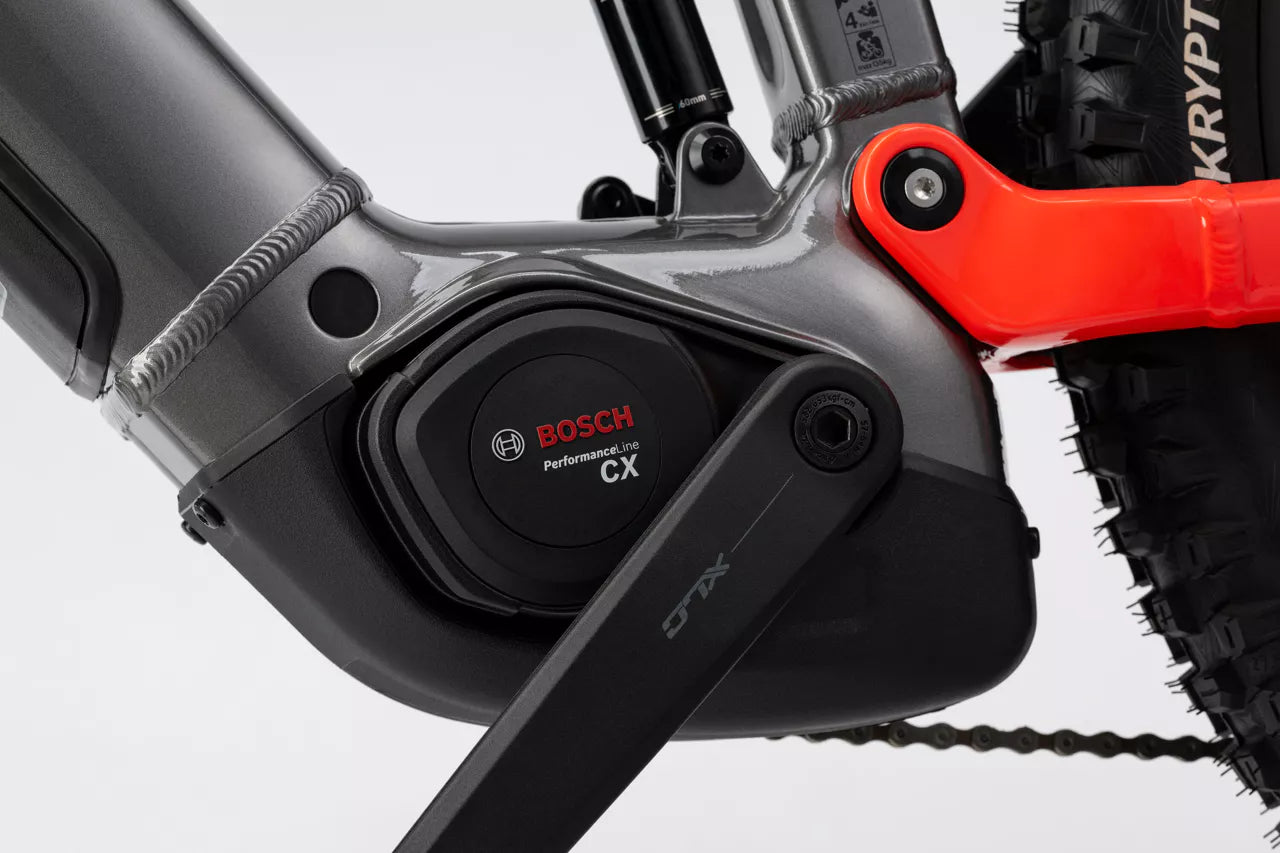

MOTOR: Bosch Performance Line CX Gen 5
BATTERY: Bosch InTube 800 Wh

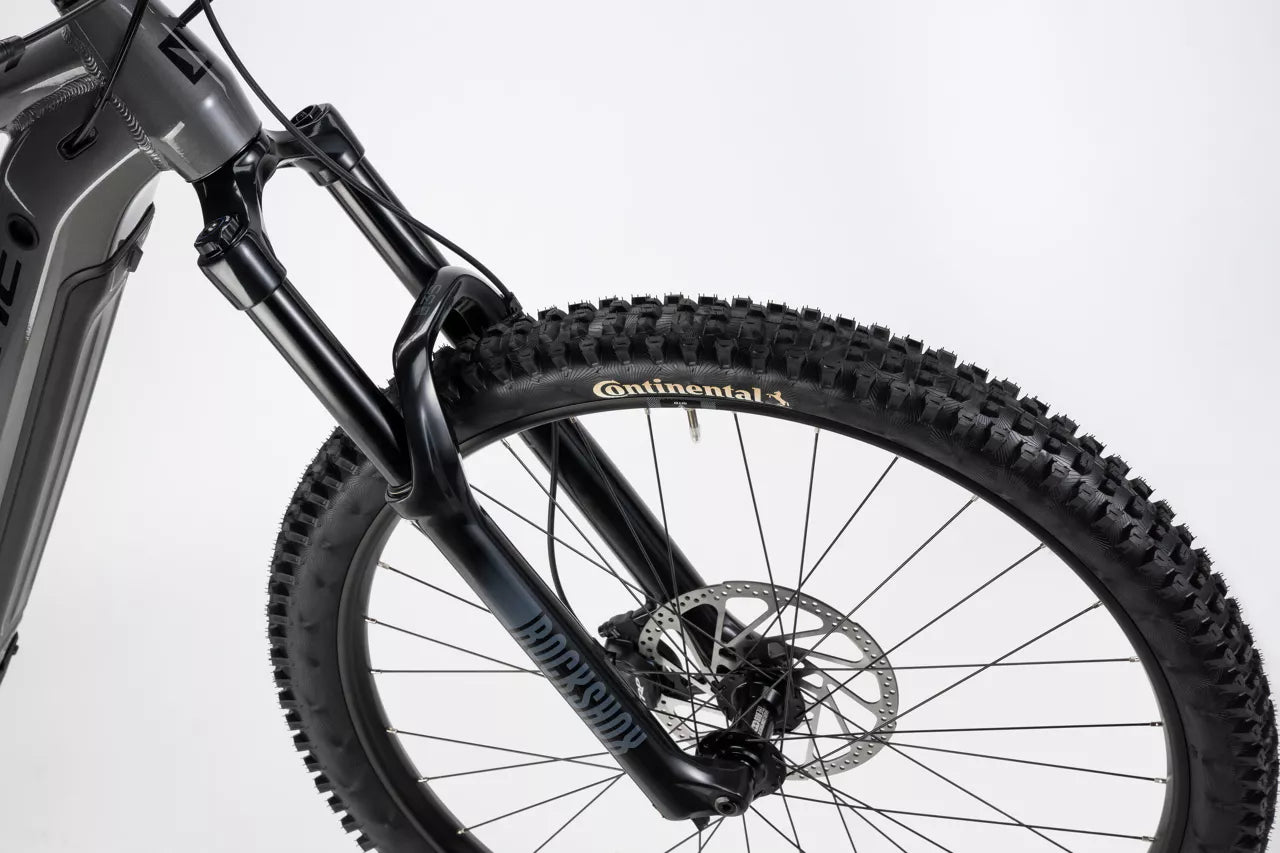

FORK: Rockshox Psylo Gold RC, Crown Adj, DebonAir 160 mm

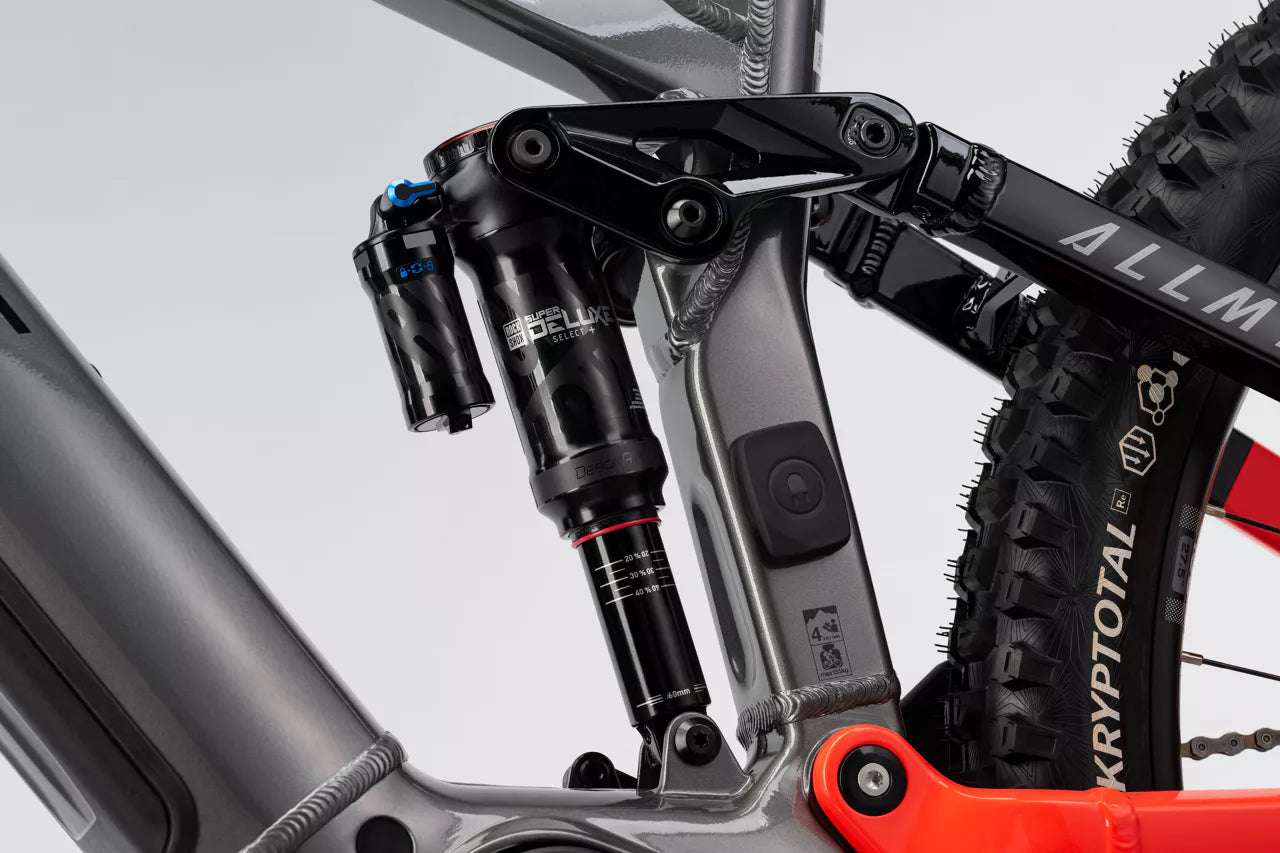

SHOCK: Rockshox Deluxe Select+ RT 205x65mm, Trunnion, DebonAir+
WHEELS: WTB ST i30 TCS 2.0, 28” +27.5”
TYRES: Continental Kryptotal-Fr, Trail Endurance, foldable skin SL 2.4

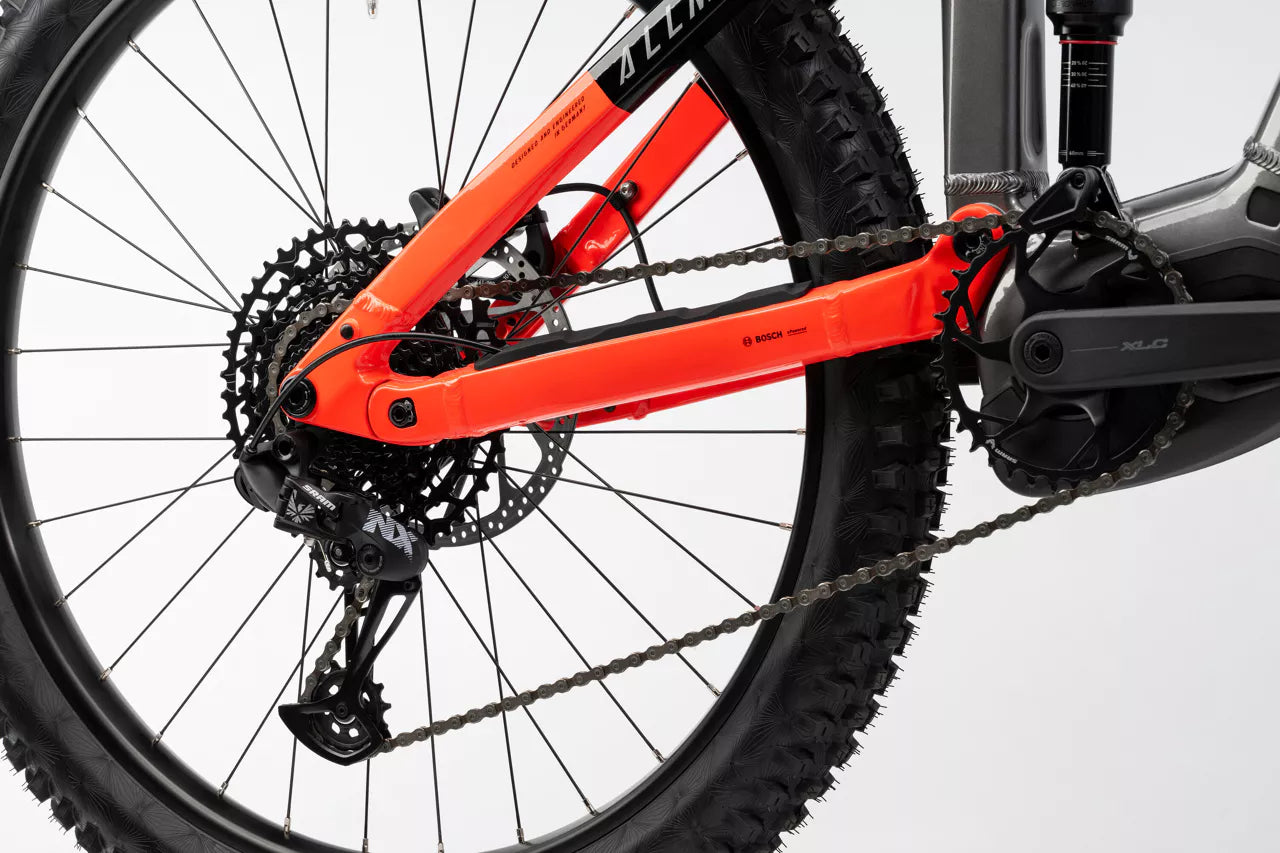

DERAILLEUR: Sram NX Eagle 12s
SHIFTER: Sram Triggershift NX Eagle Single Click Trigger
CHAIN: SX Eagle 12s
CASSETTE: Sram PG-1230 Eagle, HG
BRAKES: Tektro Hydraulic Disc TRP Slate EVO HD-M807, 4 pistons, 203 mm
CRANKSET: Miranda Crius ISIS Crankset + Chainring for Bosch BDU38 160
SADDLE: Selle Royal Vivo 1216HRN

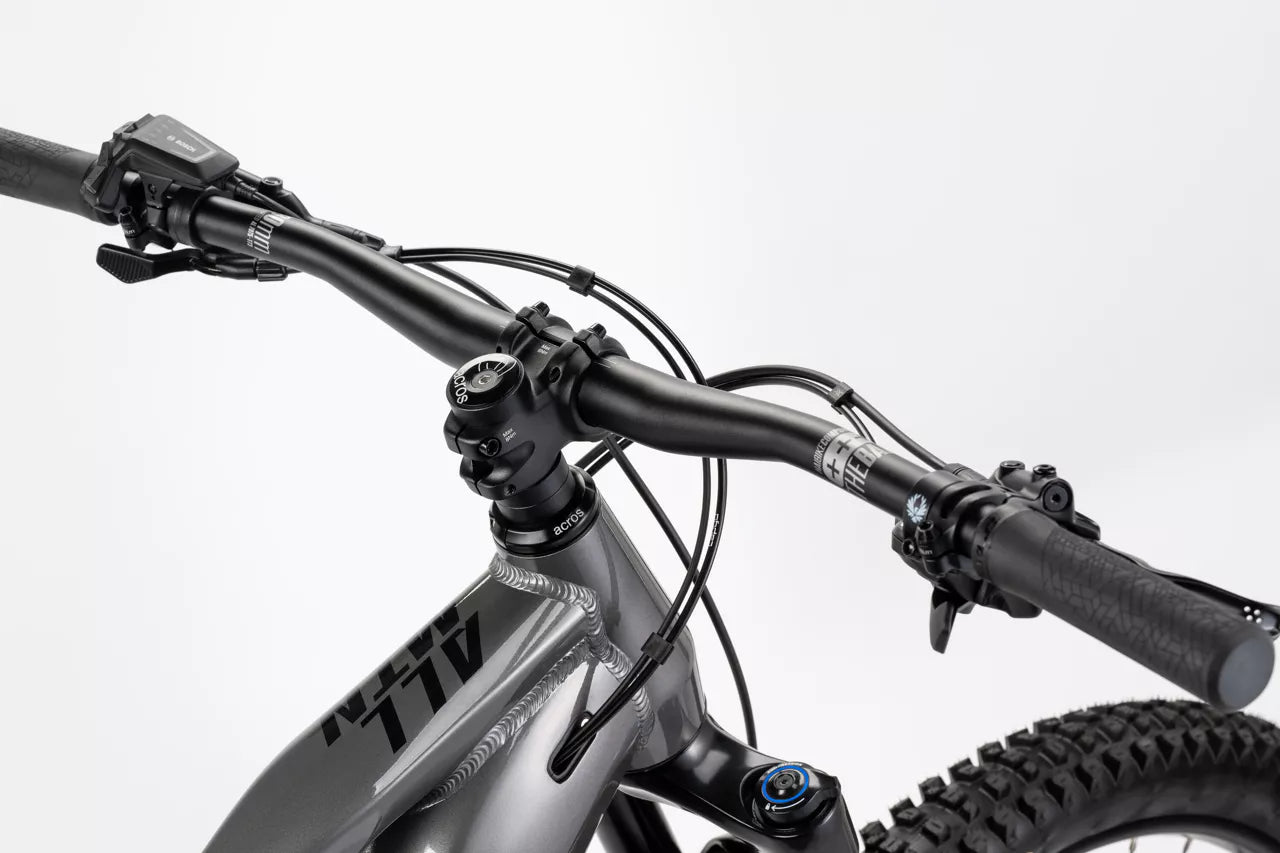

BARS: Haibike Flat bar TheBar++ Dia. 31.8 mm
PEDDLES: VP VPE-527
GRIPS: XLC VLG-1751D2
SEAT POST: Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
|
Bike Size |
Small |
Medium |
Large |
|
Rider hight |
5' 2" - 5' 6" |
5'6" - 5’10" |
5'10" - 6'1" |
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| Bottom bracket drop (mm) | 20 | 20 | 20 | 20 | |
| Wheel size | 29" | 29" | 29" | 29" | |
| wheelbase (mm) | 1206 | 1233 | 1268 | 1303 | |
| Reach (mm) | 408 | 435 | 468 | 501 | |
| Top tube length in millimeters | 567 | 594 | 628 | 662 | |
| Chainstay length (mm) | 455 | 455 | 455 | 455 | |
| Seat tube angle | 75 | 75 | 75 | 75 | |
| Stack height (mm) | 651 | 651 | 656 | 660 | |
| Seat tube length (mm) | 405 | 435 | 465 | 485 | |
| Head tube length (mm) | 130 | 130 | 135 | 140 | |
| Head tube angle | 64.5 | 64.5 | 64.5 | 64.5 |
Please note, occasionally, manufacturers may change the specification without notice.
