Description
"

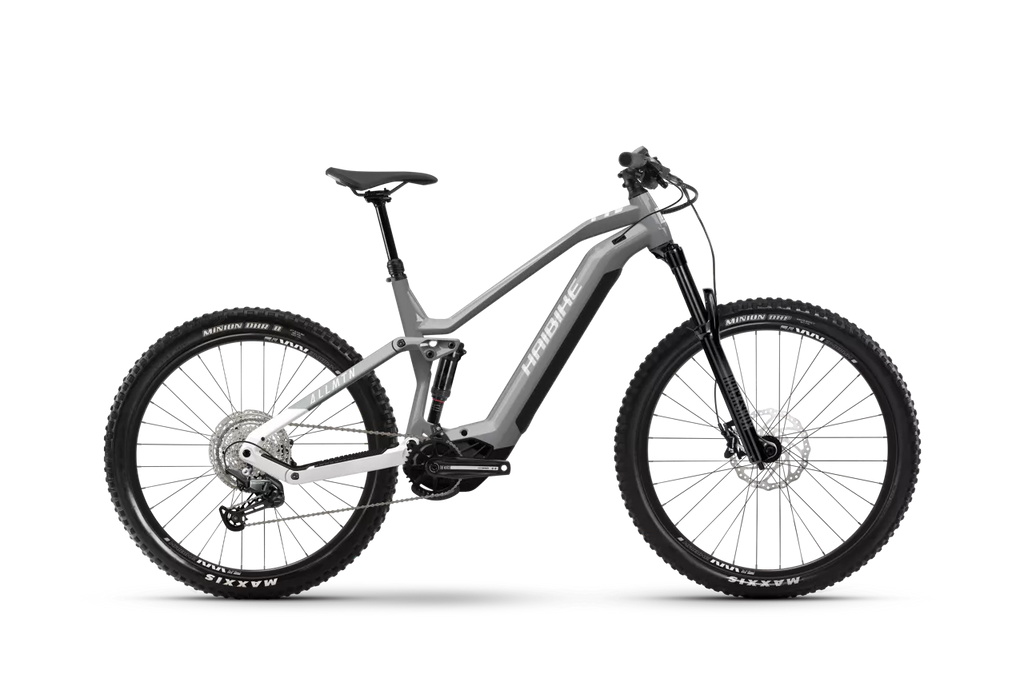

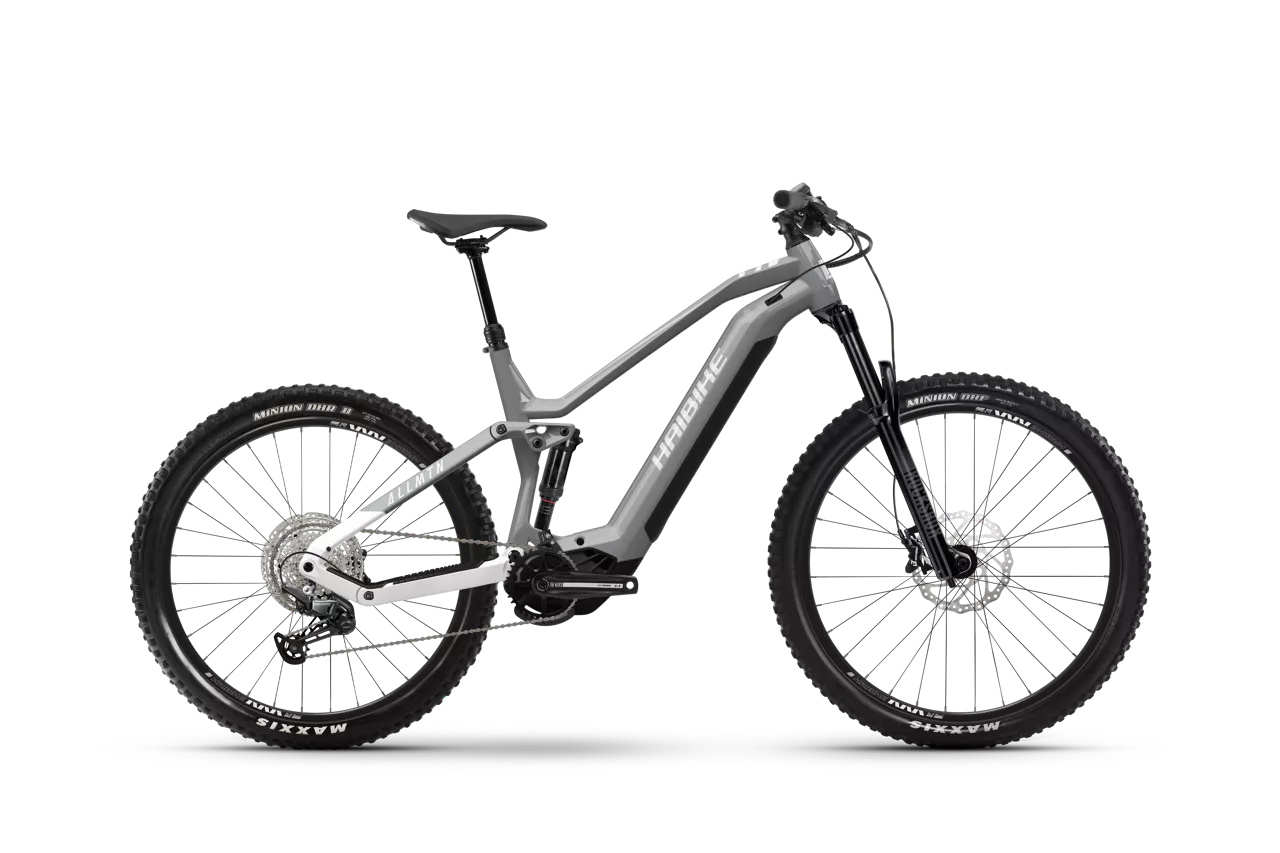

HAIBIKE ALLMTN 3
Are you looking for a robust eFully that takes on any terrain? Then our new ALLMTN 3 is the perfect all-rounder for you: With 160 mm travel front and rear, burly 4-piston disc brakes from Shimano and the powerful Yamaha PW-X3 drive, this eMTB takes you smoothly over all trails. Thanks to the mixed wheel sizes of 29" front / 27.5" rear, you will always enjoy perfect traction and master even the steepest uphills and downhills without a problem.
Specification
| WHEEL SIZE | 29 / 27.5 |
| FRAME | MTB Fully Aluminium |
| FORK | RockShox 35 Gold RL, Travel: 160mm |
| SHOCK | Rockshox Air Deluxe Select 160 mm |
| MOTOR | Yamaha PW-X3 Series |
| BATTERY |
Yamaha InTube 750 Wh |
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 120 kg
- FRAME COLOR: Silver
- CHAIN: Shimano Chain CN-M6100
- TYRES: Maxxis Minion DHF II 63-622
- REAR DERAILLEUR: Shimano Deore M6100
- SEAT POST: Haibike Dropperpost
- CHARGER: Yamaha Quick Charger 4A
- GEAR SHIFT LEVER: Shimano Triggershift Deore M6100
- SADDLE: Selle Royal Vivo
- REAR BRAKE: Shimano Hydraulic Disc brake MT420
- CASSETTE: Shimano M6100
- FRONT BRAKE: Shimano Hydraulic Disc brake MT420
- GRIPS: MTB grips
- HANDLEBAR: Haibike TheBar +++ Dia. 31.8 mm
- CRANK ARM: Haibike The Crank ++
GEOMETRIES
|
Bike Size |
Small |
Medium |
Large |
X-Large |
|
Rider hight |
5'2" - 5'6" |
5'6" - 5’10" |
5'10" - 6'1" |
6'1" - 6'4" |
| SIZE | S | M | L | XL |
| A - Top Tube Length | 570mm | 600mm | 627mm | 659mm |
| B - Seat Tube Length | 410mm | 440mm | 465mm | 495mm |
| C - Seat Tube Angle | 75° | 75° | 75° | 75° |
| D - Head Tube Length | mm | mm | mm | mm |
| E - Steering Angle | ° | ° | ° | ° |
| F - Chain Stay Length | 460mm | 460mm | 460mm | 460mm |
| G - Wheel Base | 1220mm | 1250mm | 1279mm | 1313mm |
| I - BB-Drop | mm | mm | mm | mm |
| K - Stack | 646mm | 646mm | 655mm | 664mm |
| L - Reach | 421mm | 451mm | 475mm | 505mm |
"
