Description

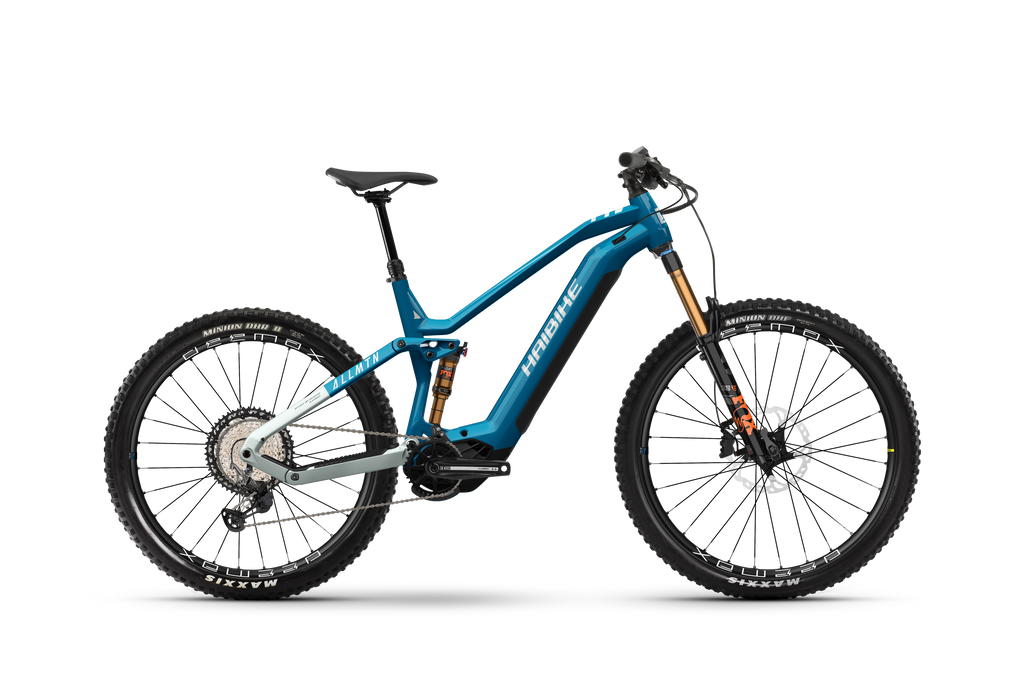

Tackle steep climbs, technical ascents and gravity‑fuelled descents with the ALLMTN 10 – a premium eMTB built for riders who demand no compromises. Driven by Yamaha’s latest PW‑X3 motor delivering 85 Nm of torque, paired with a 720 Wh InTube battery, you’ll have the power and range to explore all day. Its mixed 29"/27.5" wheel setup gives balanced traction up front and agility at the rear, while 160 mm of FOX 38 Factory Kashima air suspension (front) and a matching Float X Factory rear shock soak up trail chatter and big hits alike.
MOTOR: Yamaha PW-X3
BATTERY: Yamaha InTube 720
FORK: FOX 38 Factory Kashima, Air, Travel: 160mm
SHOCK: FOX Float X Factory EVOL LV, air
WHEELS: Mavic E-Deemax
TYRES: Maxxis Minion, 3C MaxxTerra, EXO, TR
SHIFTER: Shimano Deore XT M8100, trigger switch
CHAIN: Shimano SLX M7100
CASSETTE: Shimano Deore M6100, 10-51 teeth
BRAKES: Shimano Deore XT M8120, Hydraulic Disc 203mm
CRANKSET: Haibike Components, Aluminium
DERAILLEUR: Shimano Deore XT M8100 Shadow Plus, 12-speed
SADDLE: fi'zik Terra Aidon X5-160
BARS: Haibike Components TheBar +++ 780mm
STEM: Haibike Components TheStem +++
GRIPS: Haibike, MTB grips
SEAT POST: Haibike Components, Dropper-Post Remote
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| wheelbase (mm) | 1220 | 1250 | 1279 | 1313 | |
| Chainstay length (mm) | 460 | 460 | 460 | 460 | |
| Top tube length in millimeters | 570 | 600 | 627 | 659 | |
| Bottom bracket drop (mm) | 20 | 20 | 20 | 20 | |
| Wheel size | 29" | 29" | 29" | 29" | |
| Stack height (mm) | 646 | 646 | 655 | 664 | |
| Head tube length (mm) | 120 | 120 | 130 | 140 | |
| Reach (mm) | 421 | 451 | 475 | 505 | |
| Seat tube angle | 75 | 75 | 75 | 75 | |
| Seat tube length (mm) | 410 | 440 | 465 | 495 | |
| Head tube angle | 64.5 | 64.5 | 64.5 | 64.5 |
