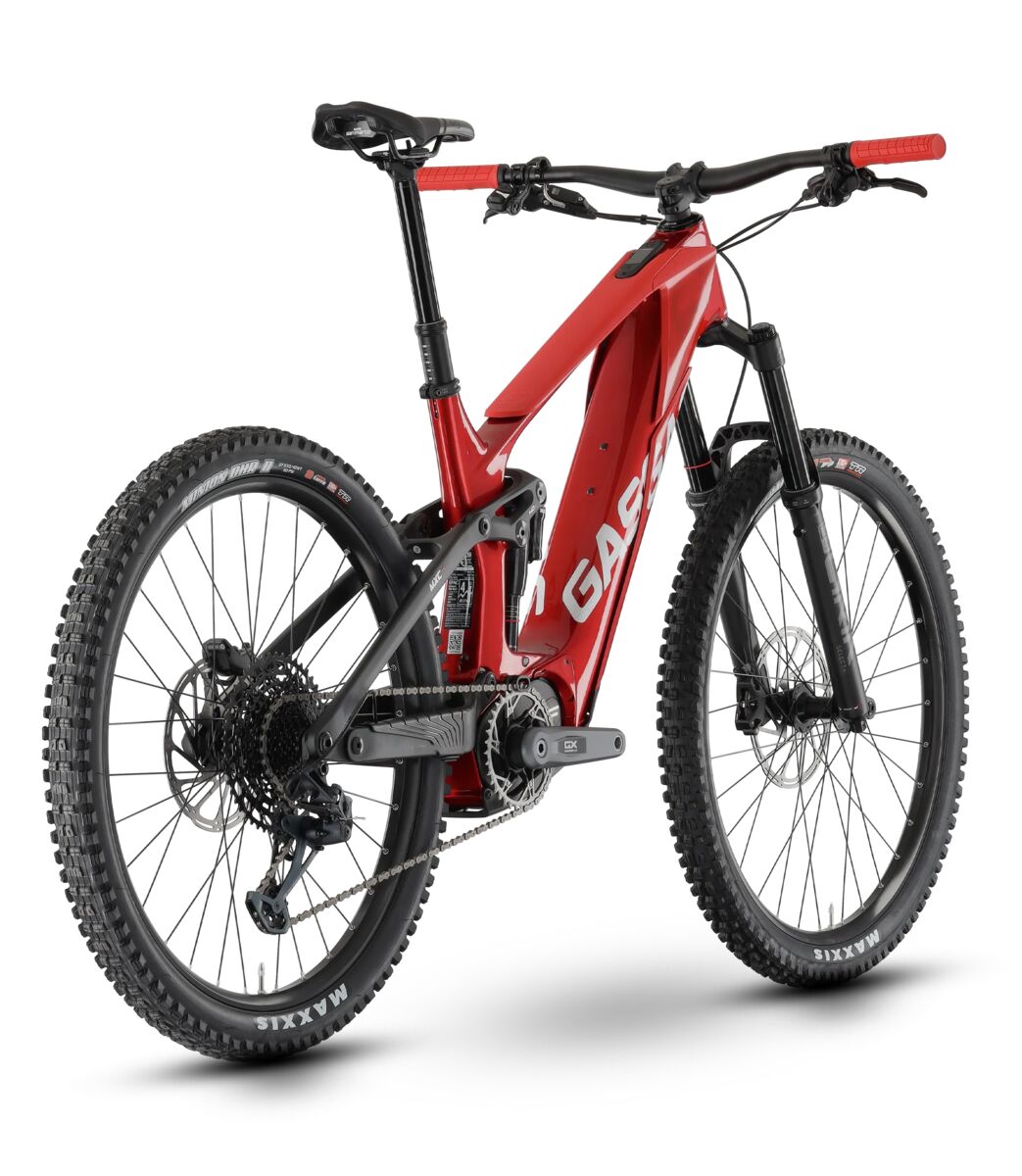

MXC 4
Specification
WHEEL SIZE | 27.5“/584mm, 29"/622 mm |
FRAME | Carbon, Integrated Battery, Boost, 140 mm |

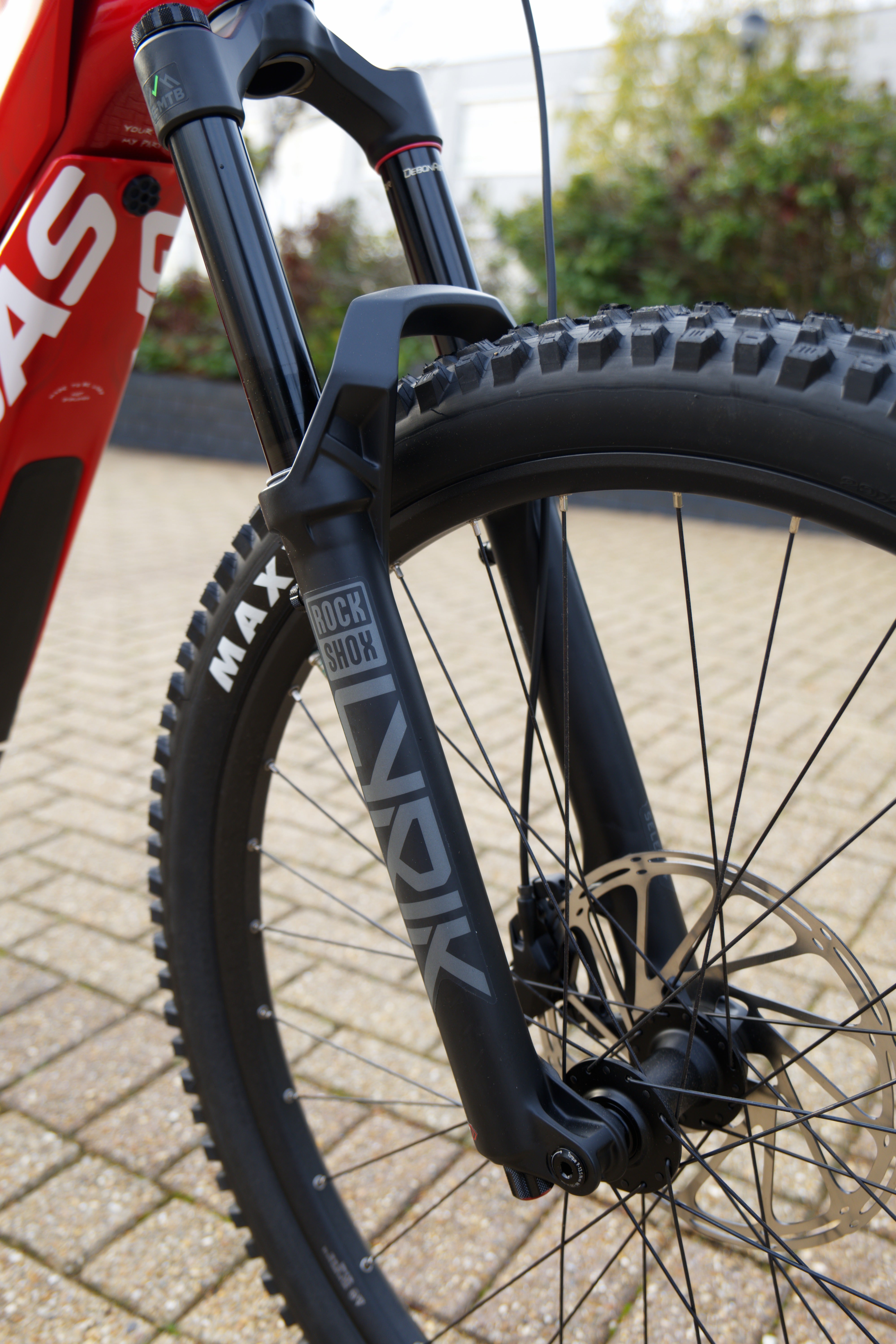

FORK | RockShox Lyrik Select+, DebonAir+, Air 160 mm |

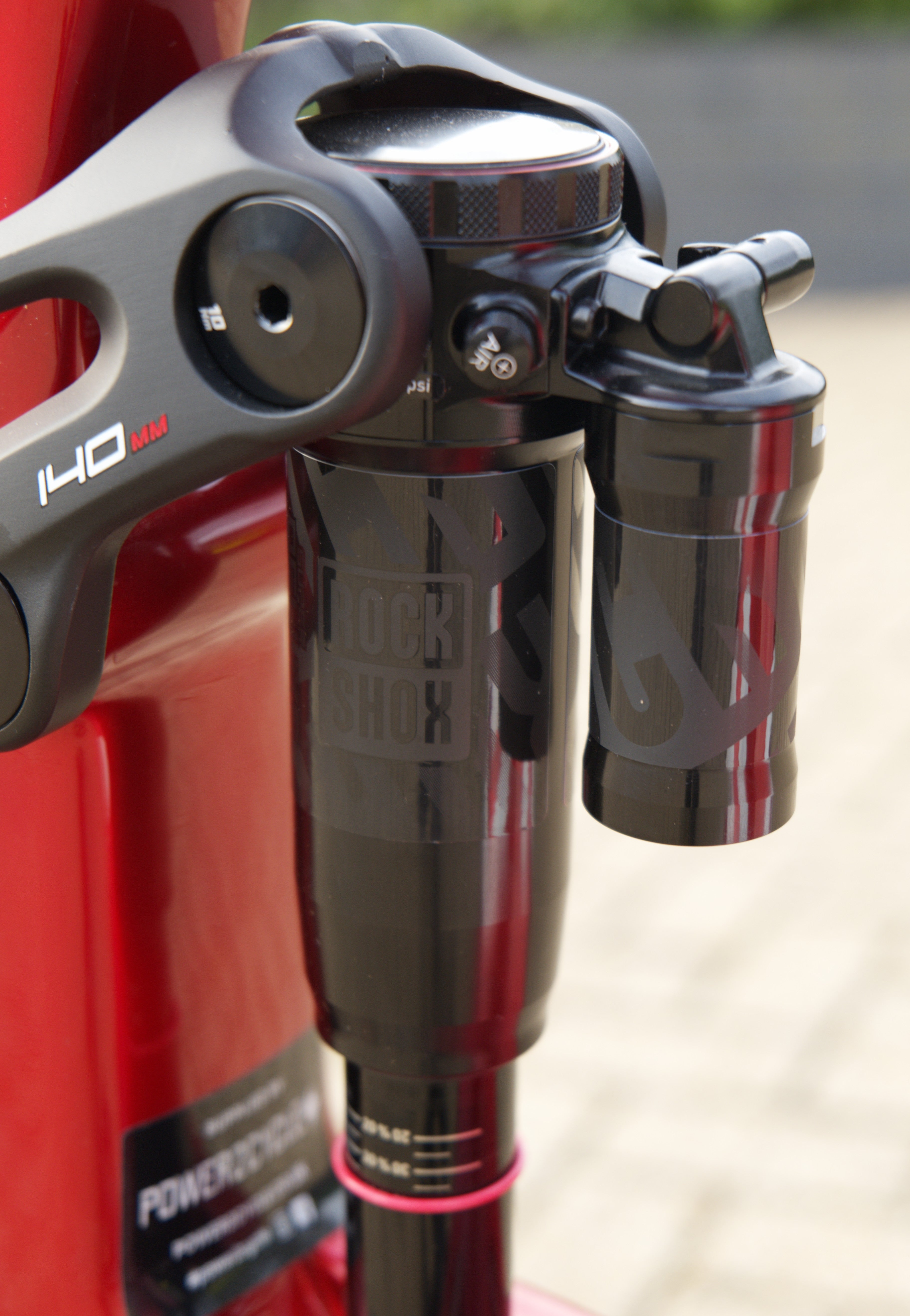

SHOCK | Rockshox Deluxe Select+ Air, 205x60mm |
MOTOR | SRAM Eagle Powertrain Drive Unit, 250 W, 90nm |
BATTERY | SRAM Eagle Powertrain, 630wh |
-
REAR DERAILLEUR: SRAM XO Eagle Transmission, 12-S
- GEAR SHIFT LEVER: SRAM SX Eagle, Single Click
- CASSETTE: SRAM PG-1210 11-50 T
- CHAIN: SRAM SX Eagle
- CHAIN RING: SRAM XX Eagle Transmission
- CRANK ARM: SRAM X0 Eagle eMTB
- PEDALS: GASGAS, aluminium
- FRONT BRAKE: SRAM DB8, 4-Piston Hydraulic disc brake
- REAR BRAKE: SRAM DB8, 4-Piston Hydraulic disc brake
- STEM: GasGas 35, 0 *, Ahead
- HANDLEBAR: GasGas Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
- GRIPS: GASGAS MTB, Lock-on grips
- SEAT POST: GasGas Pro 34.9 mm, Dropper post
- SADDLE: Selle San Marco GND
- WHEELS: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready
- FRONT TYRE: Maxxis Assegai, 63-622, 29, 2.5
- REAR TYRE: Maxxis Minion DHR II, 62-584, 27.5 x 2.4
- FRAME COLOR: Electronic Red
- TRAILER APPROVAL: No
- CHARGER: SRAM Eagle Powertrain Charger
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg

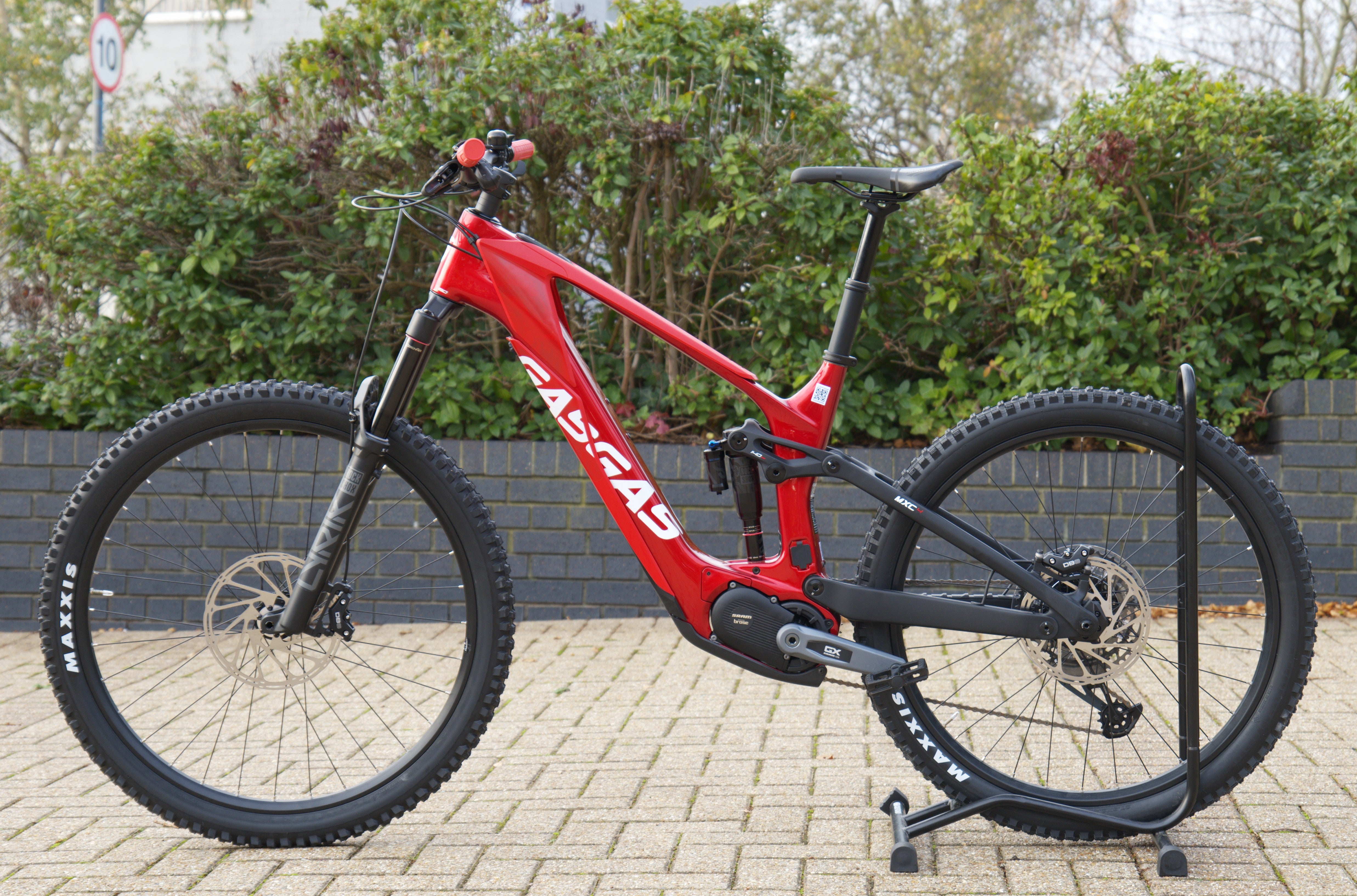

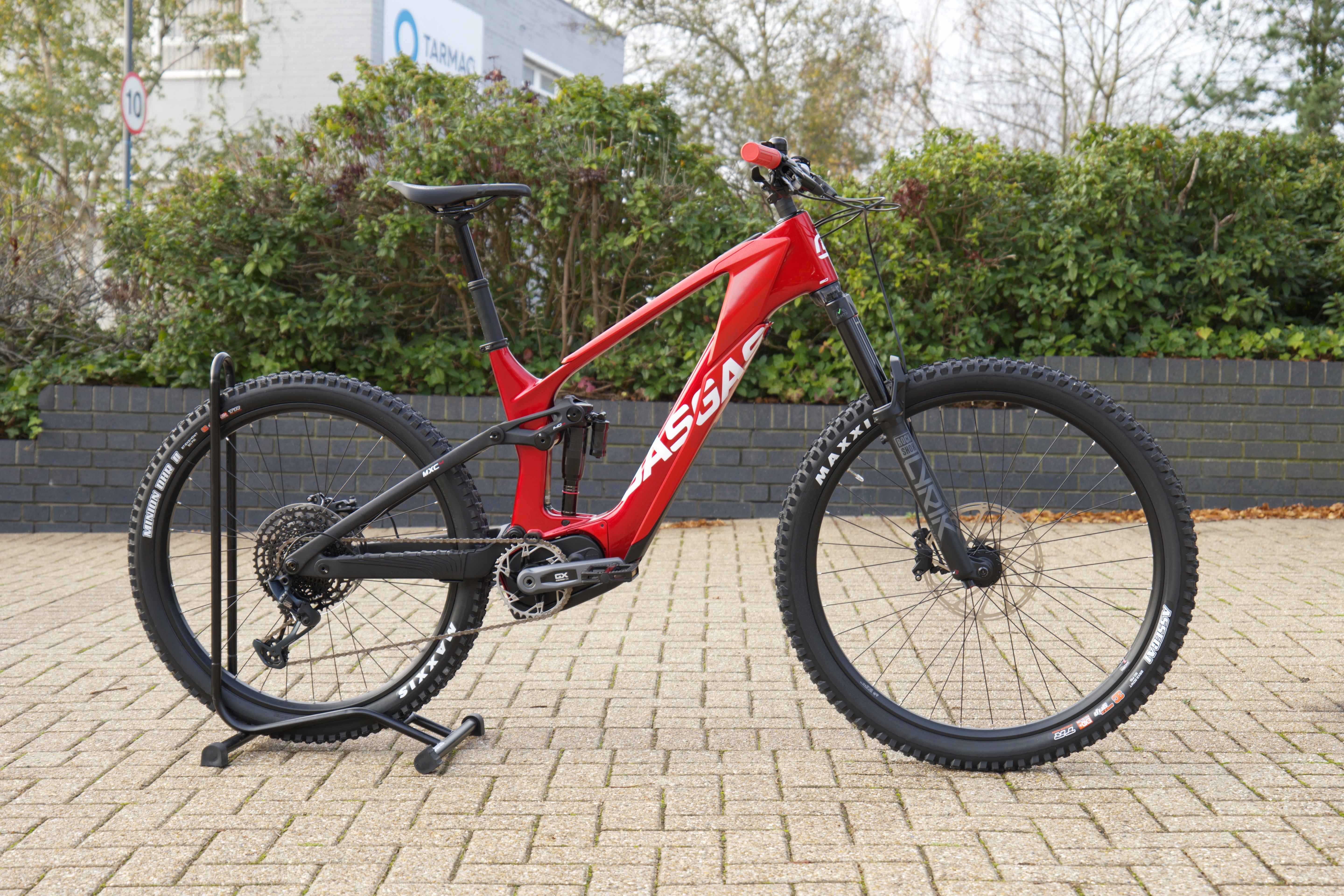

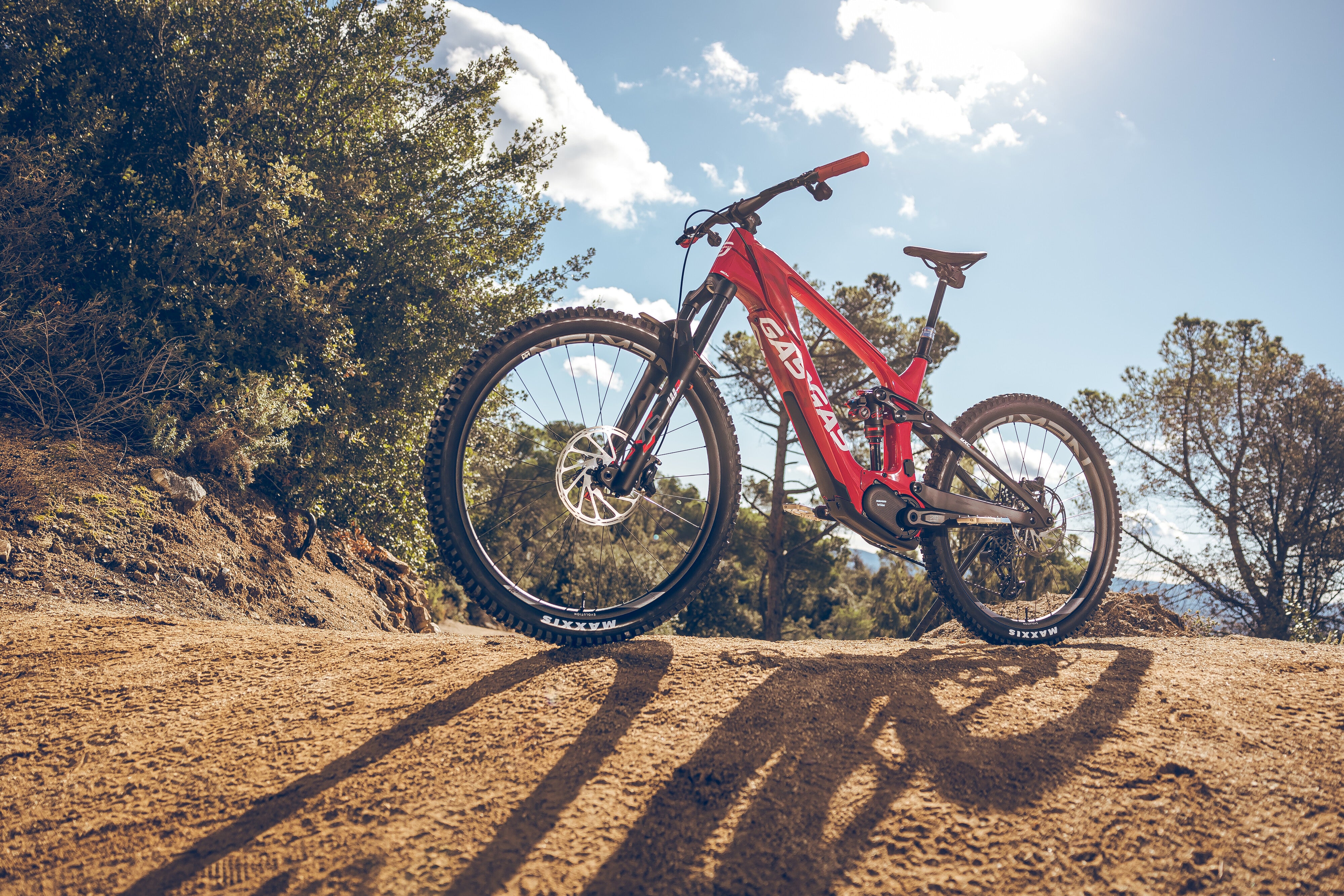

With its sangria red colorway, the MXC 4 will cause some serious head-turning out on the trail. Built on our all-mountain carbon chassis with size-specific rear triangle, this rig boasts a super-progressive geometry, a slack, gnar-ready head angle, and mullet wheel set-up. Paired with the 160/140mm suspension travel, you've got a playful, agile, and, most-importantly, fun shred sled all tuned with some extra protective covers.

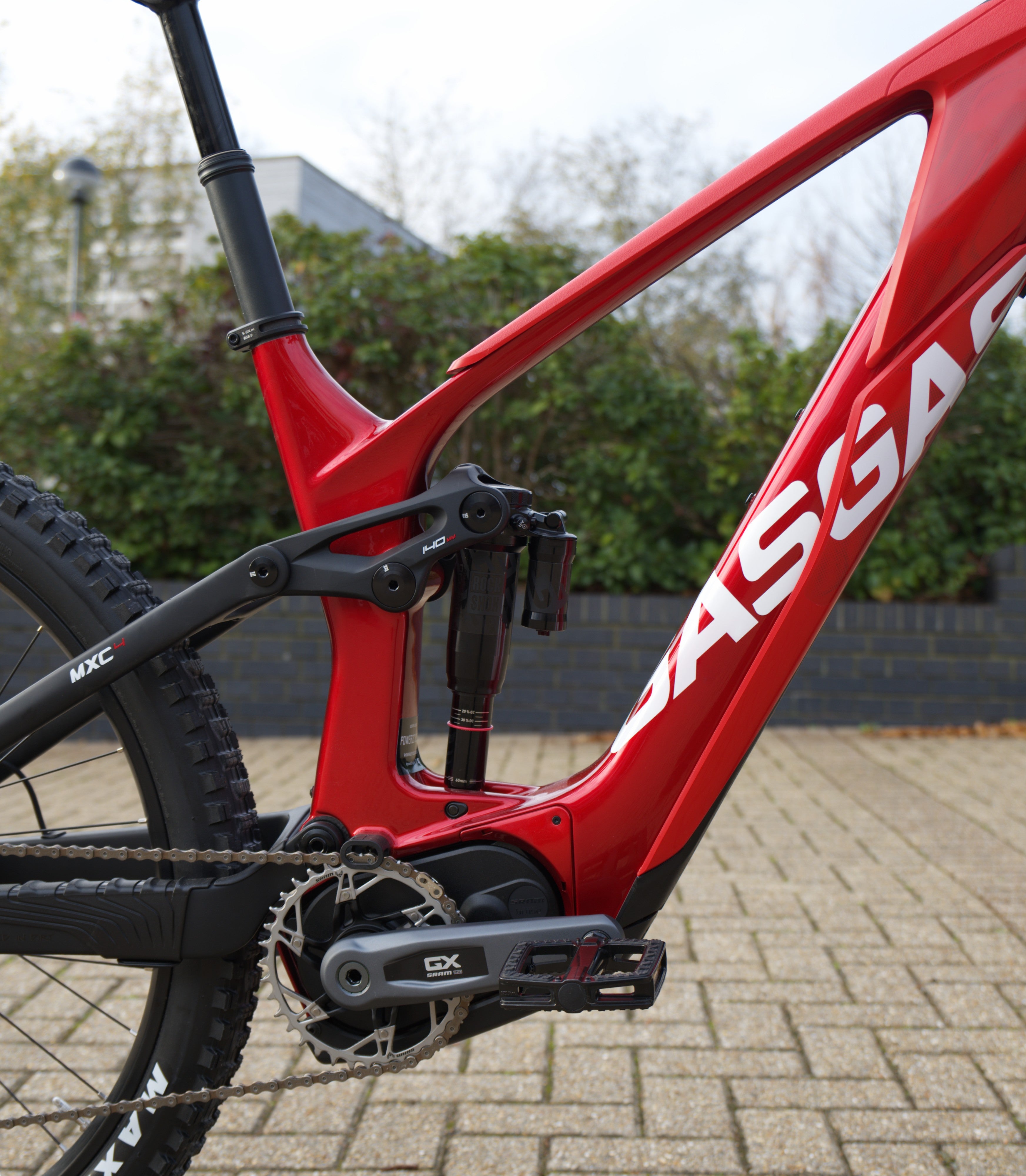

Like our other latest generation eMTBs, the MXC 4 is equipped with the state-of-the-art SRAM Eagle Powertrain drive unit featuring a 630Wh battery and AXS Bridge Display mounted in the top tube.
This rig keeps things in the family with SRAM 4-piston DB8 brakes on 220/200mm rotors and 12-speed GX Eagle groupset. Suspension comes via a 160mm Lyrik Select+ fork and Deluxe Select+ shock.
GEOMETRIES
SIZE | S | M | L |
A - Top Tube Length | 588 mm | 613 mm | 638 mm |
B - Seat Tube Length | 400 mm | 440 mm | 470 mm |
C - Seat Tube Angle Virtual |
74° |
74° |
74° |
D - Head Tube Length | 120 mm | 135 mm | 150 mm |
E - Headtube Angle | 64.5° | 64.5° | 64.5° |
F - Chain Stay Length | 442 mm | 445mm | 450mm |
G - Wheel Base | 1228 mm | 1262 mm | 1299 mm |
I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm |
K - Stack | 644 mm | 658 mm | 671 mm |
L - Reach | 445 mm | 470 mm | 495 mm |
