MXC 6
Specification
| WHEEL SIZE | 27.5“/584mm, 29"/622 mm |
| FRAME | Carbon, Integrated Battery, Boost, 140 mm |
| FORK | DVO Onyx D1CV OTT, Air, 160 mm |

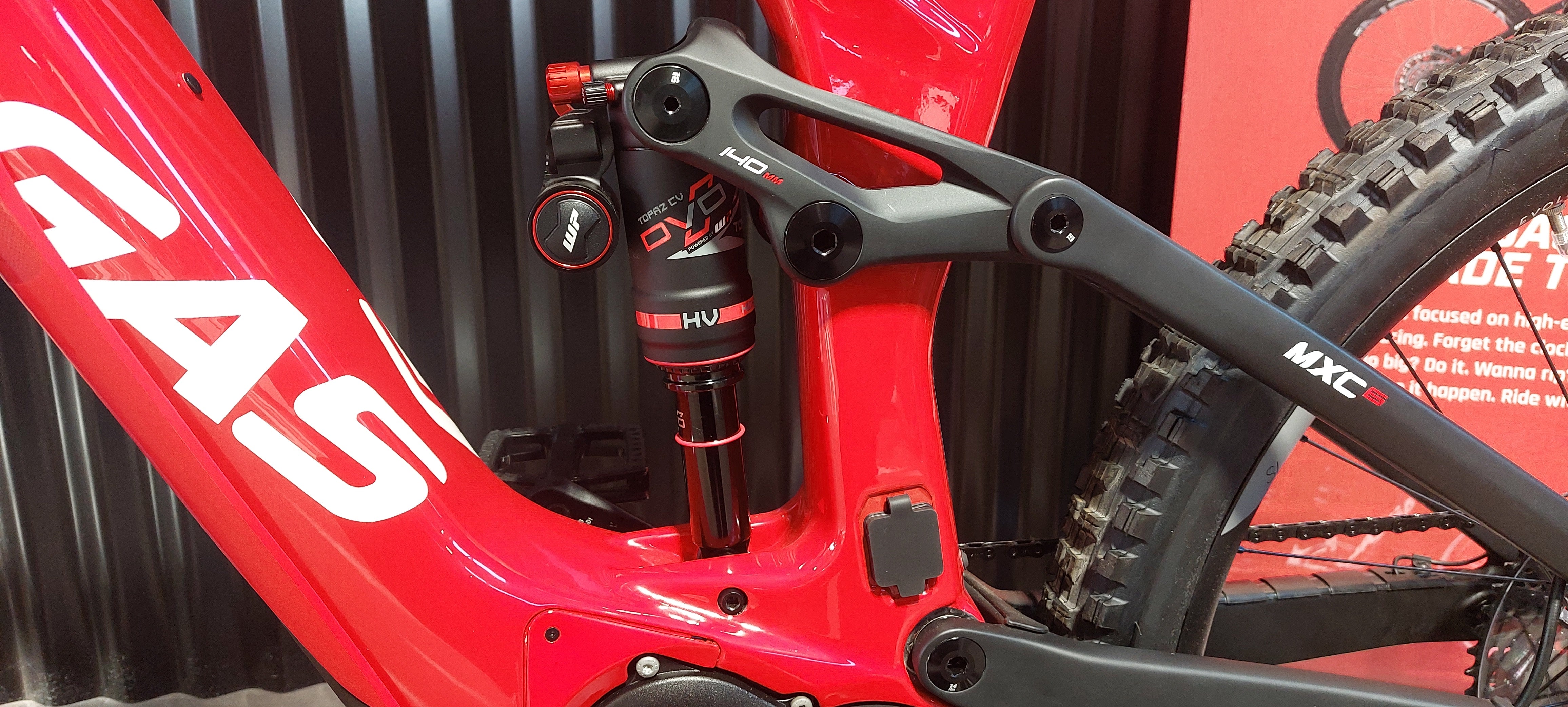

| SHOCK | DVO Topaz AIR CV, Air, 205x60 mm |
| MOTOR | SRAM Eagle Powertrain Drive Unit, 90nm |
| BATTERY | SRAM Eagle Powertrain, 600wh |
-
REAR DERAILLEUR: SRAM XO Eagle Transmission, 12-S

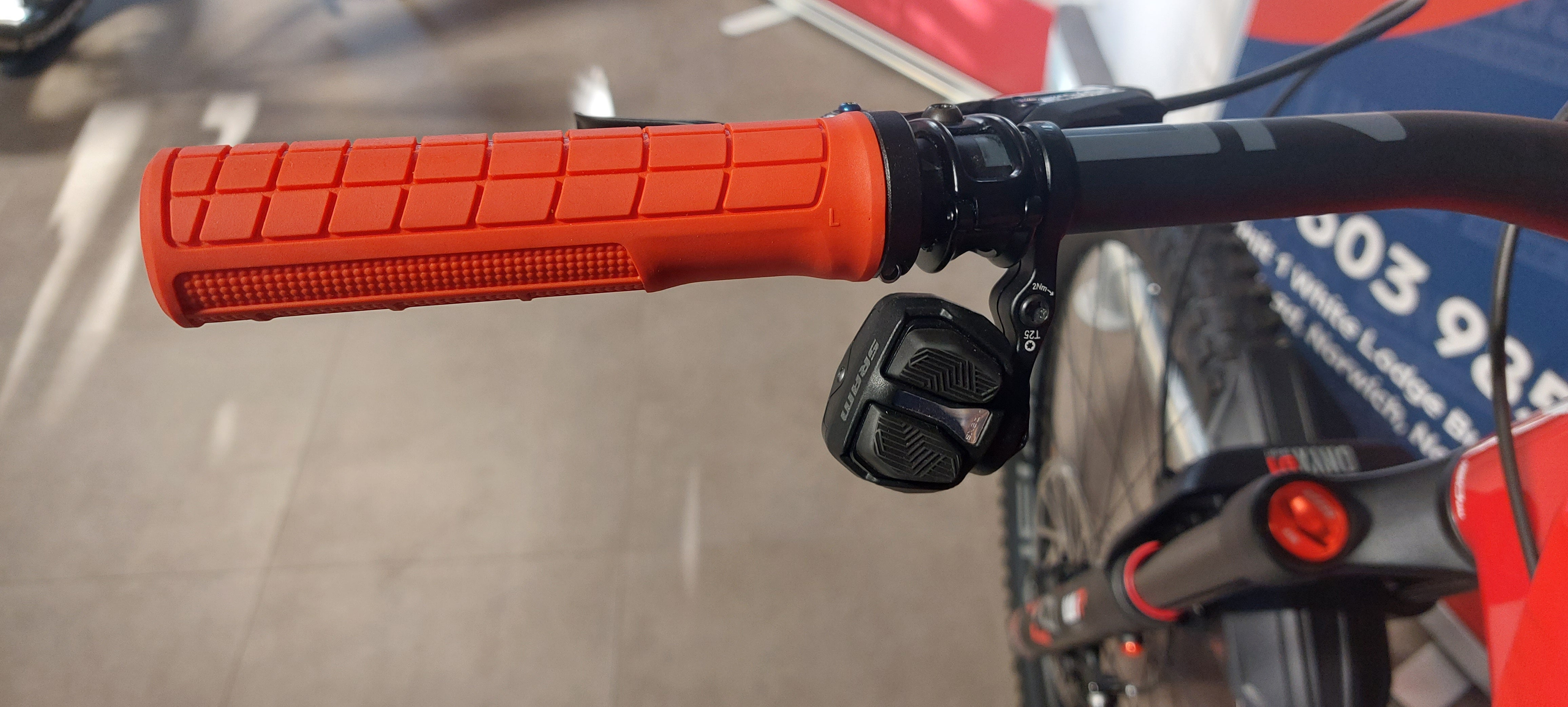

- GEAR SHIFT LEVER: SRAM AXS Pod Ultimate Controller
- CASSETTE: SRAM XS-1295, 10-52 T
- CHAIN: SRAM X0 Eagle Transmission Flattop
- CHAIN RING: SRAM XX Eagle Transmission
- CRANK ARM: SRAM X0 Eagle eMTB
- PEDALS: GASGAS, aluminium

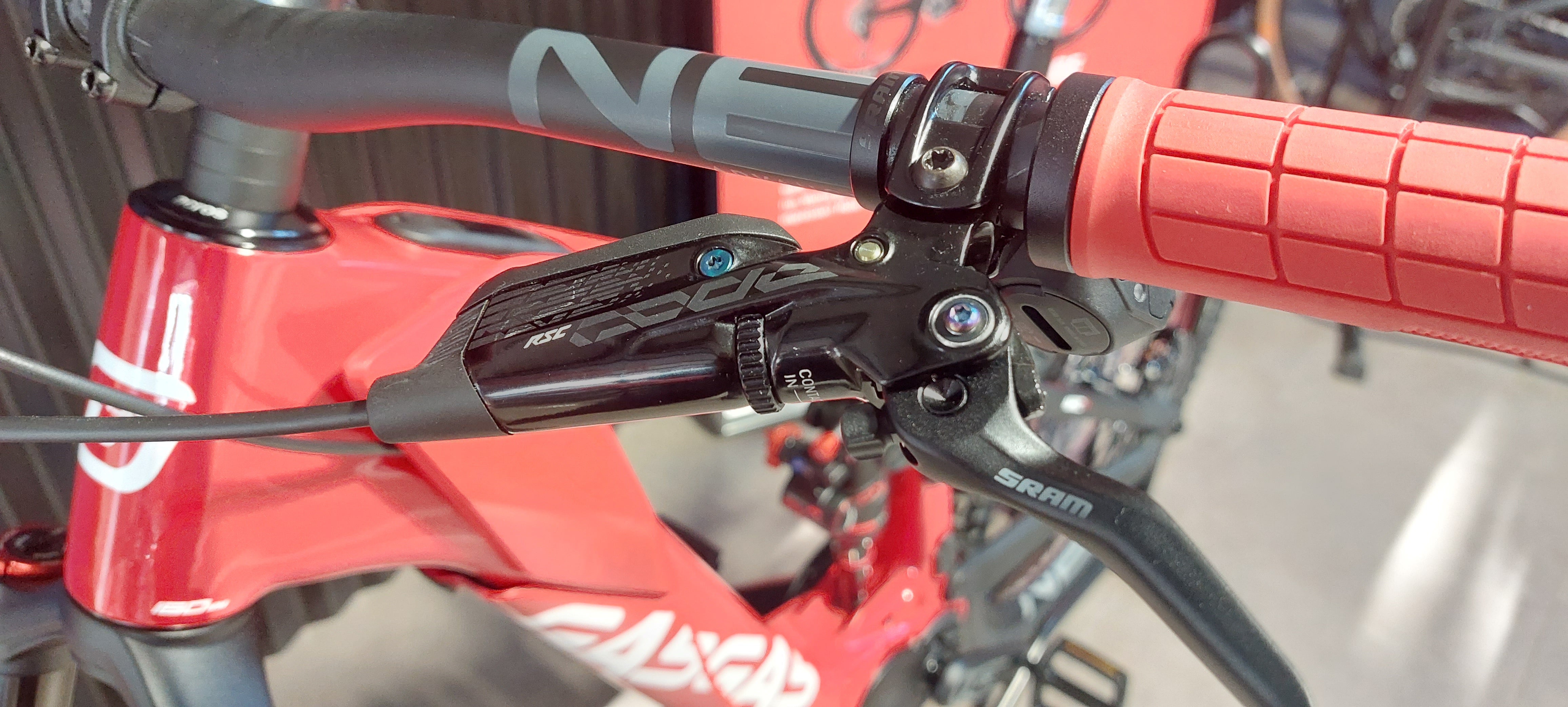

- FRONT BRAKE: SRAM Code RSC, 4-piston, Hydraulic disc brake
- REAR BRAKE: SRAM Code RSC, 4-piston, Hydraulic disc brake
- STEM: NEWMEN Evolution 318.40, Ahead
- HANDLEBAR: NEWMEN Advanced 318.25, 800 mm, Rise: 25 mm
- GRIPS: GASGAS MTB, Lock-on grips
- SEAT POST: RockShox Reverb AXS
- SADDLE: Selle Royal Terra Ridon X5
- WHEELS: NEWMEN Evolution SL E.G. 30 (front) / 35 (rear), Tubeless read

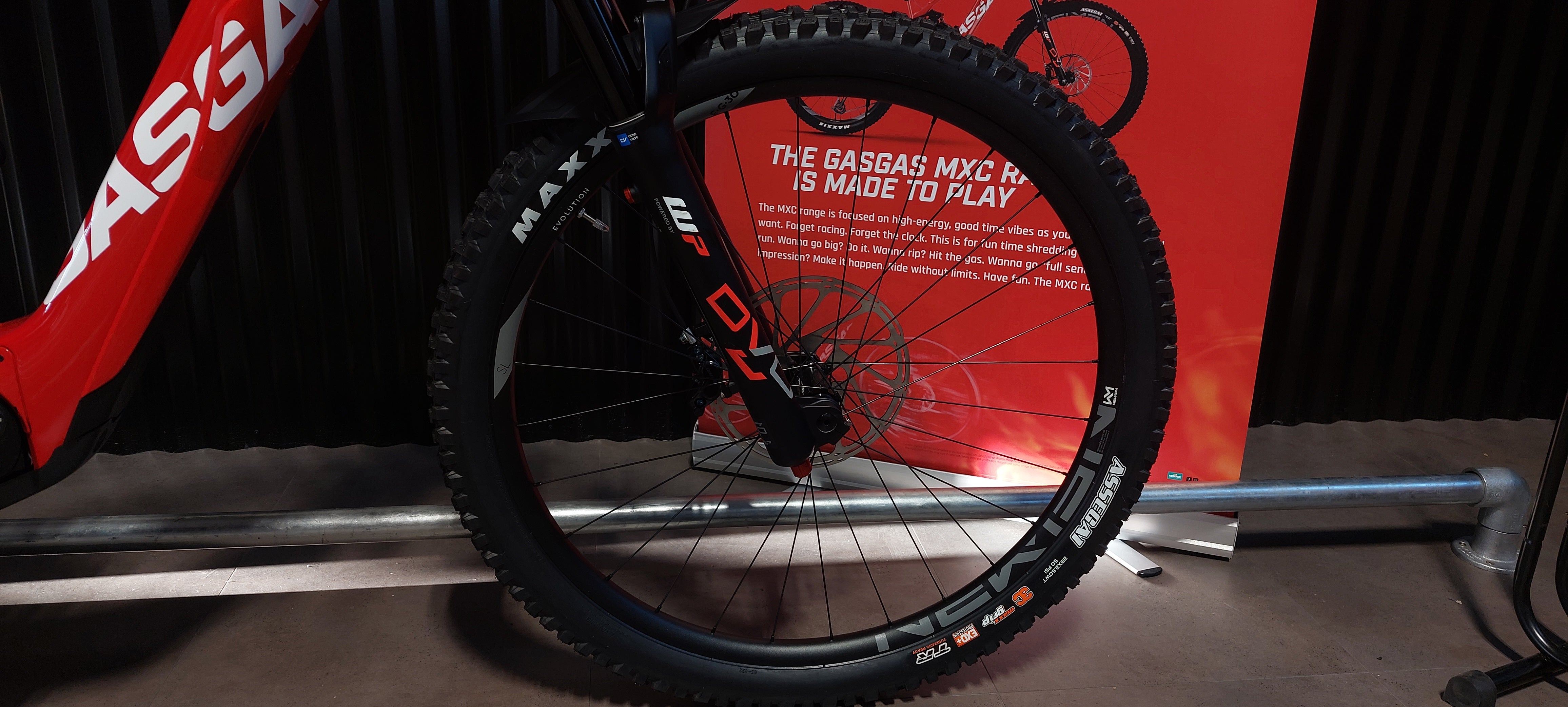

- FRONT TYRE: Maxxis Assegai, 63-622, 29x2.5
- REAR TYRE: Maxxis Minion DHR II, 62-584, 27.5x2.4
- FRAME COLOR: Electronic Red
- TRAILER APPROVAL: No
- CHARGER: SRAM Eagle Powertrain Charger
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg

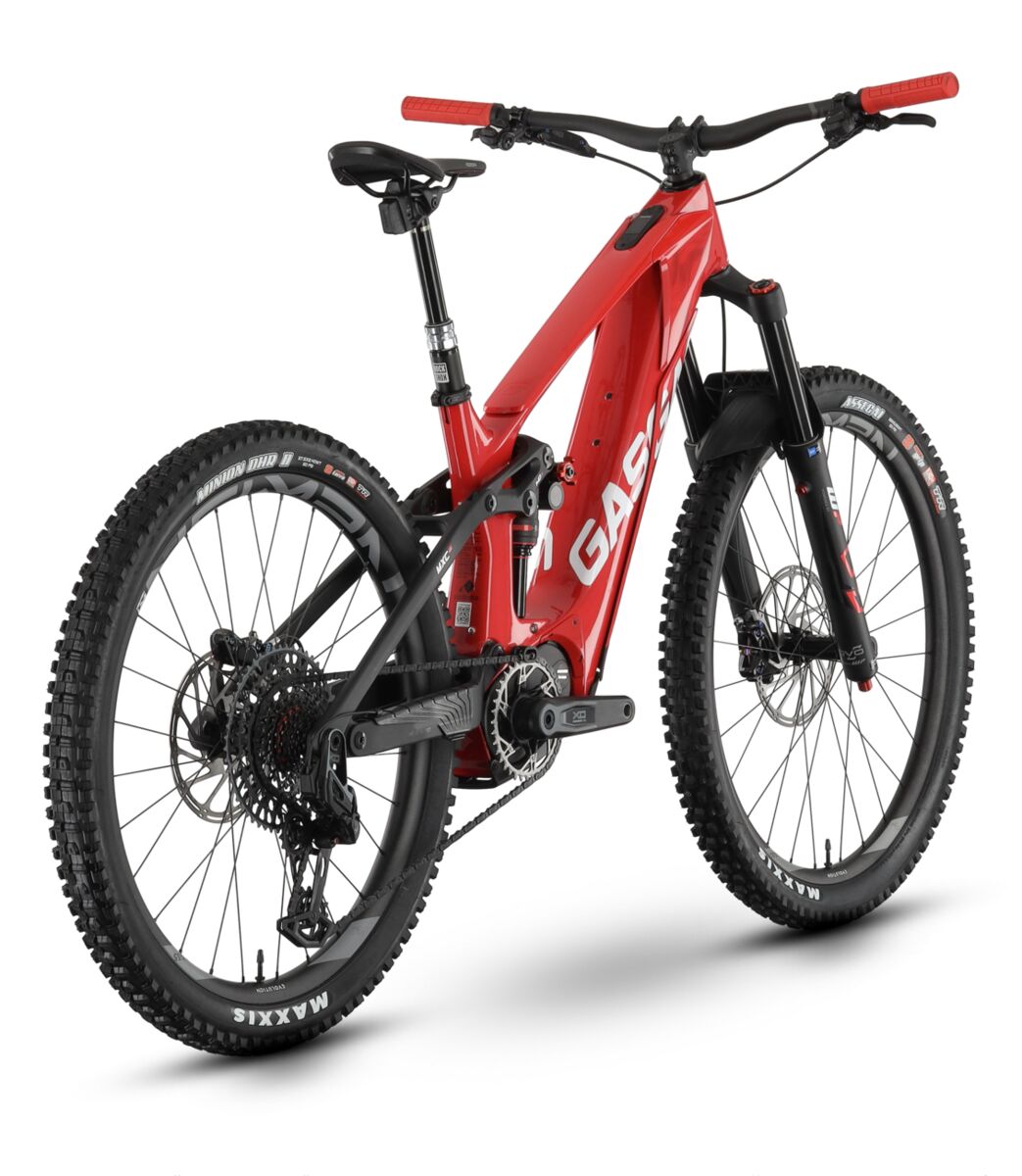

The MXC 6 is a super-fun bike that opens up a new level of creative and playful riding. The flagship model of our MXC range, the 6 will have you instantly aiming high and pushing your limits in the quest for epic fun. With its agile geometry and vivid suspension kinematics, you can let your rebellious side take control as you rip through rock gardens, hit jumps, and tackle technical climbs with high-energy vibes.
The MXC 6 chassis is a 160 / 140 mm-travel-travel, carbon frame that features size-specific rear triangles for optimal riding. Progressive geometry and the mullet wheel set-up make for playful yet predictable handling. The durable covers and plastic skid plate offer innovative protection with room for future personalization to get your unique ride dialled.

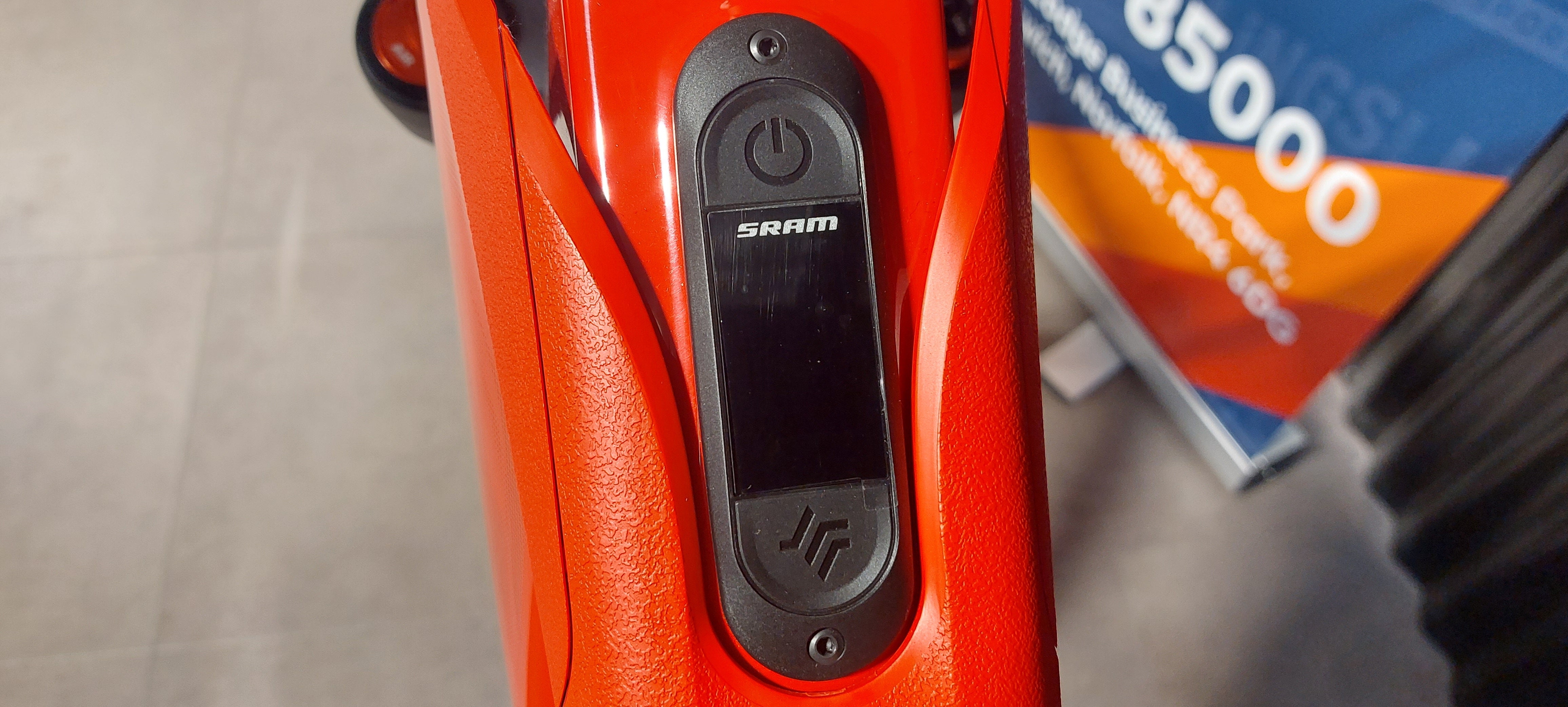

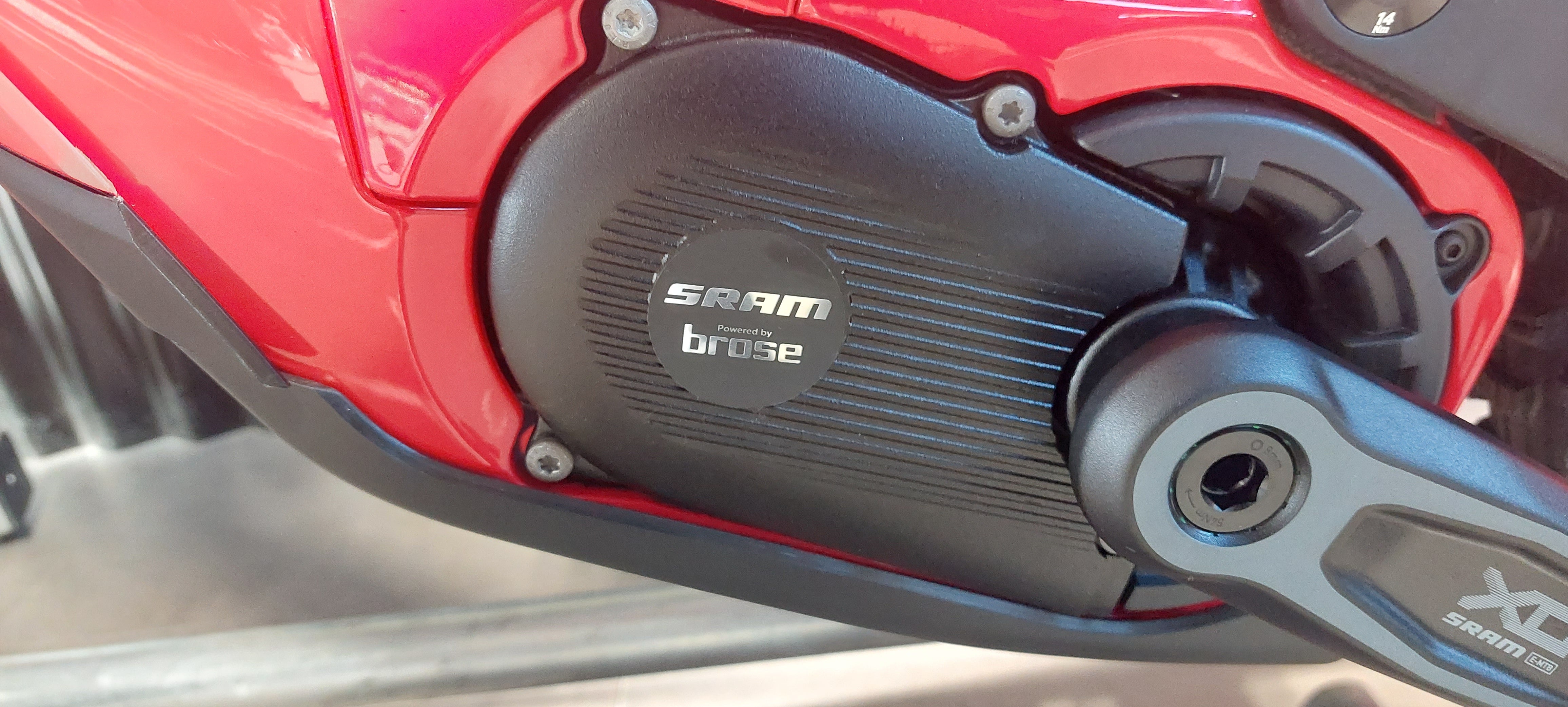

The all-new SRAM Eagle Powertrain leads the way with 90 Nm of torque, 680 W peak power, and auto-shift and coast functions visible via the AXS Bridge Display on the top tube. Combined with the 630 Wh battery and the optional 250 Wh Range Extender, SRAM have developed a truly complete eMTB system.
The complete chassis features DVO powered by WP suspension with innovative cone valve technology and 160 mm travel via a beefy 38mm front fork and a 140 mm rear air shock. A 12-speed SRAM XO transmission, Rockshox Reverb AXS dropper post, SRAM Code RSC brakes with 220 / 200 mm rotors, Selle Royal saddle, NEWMEN wheels and Maxxis rubber complete the top-spec MXC 6 build.
GEOMETRIES
| SIZE | S/M | M/L | L/XL |
| A - Top Tube Length | 588 mm | 613 mm | 638 mm |
| B - Seat Tube Length | 400 mm | 440 mm | 470 mm |
|
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual |
78° 74.4° |
78.25° 75.2° |
78.5° 75.5° |
| D - Head Tube Length | 115 mm | 130 mm | 145 mm |
| E - Headtube Angle | 64° | 64° | 64° |
| F - Chain Stay Length | 461 mm | 465mm | 469mm |
| G - Wheel Base | 1257 mm | 1289 mm | 1325 mm |
| I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm |
| K - Stack | 649 mm | 663 mm | 676 mm |
| L - Reach | 450 mm | 475 mm | 500 mm |
