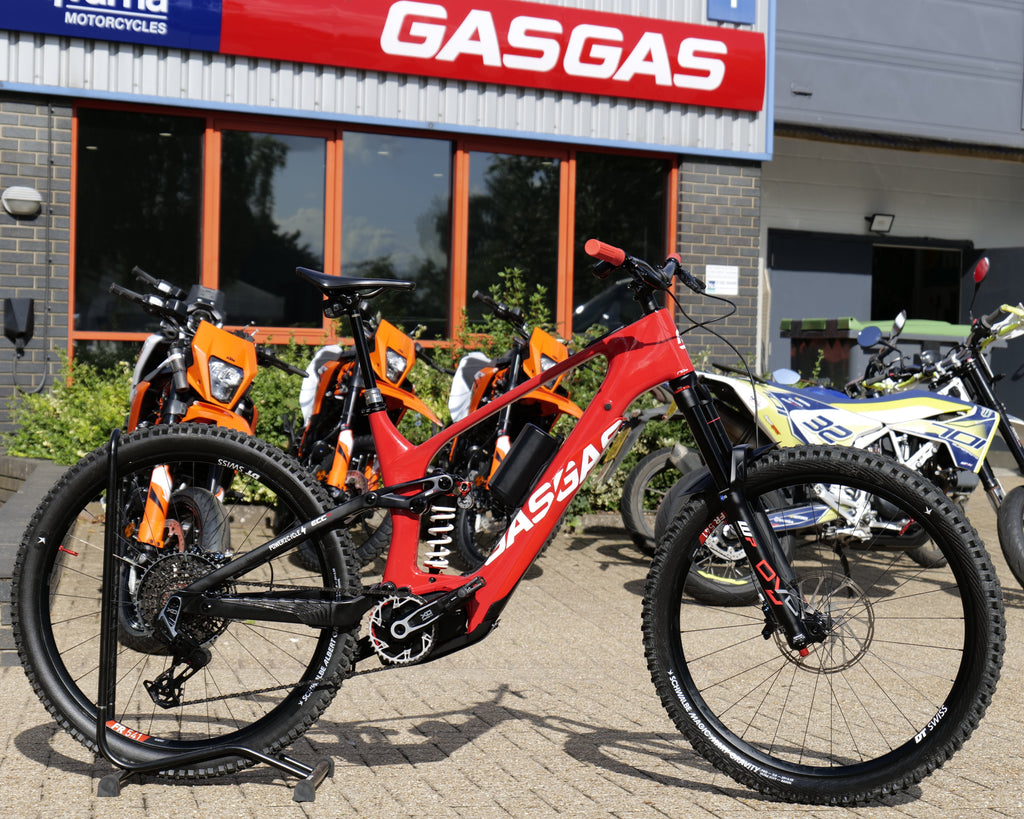

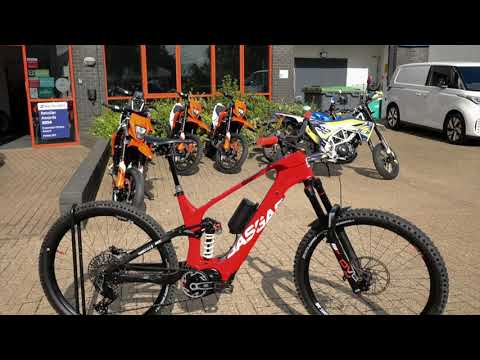

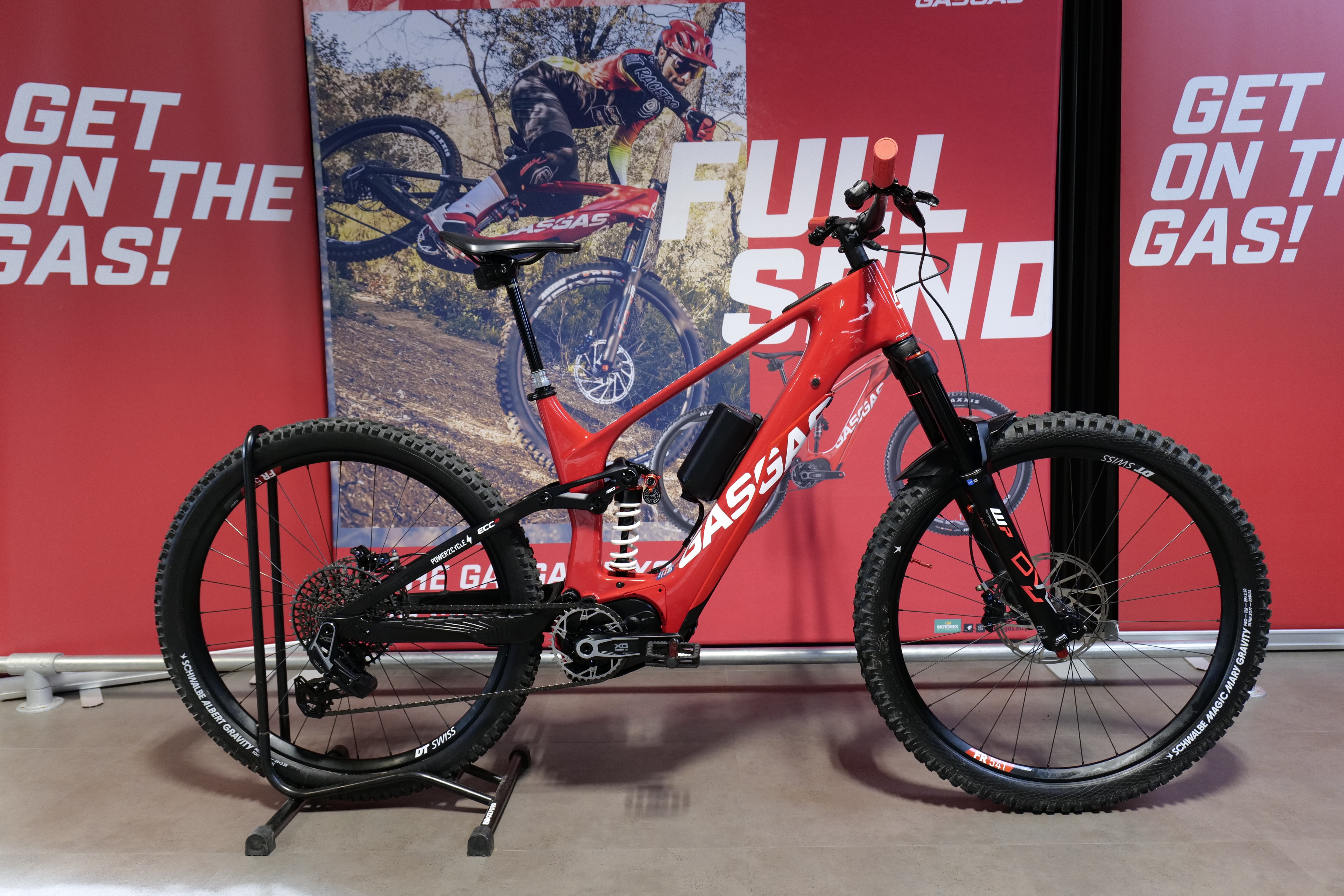

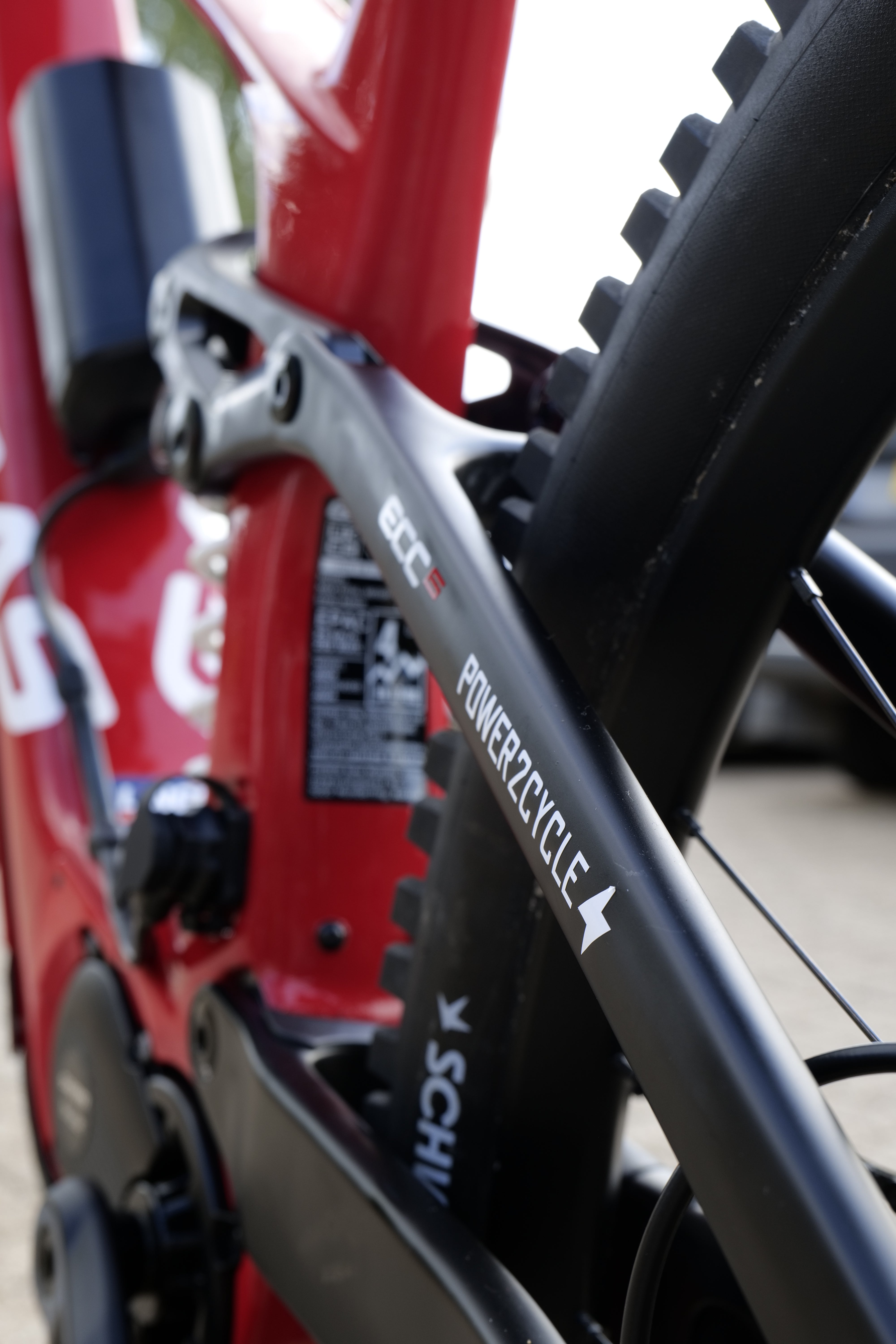

The ECC 6 is GasGas' top tier Enduro E-MTB and we've pushed it even further fitting the bomb proof DT Swiss FR541 rims set up tubeless with Magic Mary and Albert tyres from schwable. Its competition level full-carbon frame features a racing geometry and pairs to size-specific rear-ends. SRAM's drivetrain features a 12-speed XO Eagle Transmission, Code RSC brakes, and wireless RockShox Reverb AXS dropper keeps things clean and uncluttered.

DVO suspension with WP

The ECC 6 comes with totally new WP suspension developed in partnership with DVO. A 170mm travel, 38mm diameter fork and shock feature WP's cone valve technology to optimize traction and control.

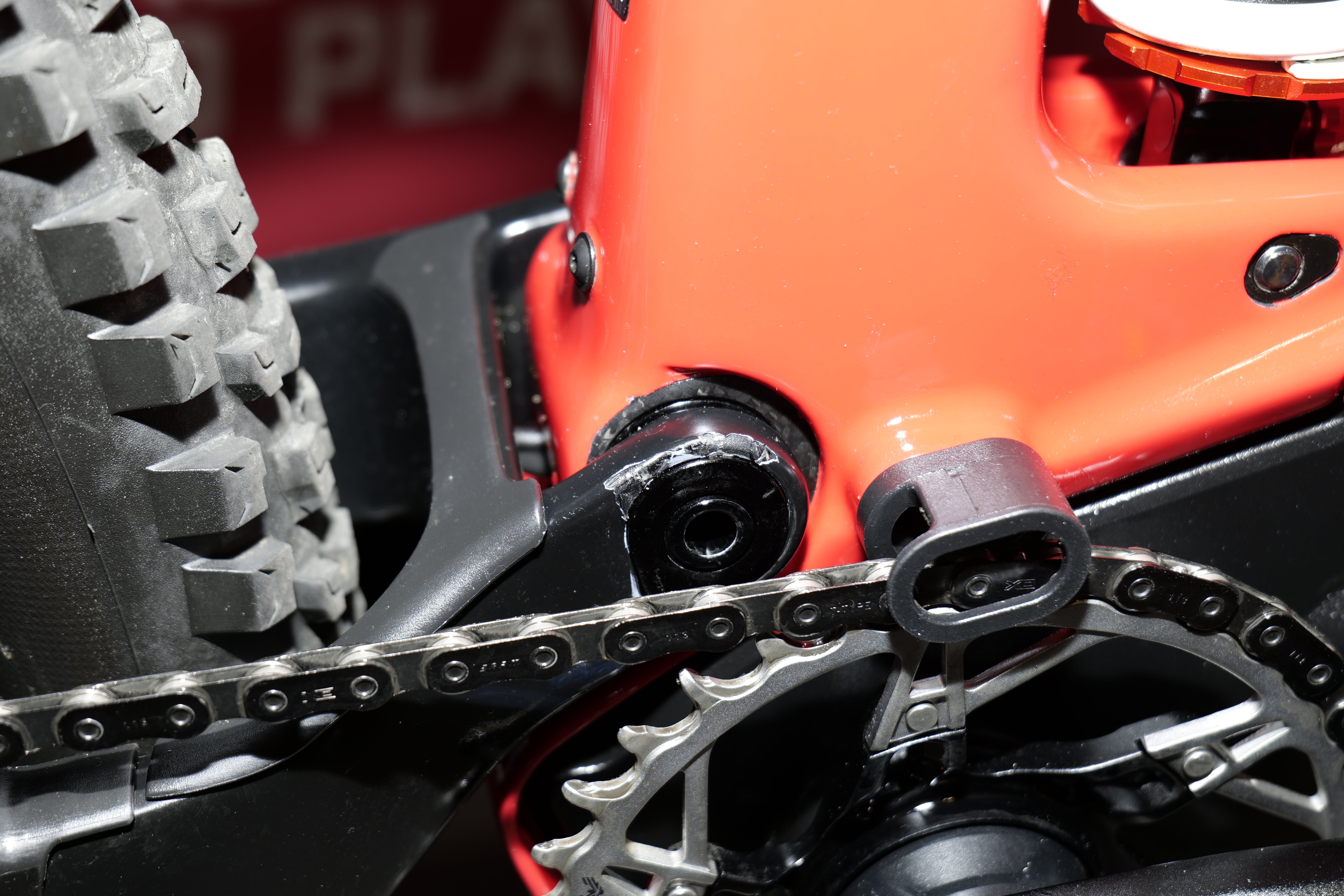

SRAM Eagle Powertrain

The SRAM Eagle Powertrain Drive Unit delivers a superb 90 Nm of torque and 680W peak power. Super quiet, it replicates a natural pedaling experience. Coupled with the 630 Wh SRAM Eagle Powertrain battery ensures a perfect balance of weight and range are met.



MOTOR: SRAM Eagle Powertrain Drive Unit, 90nm

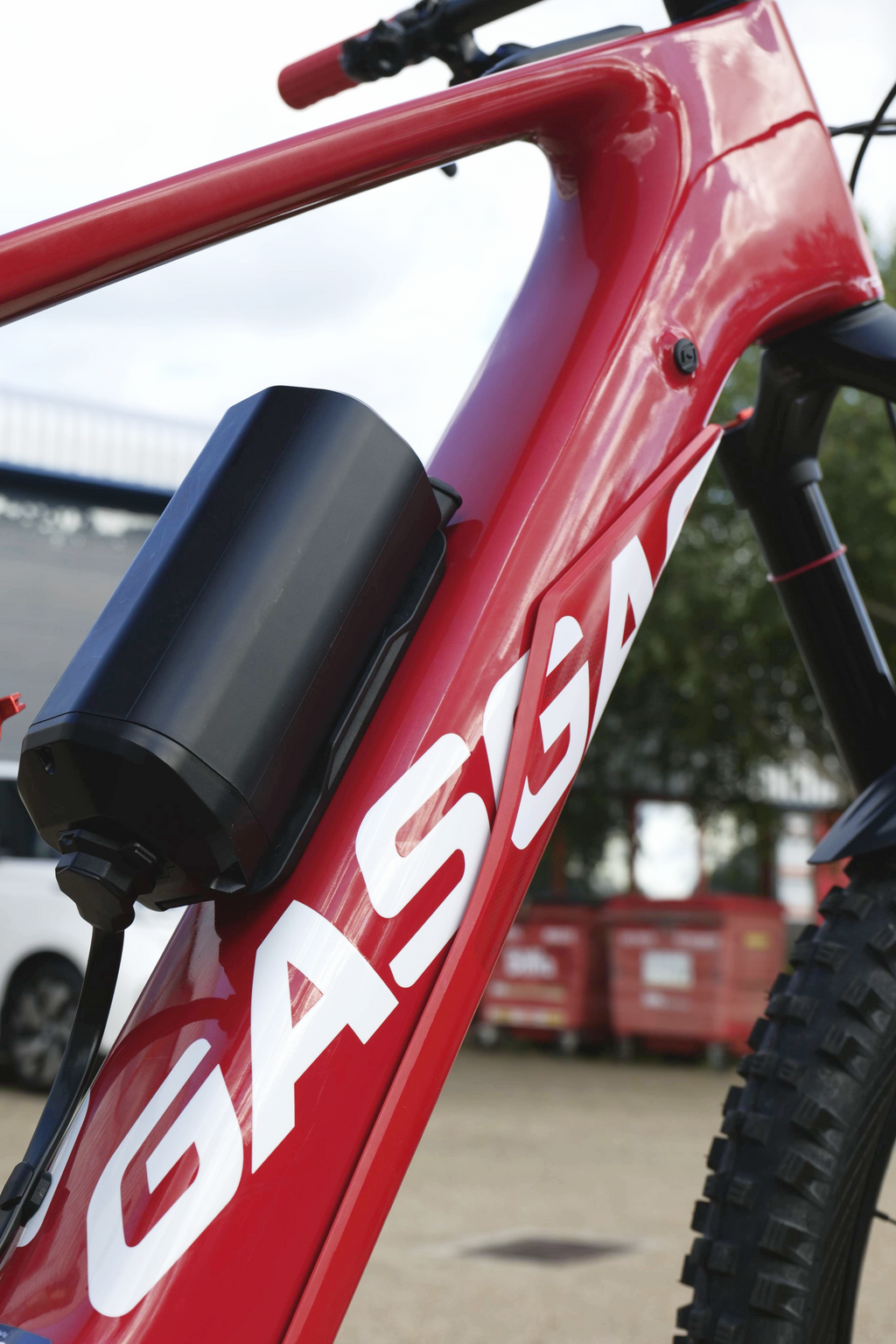

BATTERY: SRAM Eagle Powertrain, 630wh + range extender

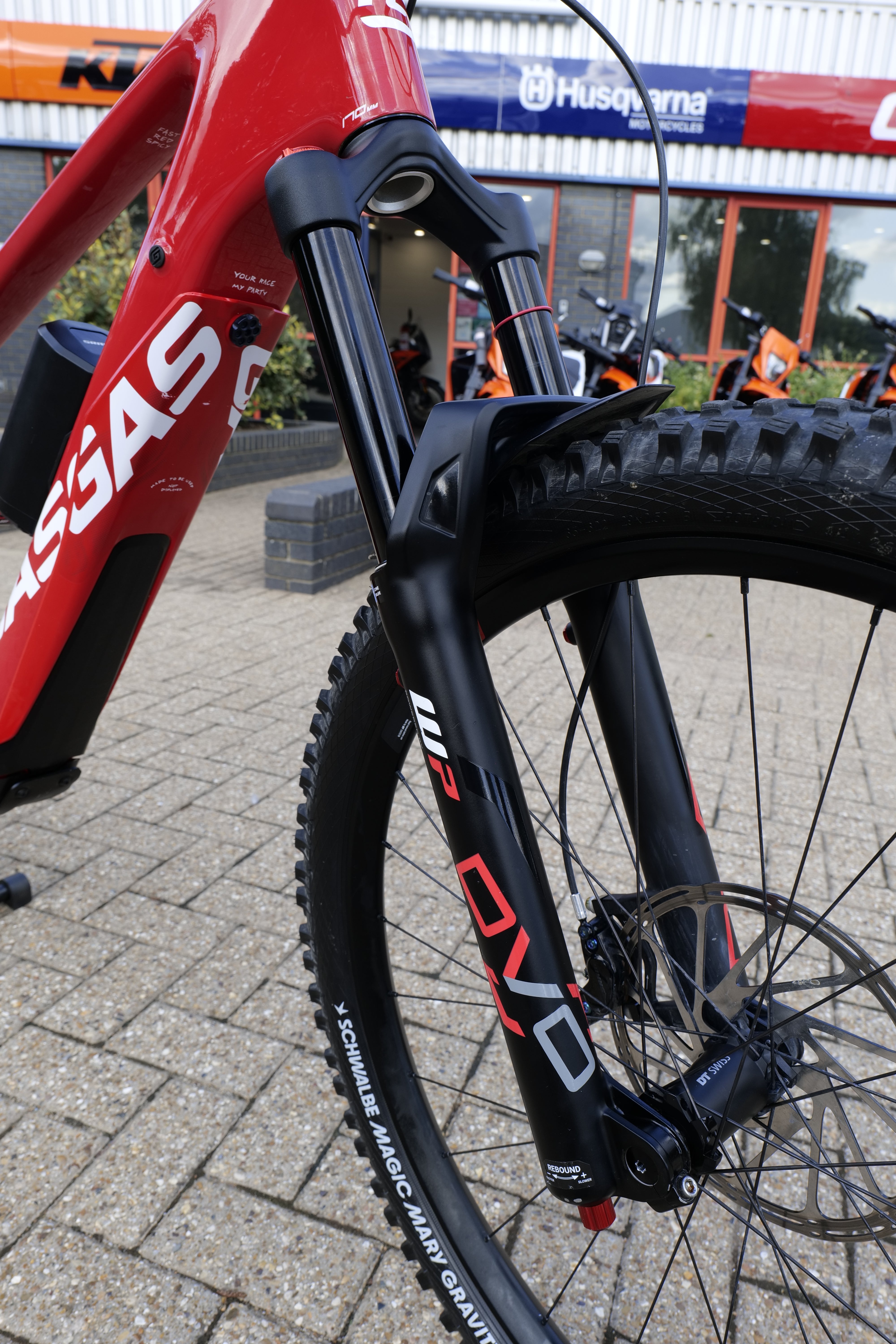

FORK: DVO Onyx D1CV OTT, Air, 170 mm

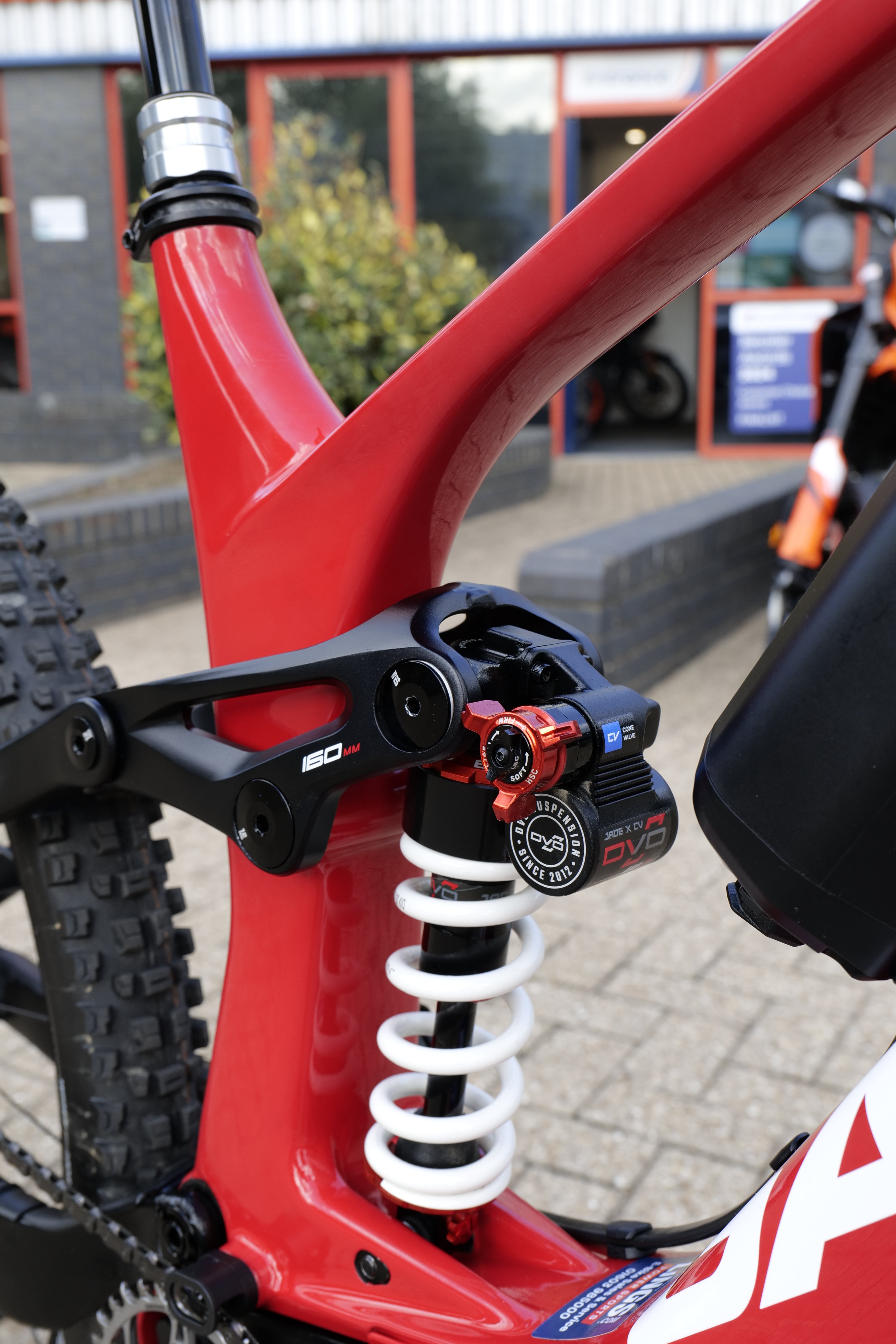

SHOCK: DVO JadeX CV, Coil, 205x65 mm
WHEELS: DT Swiss FR541/DT240
TYRES: Magic Mary Gravity 2.5

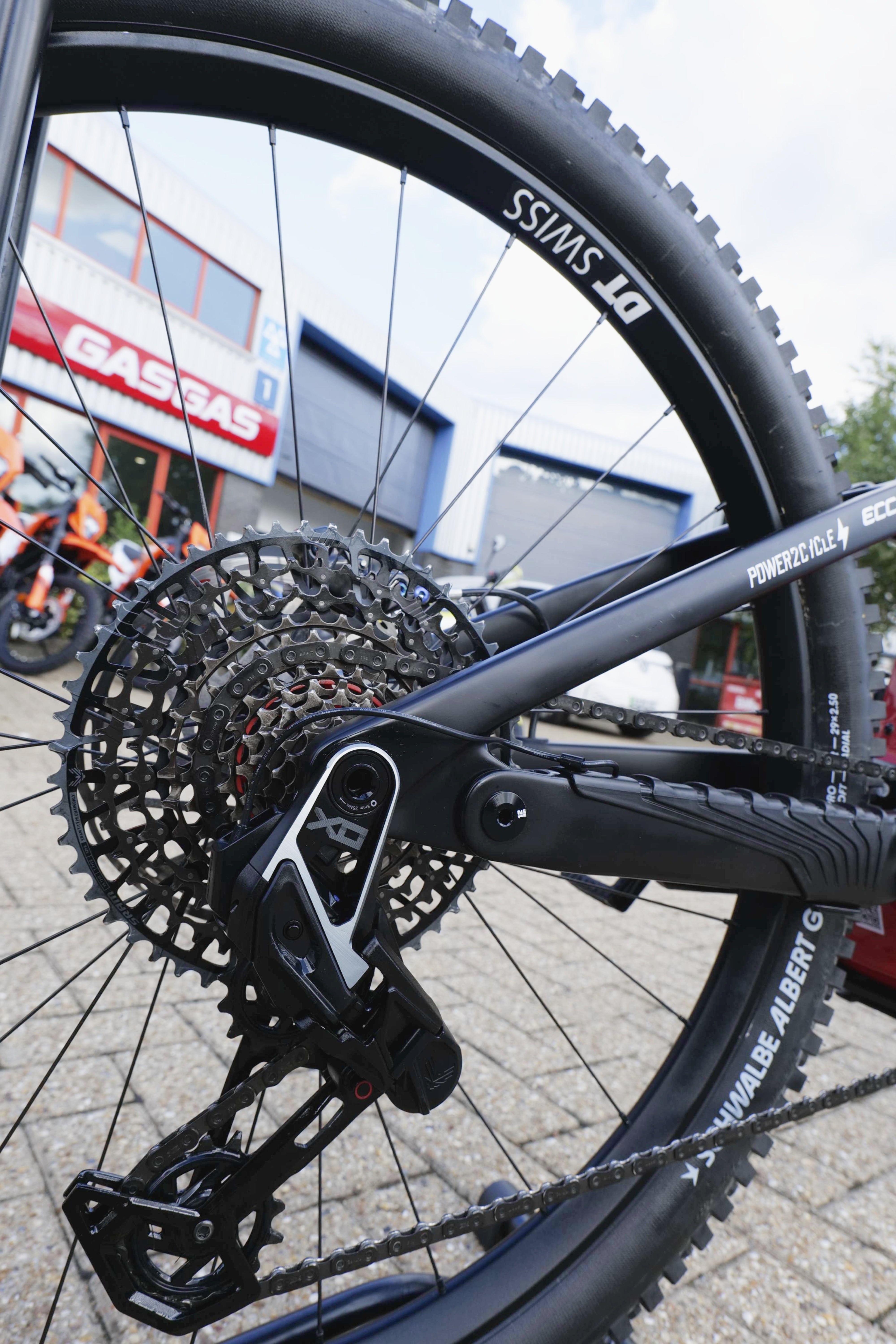

DERAILLEUR: SRAM X0 Eagle Transmission, 12-S
SHIFTER: SRAM AXS Pod Ultimate Controller
CHAIN: SRAM X0 Eagle Transmission Flattop
CASSETTE: SRAM XS-1295, 10-52 T
BRAKES: SRAM Code RSC, 4-piston, Hydraulic disc brake
CRANKSET: SRAM X0 Eagle E-MTB,  SRAM XX

SADDLE: Selle Royal Terra Ridon X5
BARS: NEWMEN Advanced 318.25, 800 mm, Rise: 25 mm
STEM: NEWMEN Evolution 318.4, Ahead
PEDDLES: GASGAS, aluminum
GRIPS: GASGAS MTB, Lock-on grips
SEAT POST: RockShox Reverb AXS

PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG

GEOMETRIES

Bike Size	S/M	M/L	L/XL
Rider size	153 - 186 cm 5'0" - 6'1"	163 - 196 cm 5'3" - 6'4"	178 - 214 cm 5'8" - 7'0"

SIZE	S/M	M/L	L/XL
A - Top Tube Length	588 mm	613 mm	638 mm
B - Seat Tube Length	400 mm	440 mm	470 mm
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual	78° 74.4°	78.25° 75.2°	78.5° 75.5°
D - Head Tube Length	115 mm	130 mm	145 mm
E - Headtube Angle	64°	64°	64°
F - Chain Stay Length	461 mm	465mm	469mm
G - Wheel Base	1257 mm	1289 mm	1325 mm
I - BB-Drop	31.5 mm	31.5 mm	31.5 mm
K - Stack	649 mm	663 mm	676 mm
L - Reach	450 mm	475 mm	500 mm

Please note, occasionally, manufacturers may change the specification without notice.
