Description
Free nationwide delivery - In stock and available!
ECC 5
Specification
| WHEEL SIZE | 29"/622 mm |
| FRAME | Carbon, Integrated Battery, Boost, 160 mm |
| FORK | DVO Onyx D1CV OTT, Air, 170 mm |

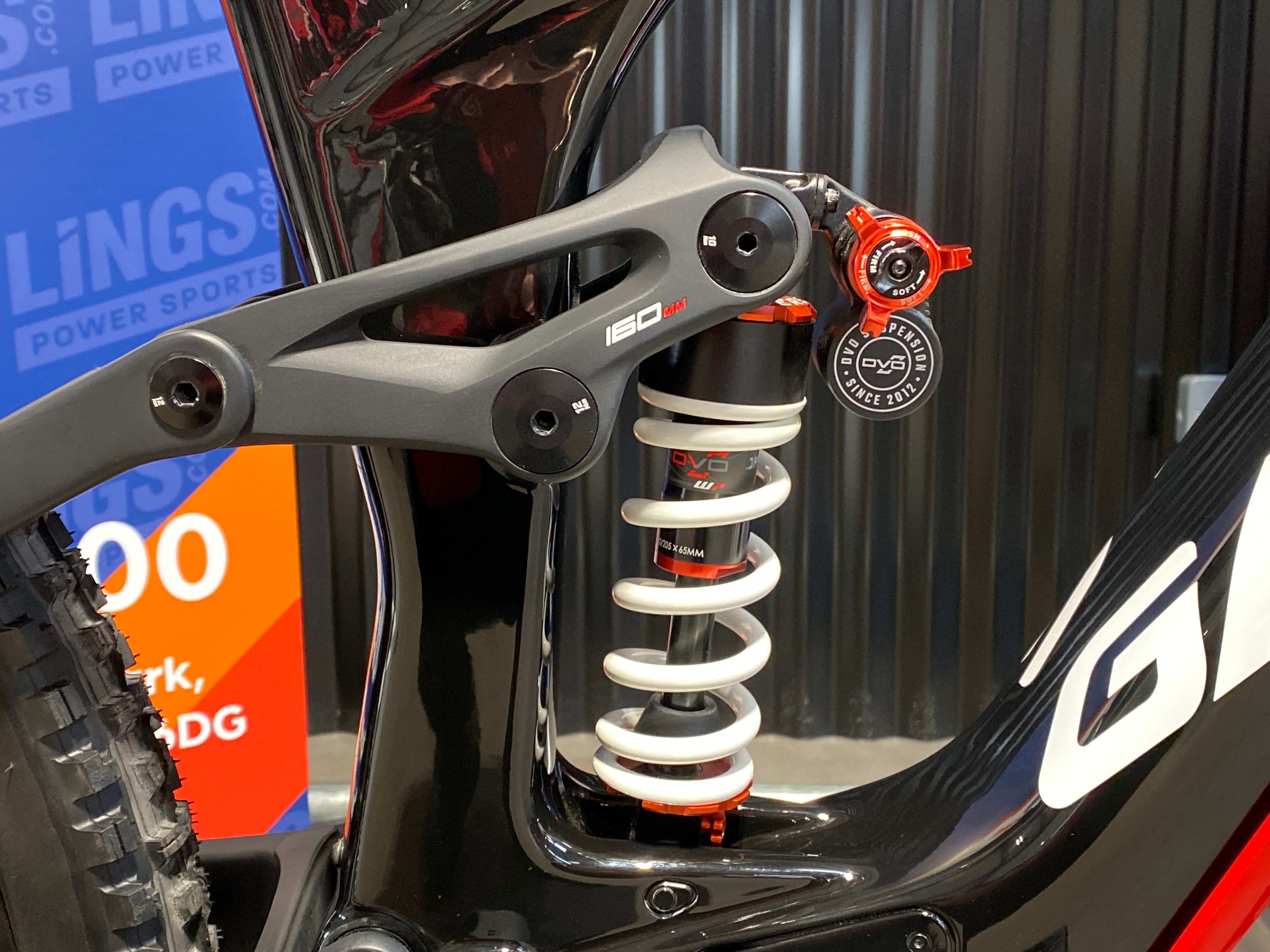

| SHOCK | DVO JadeX CV, Coil, 205x65 mm |
| MOTOR | SRAM Eagle Powertrain Drive Unit, 90nm |
| BATTERY | SRAM Eagle Powertrain, 600wh |
-

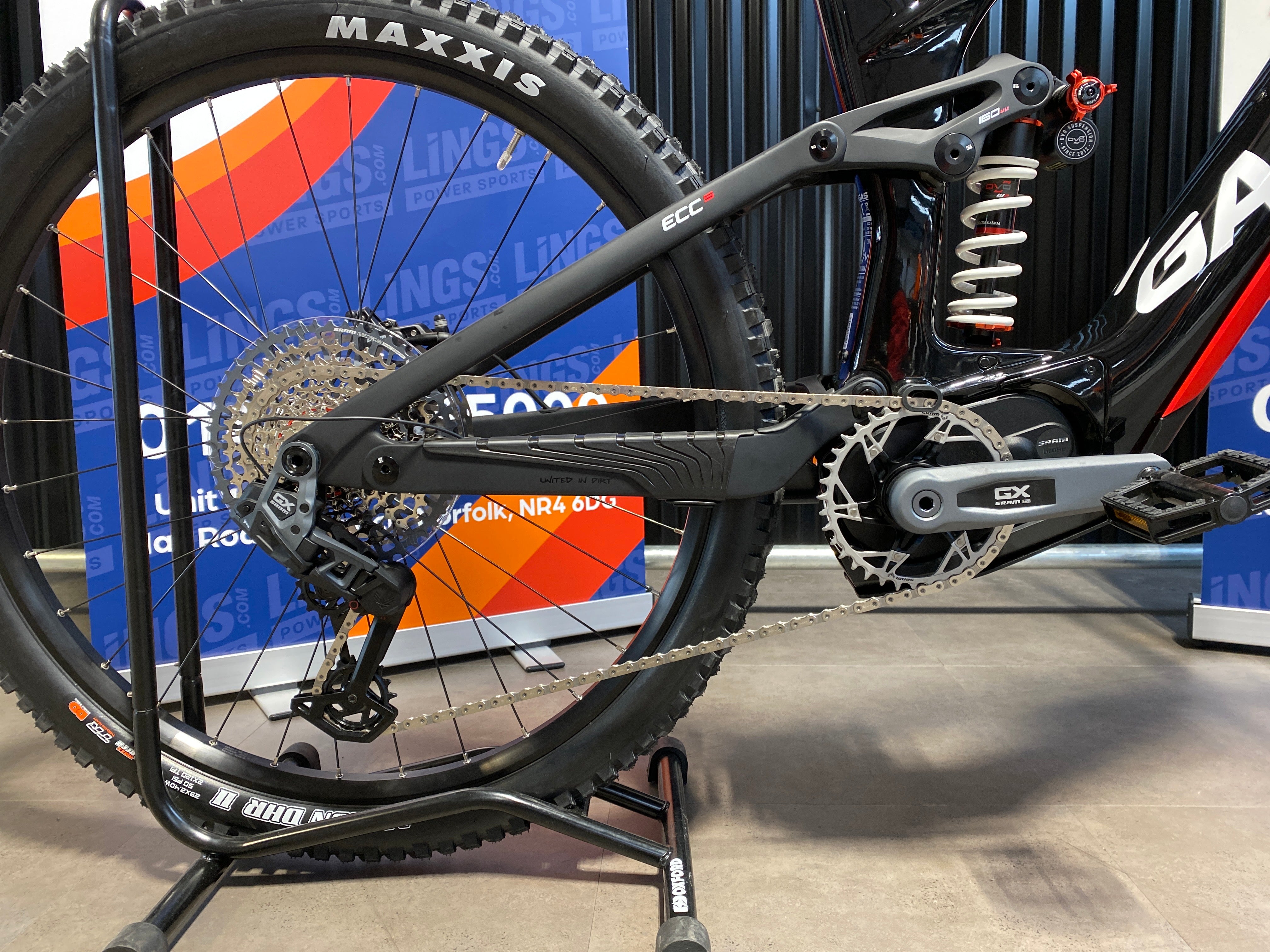

REAR DERAILLEUR: SRAM XO Eagle Transmission, 12-S

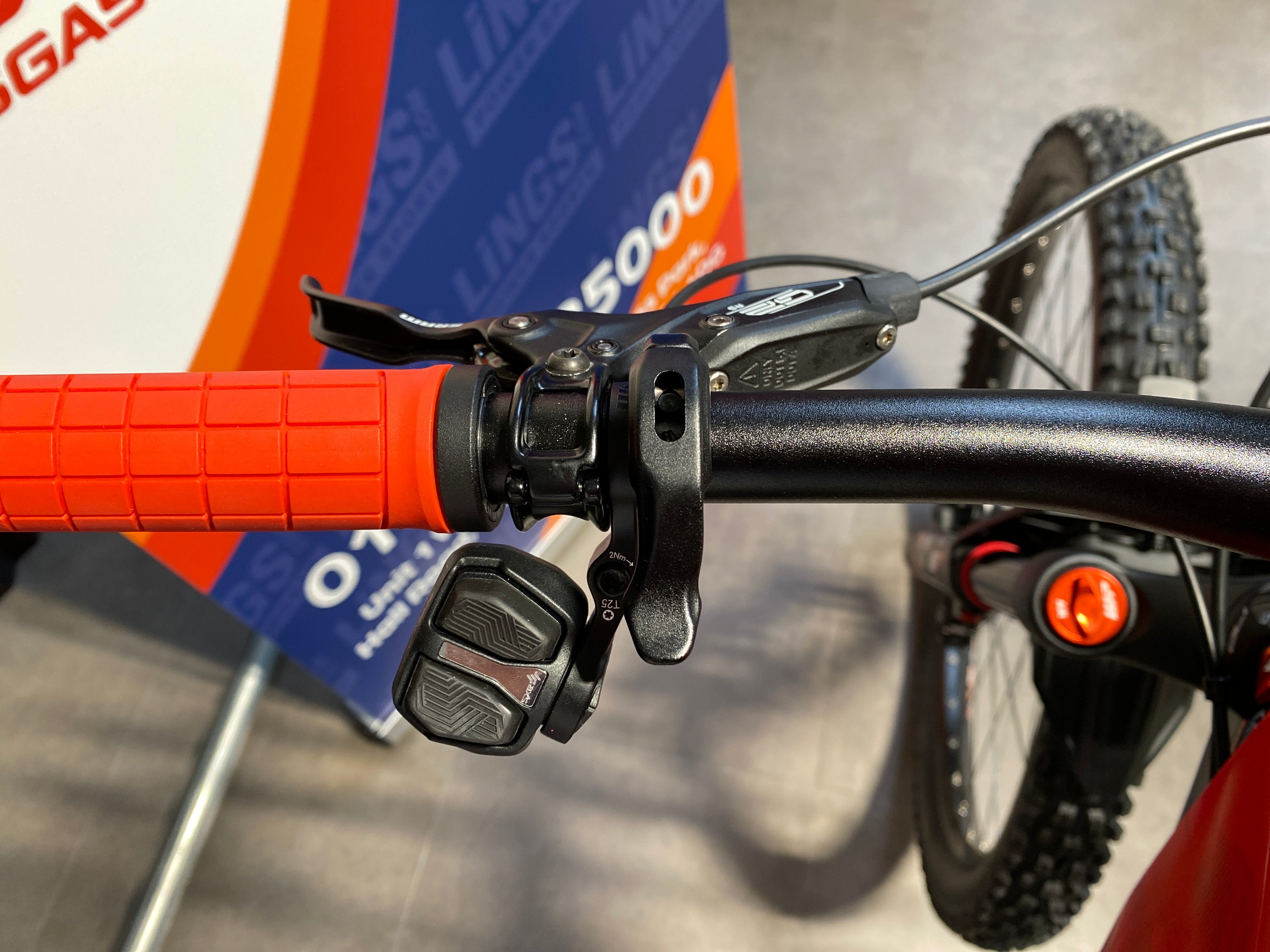

- GEAR SHIFT LEVER: SRAM AXS Pod Ultimate Controller
- CASSETTE: SRAM XS-1295, 10-52 T
- CHAIN: SRAM X0 Eagle Transmission Flattop
- CHAIN RING: SRAM XX Eagle Transmission
- CRANK ARM: SRAM X0 Eagle eMTB
- PEDALS: GASGAS, aluminium
- BRAKES: SRAM Code RSC, 4-piston, Hydraulic disc brake
- STEM: NEWMEN Evolution 318.40, Ahead
- HANDLEBAR: NEWMEN Advanced 318.25, 800 mm, Rise: 25 mm
- GRIPS: GASGAS MTB, Lock-on grips

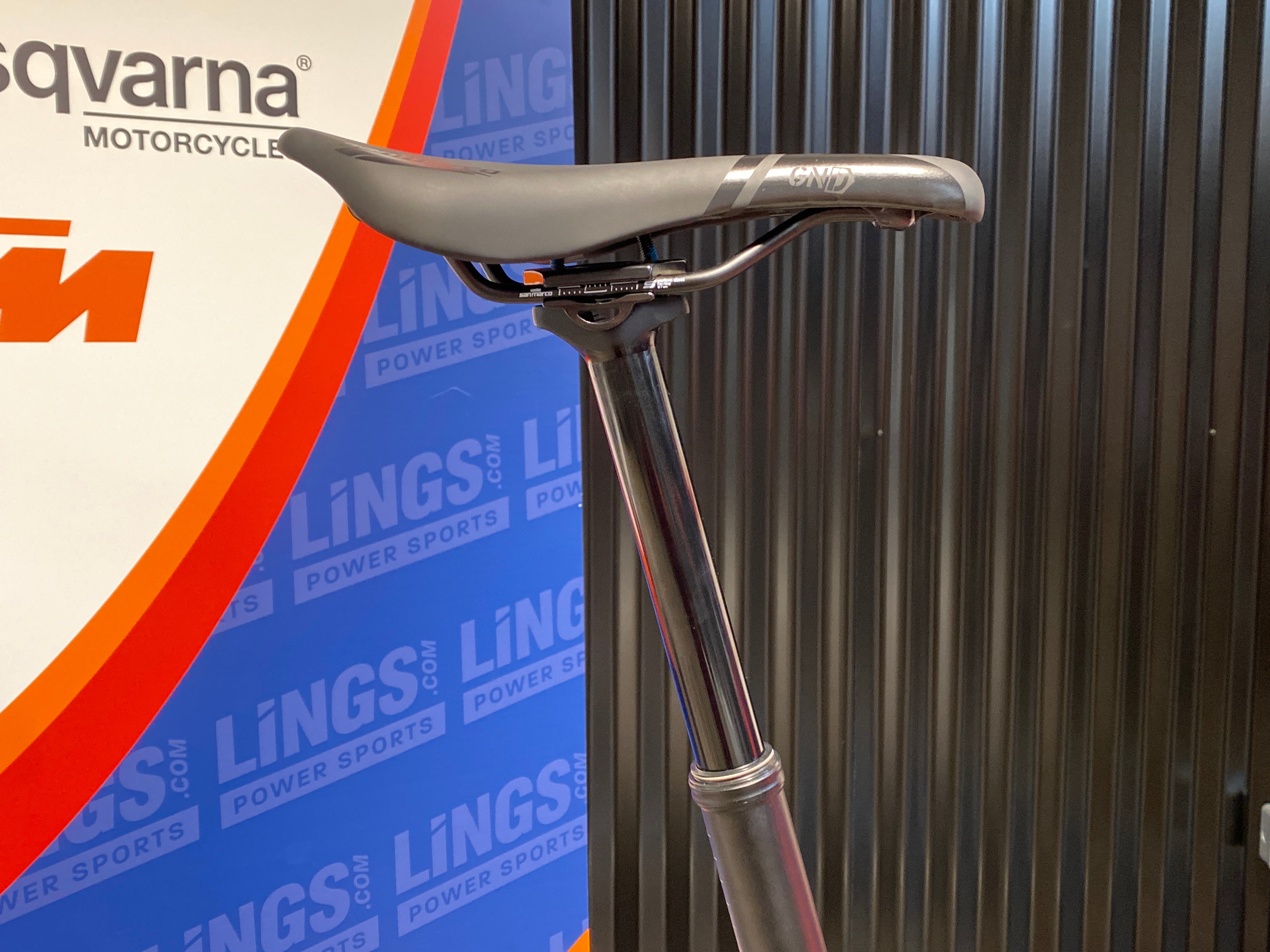

- SEAT POST: RockShox Reverb AXS
- SADDLE: Selle Royal Terra Ridon X5
- WHEELS: NEWMEN Evolution SL E.G. 30, Tubeless read
- FRONT TYRE: Maxxis Assegai, 63-622, 29x2.5
- REAR TYRE: Maxxis Minion DHR II, 62-622, 29x2.4
- FRAME COLOR: Electronic Red
- TRAILER APPROVAL: No
- CHARGER: SRAM Eagle Powertrain Charger
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg

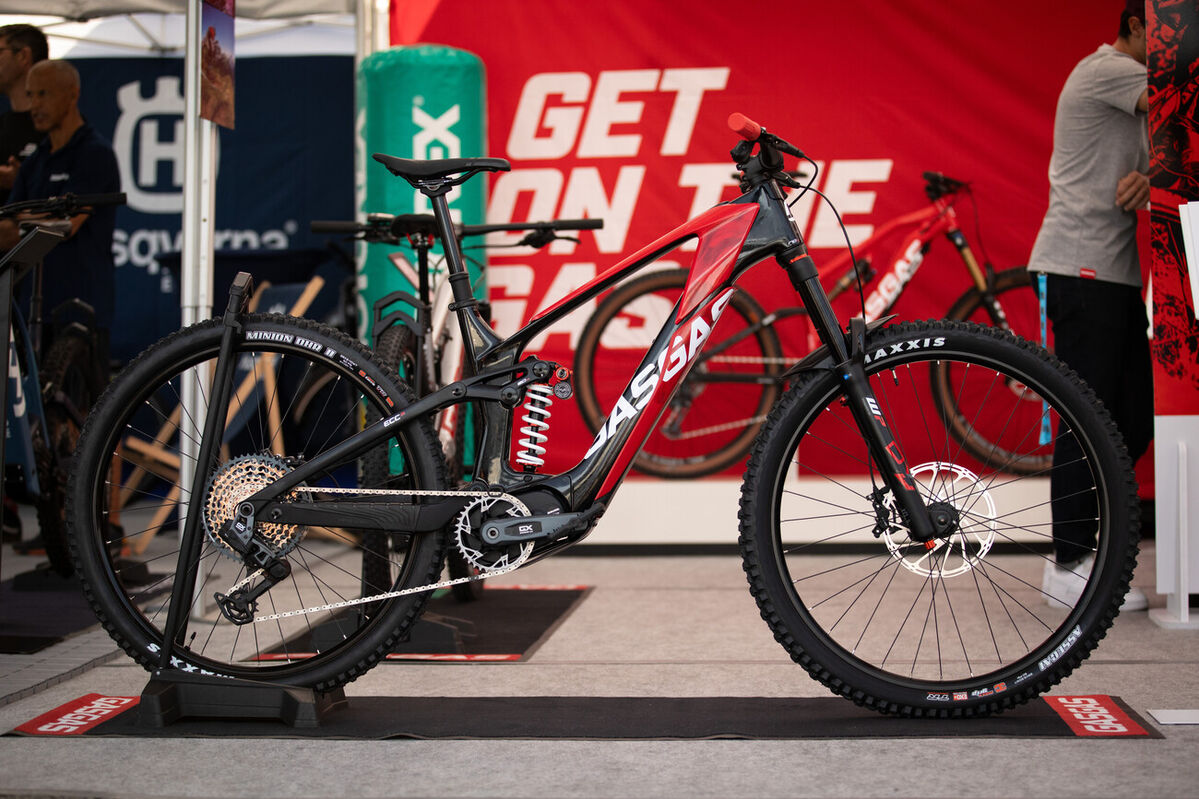

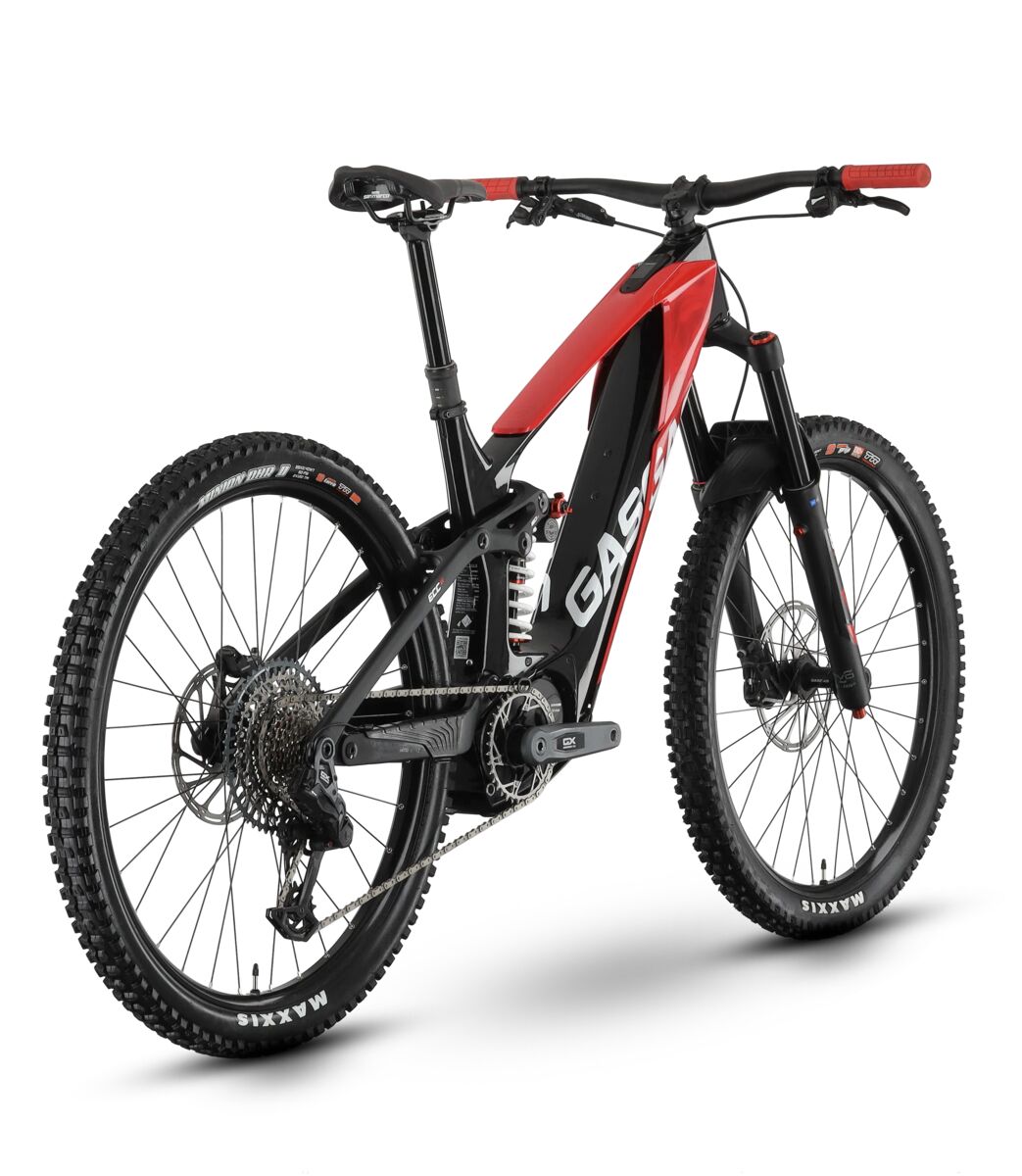

The ECC 5 is the second tier model in our totally new ECC E-Enduro range. The chassis mirrors that of the ECC 6 with a complete carbon frame and 160mm travel. Size-specific rear triangles are again standard, helping to raise the bar of a tailored ride feel and incredible trail agility.

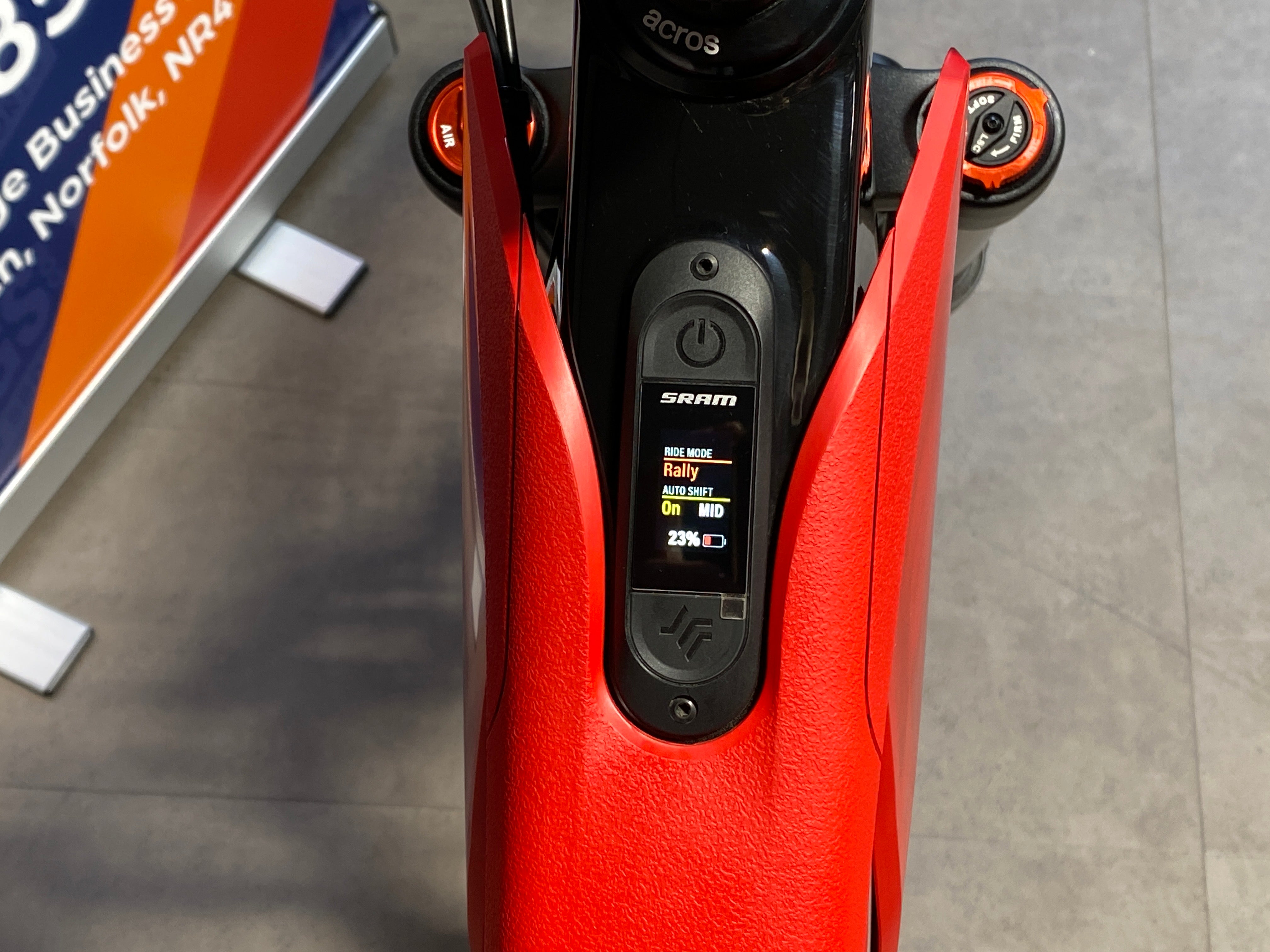

The eagerly awaited SRAM Eagle Powertrain Drive Unit delivers the ultimate pedal-assist technology on the market. Super-quiet, its 90Nm of torque and 680W peak power creates a natural pedalling experience. The discreet SRAM Eagle Powertrain AXS Bridge Display is mounted in the top tube, with a SRAM Eagle Powertrain 600Wh battery in the downtube.
In partnership with DVO, suspension is a 170mm WP 38CV SL air fork and WP CV Coil HLC rear shock.

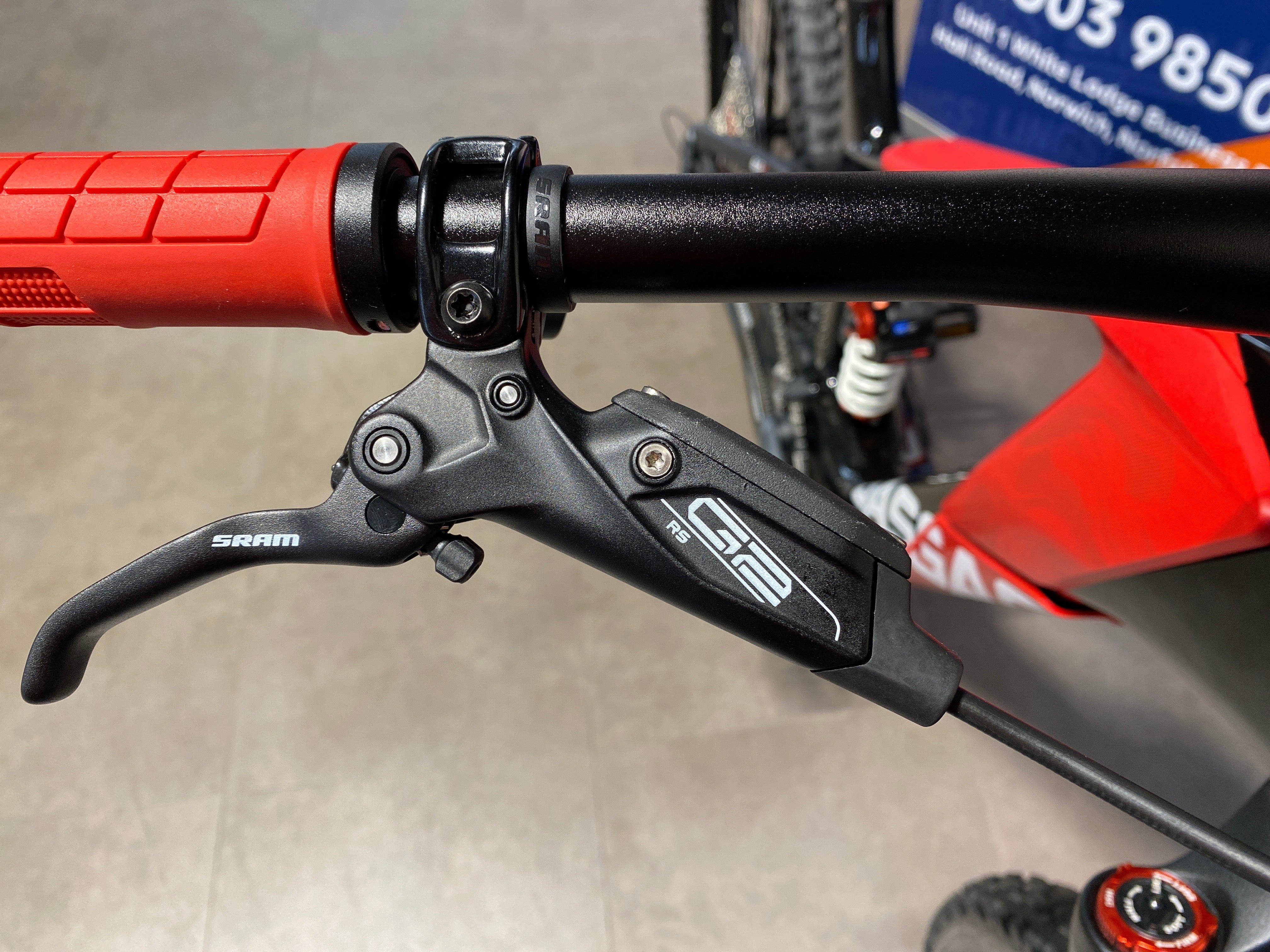

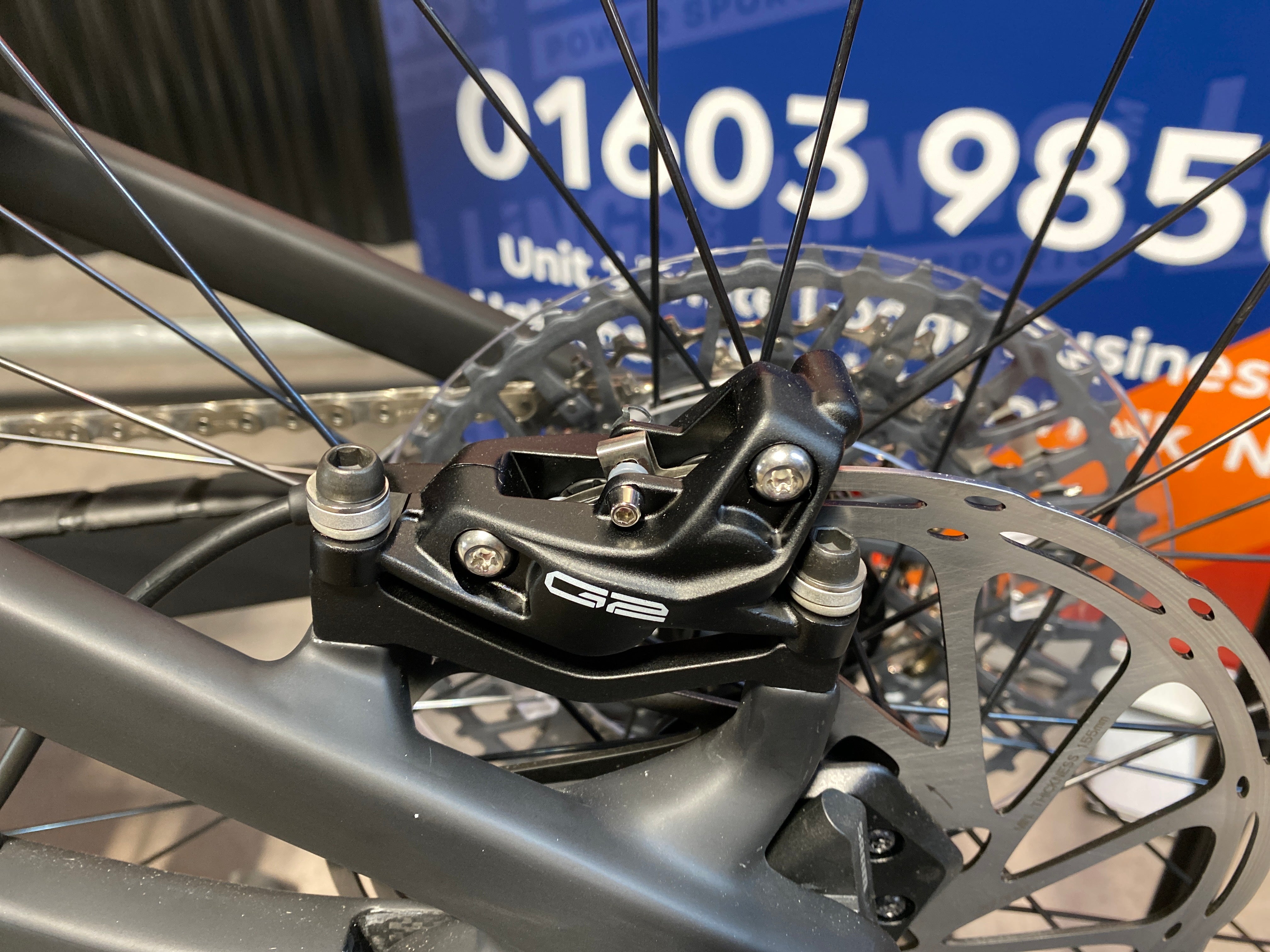

Components include a 12-speed SRAM GX Eagle Transmission drivetrain with SRAM AXS Pod Ultimate Controller, 4-piston SRAM G2 RS brakes with 200mm rotors and Maxxis rubber.
GEOMETRIES
| SIZE | S/M | M/L | L/XL | |
| A - Top Tube Length | 588 mm | 613 mm | 638 mm | |
| B - Seat Tube Length | 400 mm | 440 mm | 470 mm | |
|
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual |
78° 74.4° |
78.25° 75.2° |
78.5° 75.5° |
|
| D - Head Tube Length | 115 mm | 130 mm | 145 mm | |
| E - Headtube Angle | 64° | 64° | 64° | |
| F - Chain Stay Length | 461 mm | 465mm | 469mm | |
| G - Wheel Base | 1257 mm | 1289 mm | 1325 mm | |
| I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm | |
| K - Stack | 649 mm | 663 mm | 676 mm | |
| L - Reach | 450 mm | 475 mm | 500 mm |
