Description
Free nationwide delivery!
ECC 4
Specification
| WHEEL SIZE | 29"/622 mm |
| FRAME | Carbon, Integrated Battery, Boost, 160 mm |
| FORK | RockShox ZEB Select+, DebonAir+, Air, 170 mm |
| SHOCK | RockShox Super Deluxe Select+, Coil, 205x65 mm |
| MOTOR | SRAM Eagle Powertrain Drive Unit, 90nm |
| BATTERY | SRAM Eagle Powertrain, 600wh |
-
REAR DERAILLEUR: SRAM GX Eagle, 12-S
- GEAR SHIFT LEVER: SRAM SX Eagle, Single Click
- CASSETTE: SRAM PG-1210, 11-50 T
- CHAIN: SRAM SX Eagle
- CHAIN RING: SRAM XX Eagle Transmission
- CRANK ARM: SRAM GX Eagle eMTB
- PEDALS: GASGAS, aluminium

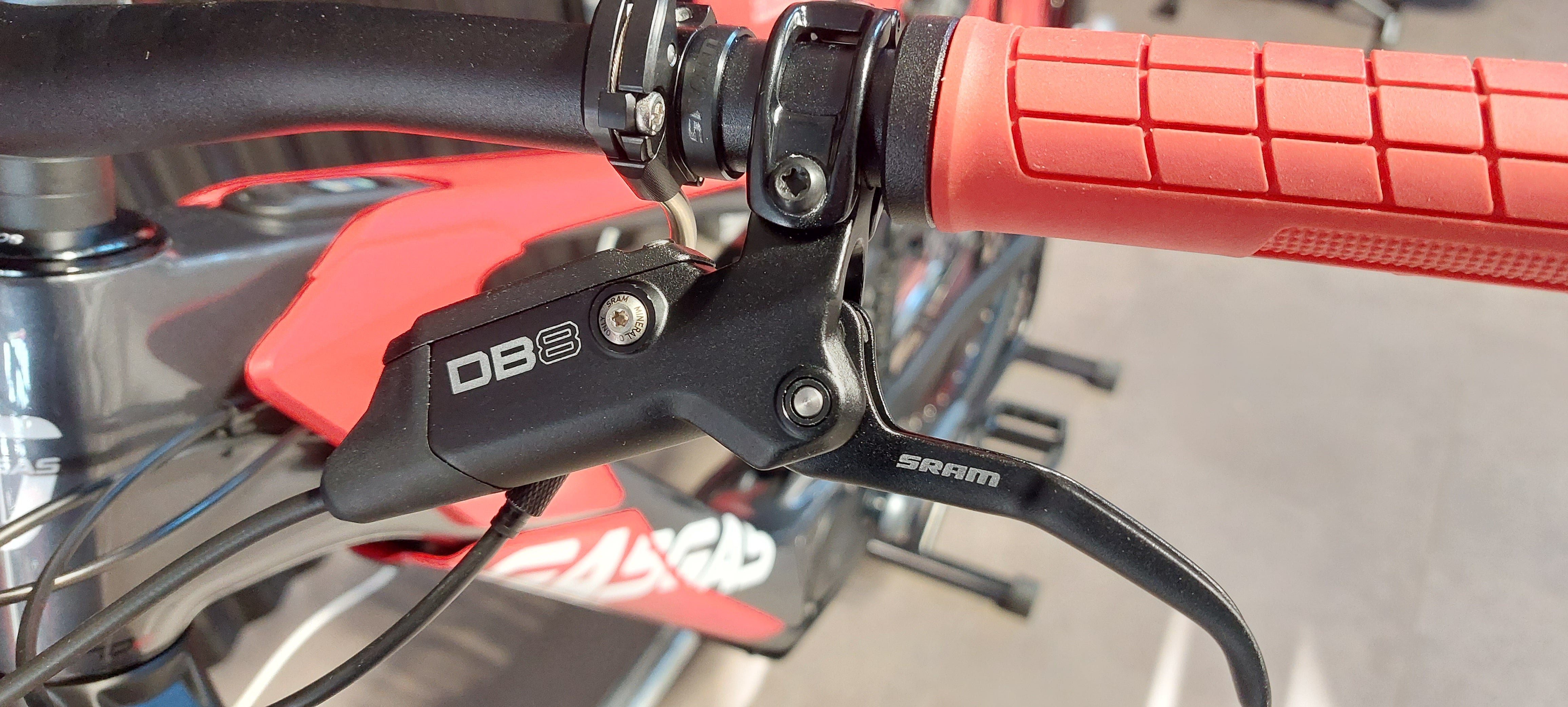

- BRAKES: SRAM DB8, 4-piston, Hydraulic disc brake
- STEM: GASGAS 35, 0 °, Ahead
- HANDLEBAR: GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm

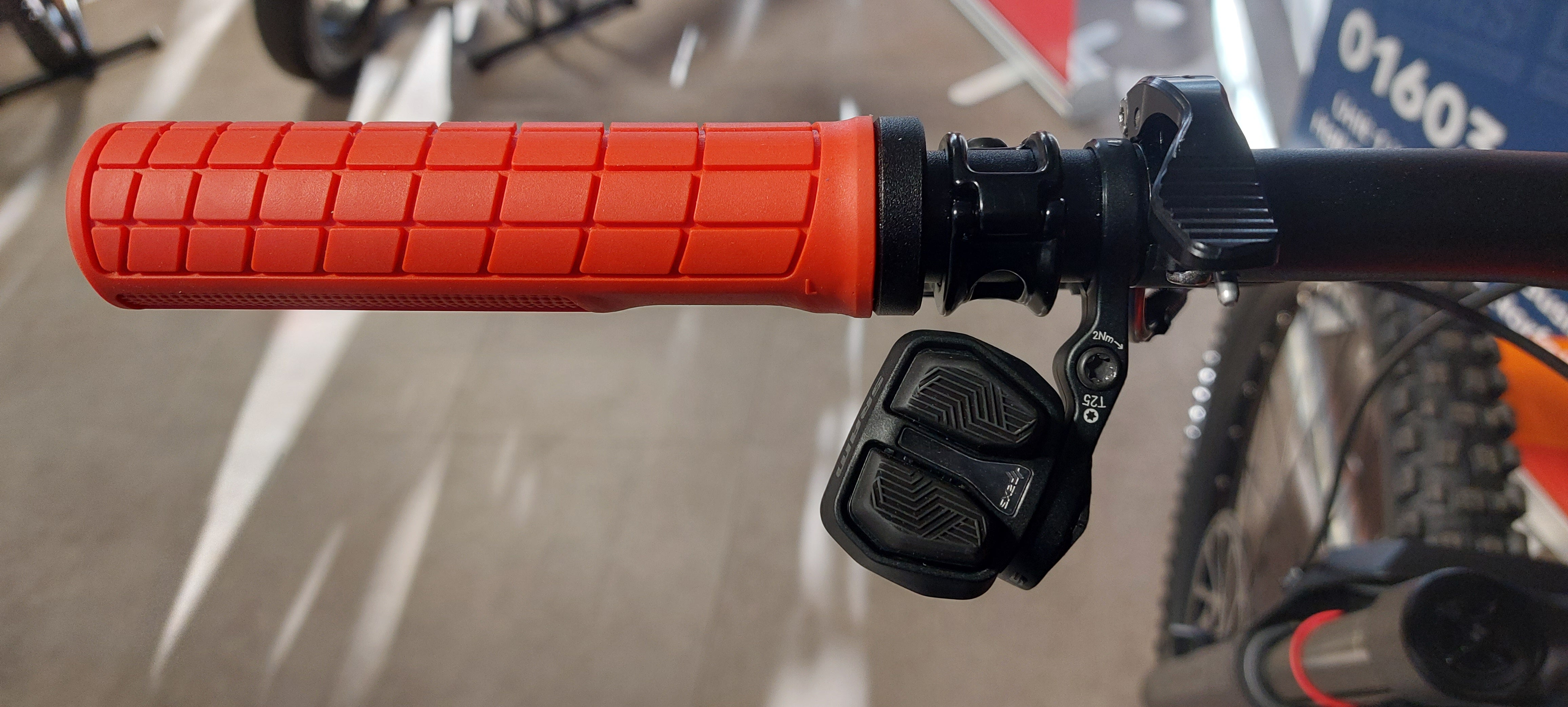

- GRIPS: GASGAS MTB, Lock-on grips
- SEAT POST: GASGAS Pro, 34.9 mm, Dropper post

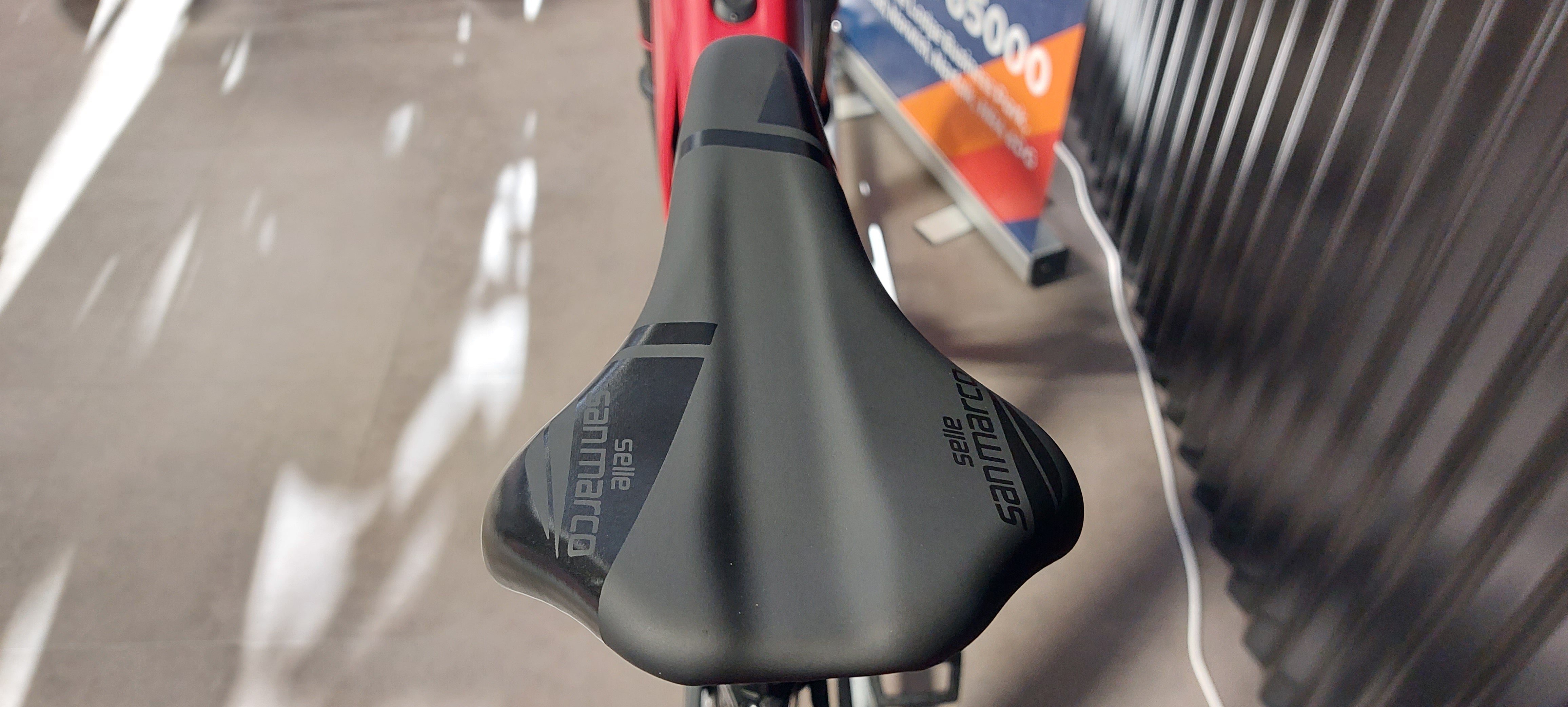

- SADDLE: Selle San Marco GND
- WHEELS: Mach 1 TRUCKY 30, Tubeless ready
- FRONT TYRE: Maxxis Assegai, 63-622, 29x2.5
- REAR TYRE: Maxxis Minion DHR II, 62-622, 29x2.4
- FRAME COLOR: Anthracite Metallic / Sangria Red
- TRAILER APPROVAL: No
- CHARGER: SRAM Eagle Powertrain Charger
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg
The ground-breaking ECC 4 completes our all-new E-Enduro eMTB range. With race proven, World Cup podium pedigree, the carbon frame, with size-specific rear triangle, creates an unrivalled ride feel that delivers superb handling on the toughest of trails.

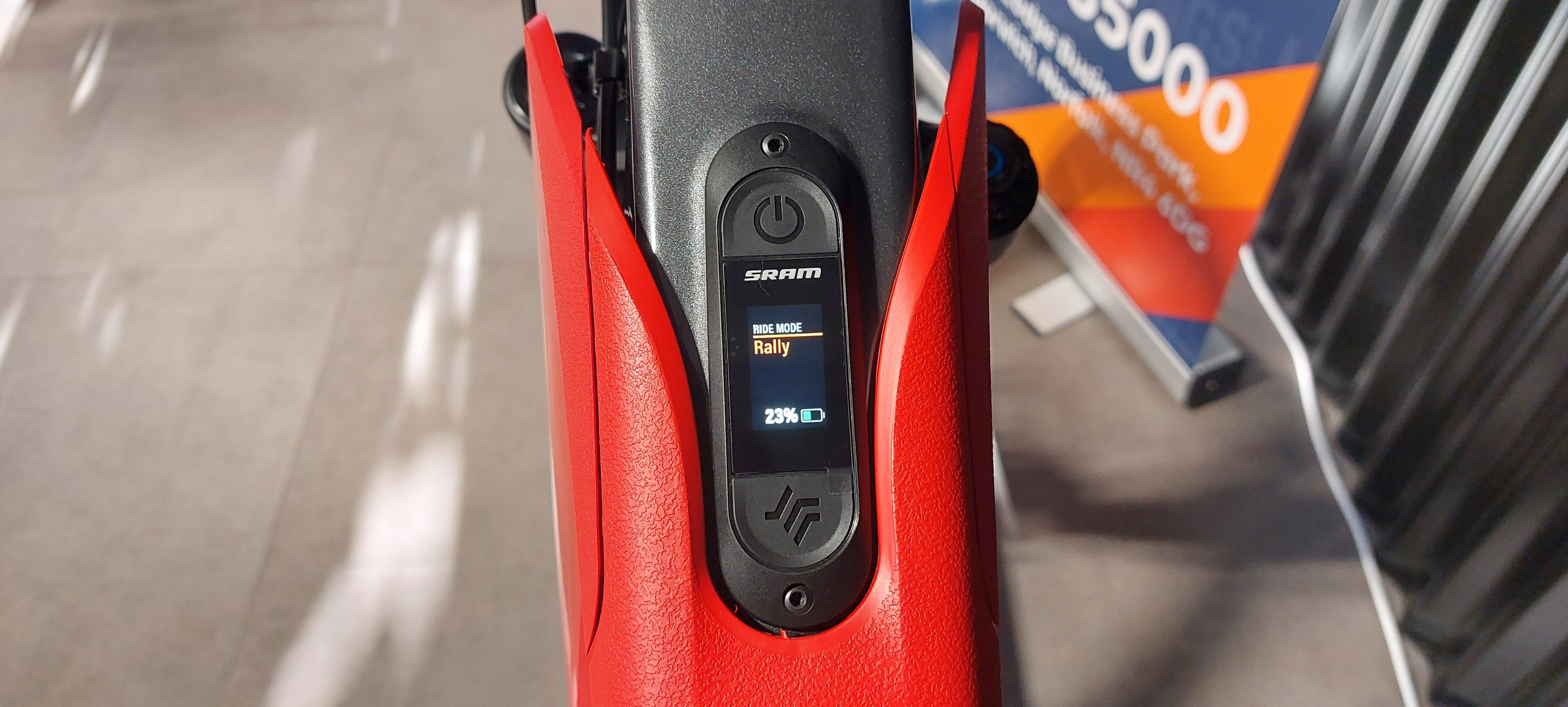

The highly anticipated SRAM Eagle Powertrain Drive Unit puts out 90Nm of torque and 680Wh peak power when you need it most. The battery is a 600Wh SRAM Eagle Powertrain. The top tube mounted SRAM Eagle Powertrain AXS Bridge Display displays all the key info you need, without creating a distraction on the trail.

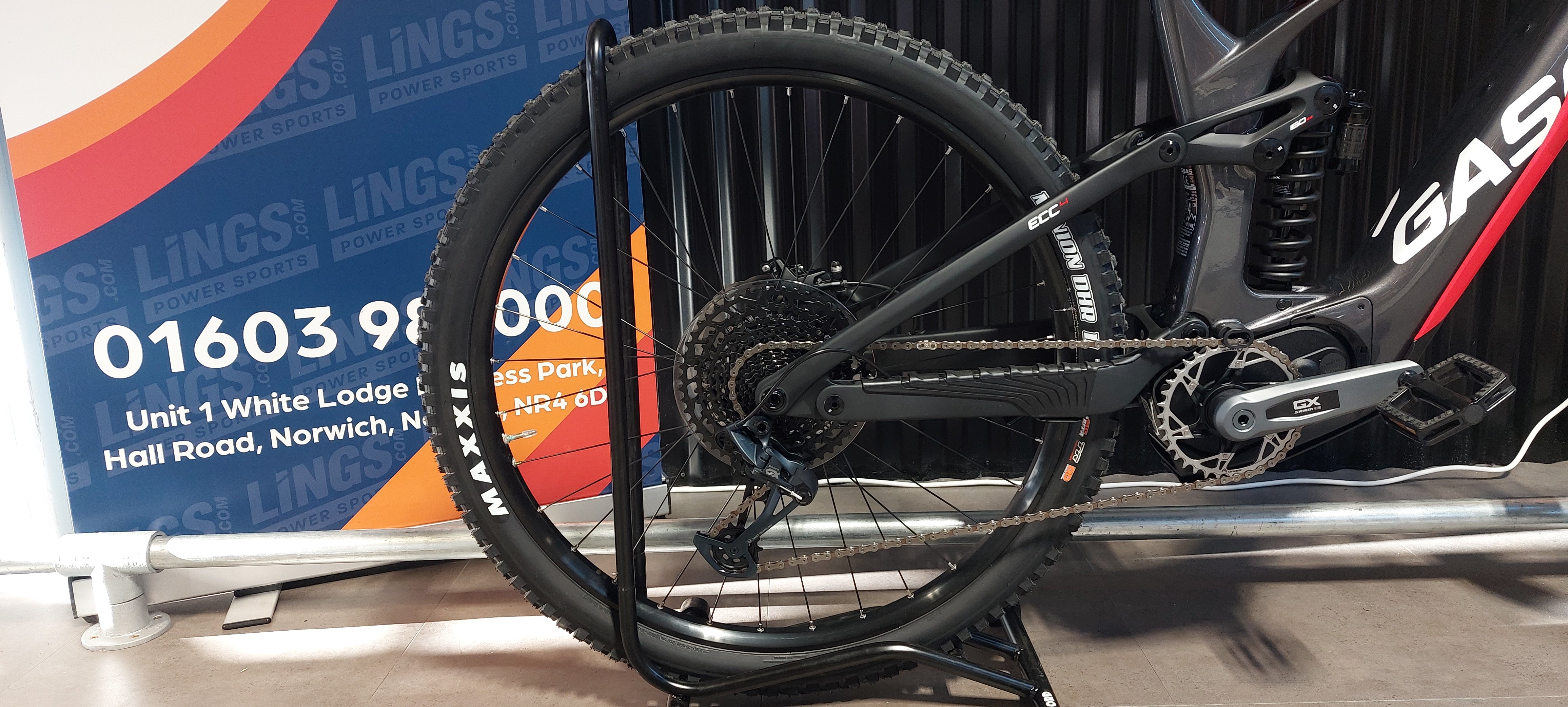

The SRAM components keep coming on the ECC 4 with a 12-speed GX Eagle drivetrain and GX Eagle crank arms, SRAM DB8 brakes sit on 200mm SRAM Centerline rotors.

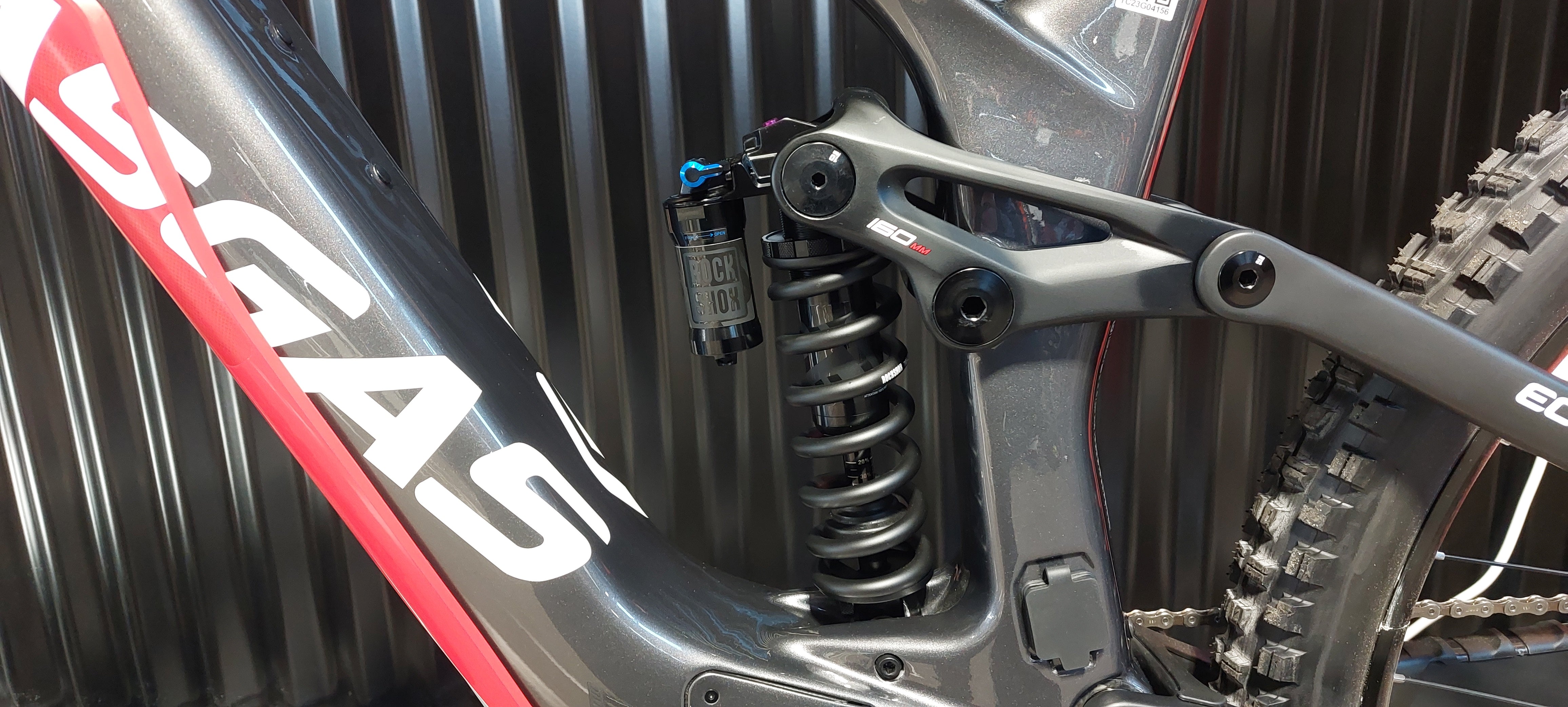

Enduro thrills are guaranteed thanks to a 170mm Rockshox ZEB Select+ front fork, with 160mm Super Deluxe Select+ rear coil shock.
GEOMETRIES
| SIZE | S/M | M/L | L/XL | |
| A - Top Tube Length | 588 mm | 613 mm | 638 mm | |
| B - Seat Tube Length | 400 mm | 440 mm | 470 mm | |
|
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual |
78° 74.4° |
78.25° 75.2° |
78.5° 75.5° |
|
| D - Head Tube Length | 115 mm | 130 mm | 145 mm | |
| E - Headtube Angle | 64° | 64° | 64° | |
| F - Chain Stay Length | 461 mm | 465mm | 469mm | |
| G - Wheel Base | 1257 mm | 1289 mm | 1325 mm | |
| I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm | |
| K - Stack | 649 mm | 663 mm | 676 mm | |
| L - Reach | 450 mm | 475 mm | 500 mm |
