Supplemental GasGas manuals can be found below. If you have specific technical questions, please contact us directly.
|
Current Model Year |
Previous Model Year |
|
Bicycle/Pedelec (CMY) |
City/Trekking (PMY) |
|
|
E-Bike (PMY) |
|
|
MTB (PMY) |
| Technical Instructions |
|
Bafang H550 Manual Drive System (Download)
|
| Torque ECC, MXC Service Information (Download) |
| YAMAHA Manual Drive System (Download) |
Supplemental Husqvarna manuals can be found below. If you have specific technical questions, please contact us directly.
|
Current Model Year |
Previous Model Year |
|
Bicycle/Pedelec (CMY) |
City/Trekking (PMY) |
|
|
E-Bike (PMY) |
|
|
MTB (PMY) |
Bosch Western Europe |
Drive Unit |
|
Drive Unit Performance Line (Download) |
|
Drive Units Active Line/Active Line Plus/Performance Line (Download) |
Display |
|
Display Mount (Download) |
|
Kiox 300 (Download) |
|
LED Remote (Download) |
Battery Pack |
|
PowerPack 300 | 400 | 500 & PowerTube 400 | 500 | 625 (Download) |
|
PowerTube 500 | 625 | 750 & PowerPack 545 | 725 (Download) |
Charger |
|
Charger BPC3400 (Download) |
|
Charger BCS220 | BCS230 | BCS250 (Download) |
| Bosch Eastern Europe |
Drive Unit |
|
Drive Unit Performance Line (Download) |
|
Drive Units Active Line/Active Line Plus/Performance Line (Download) |
Display |
|
Display Mount (Download) |
|
Kiox 300 (Download) |
|
LED Remote (Download) |
Battery Pack |
|
PowerPack 300 | 400 | 500 & PowerTube 400 | 500 | 625 (Download) |
|
PowerTube 500 | 625 | 750 & PowerPack 545 | 725 (Download) |
Charger |
|
Charger BPC3400 (Download) |
|
Charger BCS220 | BCS230 | BCS250 (Download) |
| Shimano Support |
| Shimano manuals (Download) |
| Nm | |||||
|---|---|---|---|---|---|
| General | Shimano | SRAM | Magura | Tektro | |
| Stem (all) | 6 - 8 | - | - | - | - |
| Dropper Post Lever | 2 - 4 | - | - | - | - |
| Brake Levers | 5 - 8 | 6 - 8 | 5 - 7 | 4 | 6 - 8 |
| Shift Lever | 4 - 6 | 4 - 6 | 5 - 6 | - | 2 - 3 |
| Front Thru Axle | Quick-Realease is tighten with lever resistance when closing. | ||||
| Dropout Pinch Bolt | Follow the specs written on the components or follow the specs described on the components manufacturers manual. | ||||
| Brake Caliper - Front & Rear | 6 - 10 | 6 - 10 | 9 - 10 | 6 | 6 - 8 |
| Battery Cover Locking Knob | 3 - 4 | - | - | - | - |
| Seatpost Clamp | 5 - 6 | - | - | - | - |
| Crank Arms | Follow the specs written on the components or follow the specs described on the components manufacturers manual. | ||||
| Pedals | 30 - 35 | - | - | - | - |
| Rear Thru Axle | 12 - 15 | - | - | - | - |
| Rear Derailleur | 8 - 12 | 8 - 10 | 11 | - | 10 - 12 |
| GasGas Torque Specifications |
| Enduro |
| All Mountain |
| Trail |
| Trekking |
DISCLAIMER Always follow the torque measurements written on the components or refer to the components manufacturer manual.
TORQUE SPECS GENERAL INFO In general fasteners from different components are designed for a certain range of tension, following the general torque specs shared here is a good way to ensure proper tension.
THREAD LOCKING COMPOUND Some fasteners might need the use of a thread locking compound to remain in place and avoid from becoming loose. Always check if there is any thread locking compound residue on the screw when setting up or servicing a bike, make sure to re-apply thread locking compound to ensure proper tightness.
Some examples are, suspension pivot screws, disc brake calipers, 6 bolt rotors, etc.

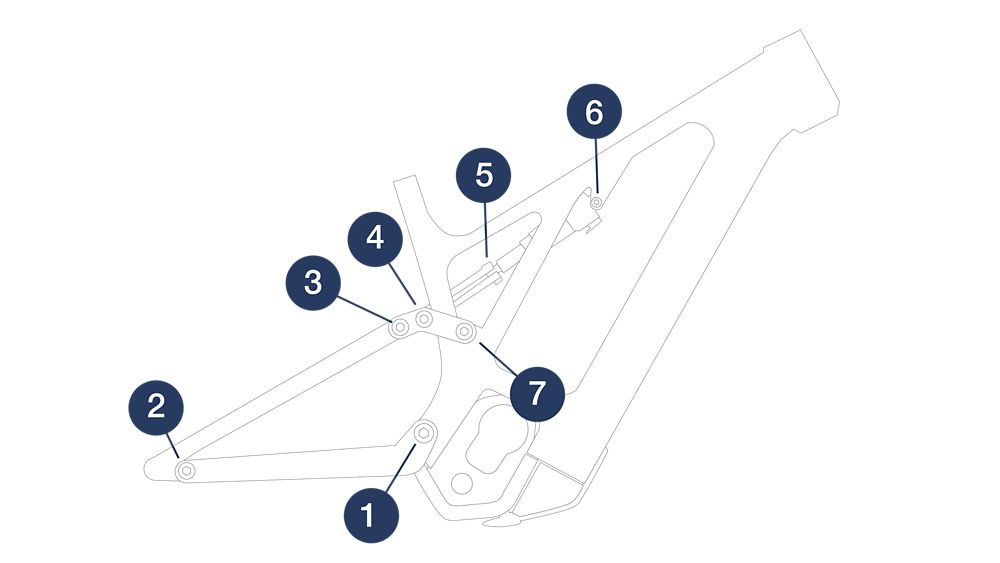

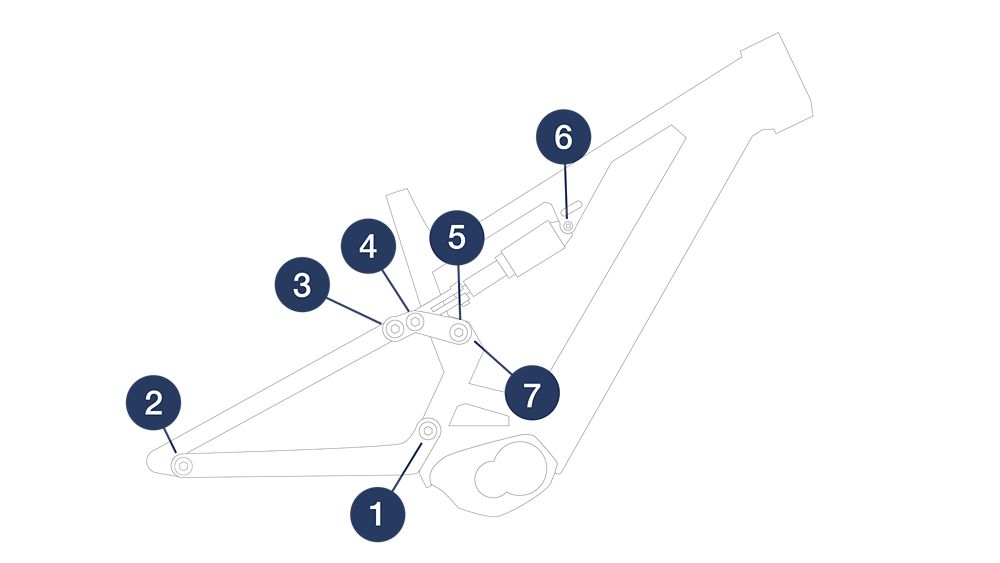

Here you will find the specific torque specs for the main pivots on every bicycle from our Light Cross range.
| Nm | ||
|---|---|---|
| 1 | Main | 14 |
| 2 | Dropout | 14 |
| 3 | Link Seat Stay | 14 |
| 4 | Link Rocker / Clevis | 14 |
| 5 | Shock Mount - Lower / Clevis | 10 |
| 6 | Shock Mount - Upper / Frame | 10 |
| 7 | Link Frame | 14 |
| Nm | ||
|---|---|---|
| 1 | Main | 15 |
| 2 | Dropout | 12 |
| 3 | Link Seat Stay | 12 |
| 4 | Link Rocker / Clevis | 12 |
| 5 | Shock Mount - Lower / Clevis | 8 |
| 6 | Shock Mount - Upper / Frame | 8 |
| 7 | Link Frame | 12 |

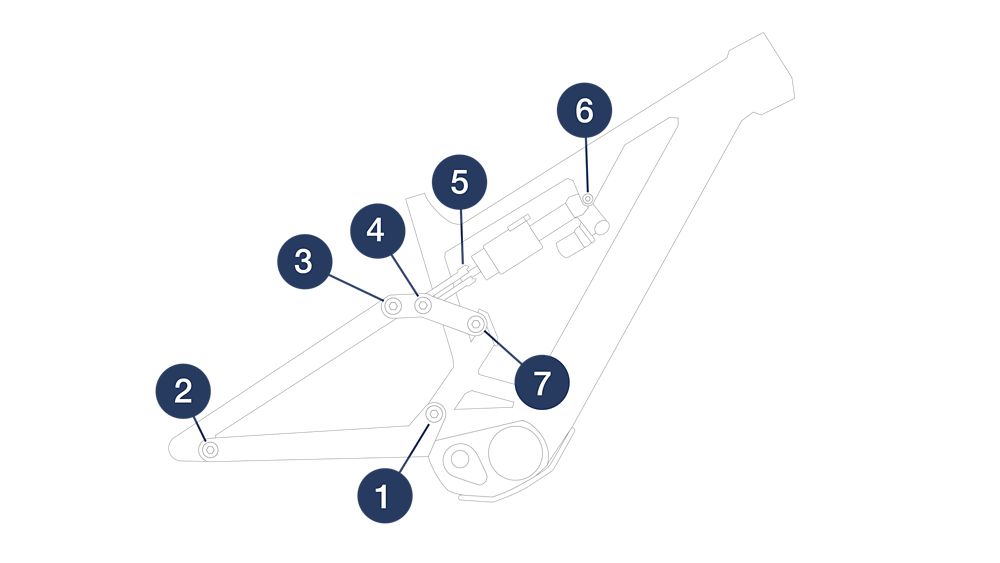

Here you will find the specific torque specs for the main pivots on every bicycle from our Hard Cross range.
DISCLAIMER Always follow the torque measurements written on the components or refer to the components manufacturer manual.
THREAD LOCKING COMPOUND Some fasteners might need the use of a thread locking compound to remain in place and avoid from becoming loose. Always check if there is any thread locking compound residue on the screw when setting up or servicing a bike, make sure to re-apply thread locking compound to ensure proper tightness. Some examples are, suspension pivot screws, disc brake calipers, 6 bolt rotors, etc.
| Nm | ||
|---|---|---|
| 1 | Main | 15 |
| 2 | Dropout | 10 |
| 3 | Link Seat Stay | 10 |
| 4 | Link Rocker / Clevis | 10 |
| 5 | Shock Mount - Lower / Clevis | 10 |
| 6 | Shock Mount - Upper / Frame | 10 |
| 7 | Link Frame | 12 |

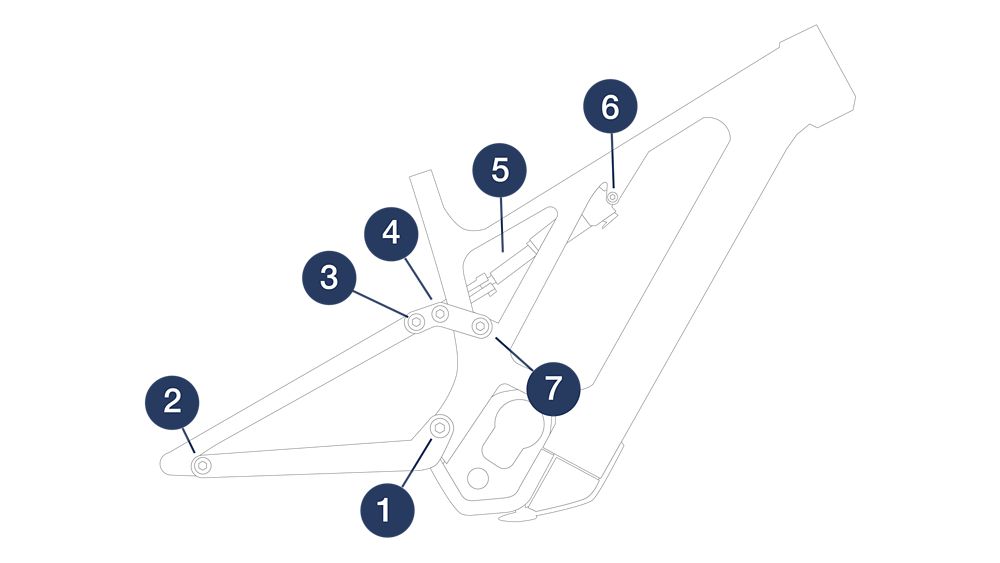

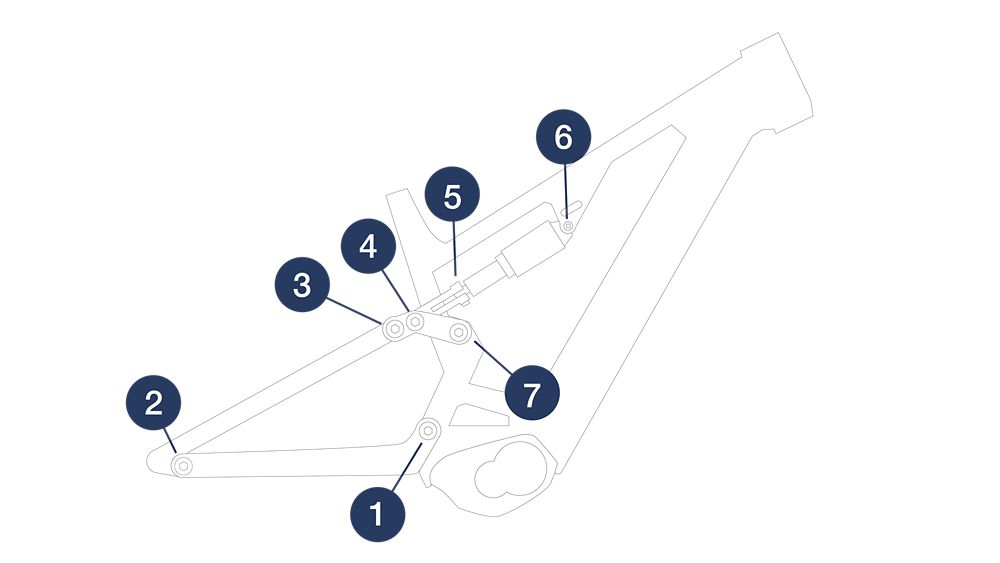

Here you will find the specific torque specs for the main pivots on every bicycle from our Mountain Cross range.
DISCLAIMER Always follow the torque measurements written on the components or refer to the components manufacturer manual.
THREAD LOCKING COMPOUND Some fasteners might need the use of a thread locking compound to remain in place and avoid from becoming loose. Always check if there is any thread locking compound residue on the screw when setting up or servicing a bike, make sure to re-apply thread locking compound to ensure proper tightness. Some examples are, suspension pivot screws, disc brake calipers, 6 bolt rotors, etc.
| Nm | ||
|---|---|---|
| 1 | Main | 15 |
| 2 | Dropout | 10 |
| 3 | Link Seat Stay | 10 |
| 4 | Link Rocker / Clevis | 10 |
| 5 | Shock Mount - Lower / Clevis | 10 |
| 6 | Shock Mount - Upper / Frame | 10 |
| 7 | Link Frame | 12 |
| Nm | ||
|---|---|---|
| 1 | Main | 15 |
| 2 | Dropout | 12 |
| 3 | Link Seat Stay | 12 |
| 4 | Link Rocker / Clevis | 12 |
| 5 | Shock Mount - Lower / Clevis | 8 |
| 6 | Shock Mount - Upper / Frame | 8 |
| 7 | Link Frame | 12 |
