Description
ALL IN. ALL OUT

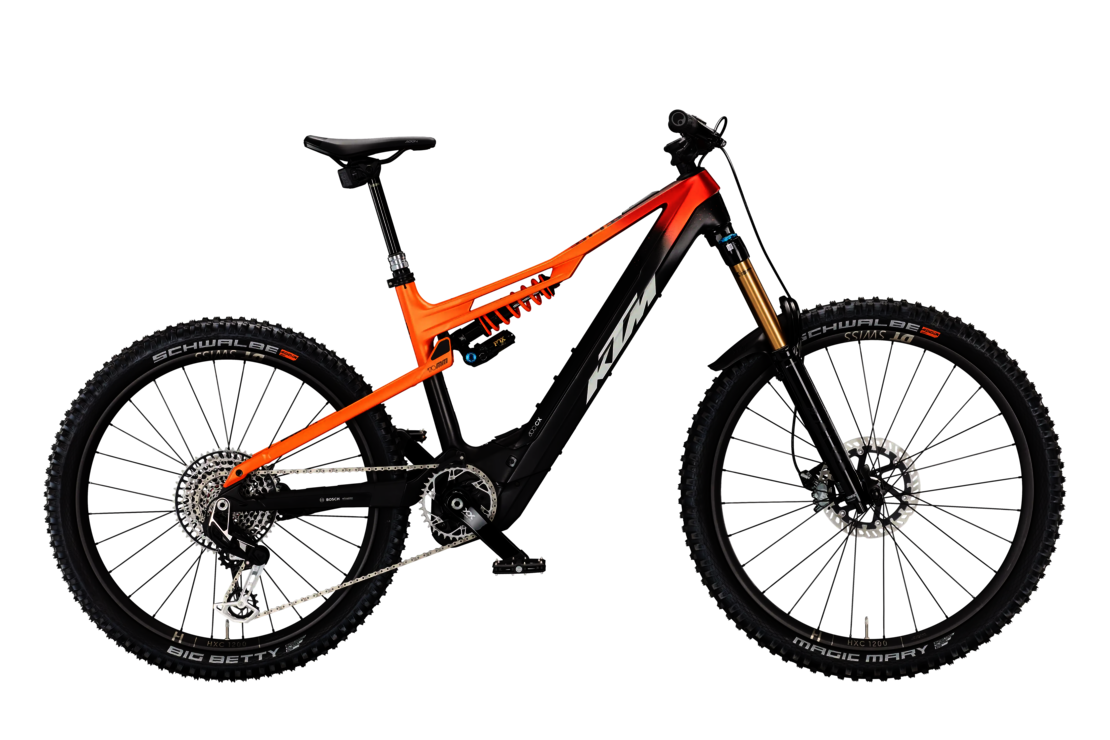

Once again, KTM engineers have pooled their expertise to create the new PROWLER models, living up to the tried-and-tested slogan ‘All in. All Out.’ This model series combines the top innovations from our technology partners, ensuring pure riding pleasure at the highest level
The optimised geometry, combined with the proven STRAIGHT-LINE-LINK (SLL) concept, ensures sensitive and direct chassis response
Thanks to 180 mm of travel on the fork and 170 mm on the rear, the PROWLER is ideal for demanding enduro trails
The Dimension Mix (DiMMiX) offers a decisive advantage in difficult situations: 29‘ wheels at the front for optimum riding stability and steering precision, paired with 27.5’ tyres at the rear for optimum power transmission and traction
The new Bosch Performance Line CX-R (BDU386Y) takes riding dynamics and agility to a new level
Powerful, light and dynamic (100 Nm max. torque/750 watts max. motor power/400% max. assistance factor)
The Power Tube battery offers a capacity of 800 Wh
Here too, KTM has once again opted for the proven POWER TUBE TOP LOADER (PTTL) concept. PPTL is the battery removal system developed by KTM, which allows the battery to be removed from the top of the down tube. This makes removing and reinserting becomes a breeze
Specification
| BAR | KTM PRIME Trail35 Carbon rizer20 800mm |
|---|---|
| BATTERY | Bosch PowerTUBE |
| BATTERY SIZE | 800Wh |
| BRAKE | Magura MT7 4-Piston |
| BRAKE DISC (FRONT) | Magura MDR-P CL 203 |
| BRAKE DISC (REAR) | Magura MDR-P CL 180 |
| CHAIN | SRAM XX Eagle T-Type 12s |
| CHARGER | Bosch STANDARD Charger 4A |
| CRANKSET | SRAM XX T-Type E-MTB 165 mm ISIS |
| DERAILLEUR (REAR) | SRAM XX Eagle Transmission 12speed |
| DISPLAY | Bosch System Controller / Mini Remote Flatbar / PURION 400 Display |
| FORK | FOX 38 Float 29" Factory E 180mm 15x110 |
| FRAME | Macina Prowler Dimmix CB 170 UDH |
| GRIP | Ergon GE10 |
| HEADSET | Acros AICR intern 1.1/8"-1.5" angle lim |
| MOTOR | Bosch PERFORMANCE CX-R ABS BDU3863 |
| PEDALS | MTB-Pedal flat VP-539 nylon |
| PERMISSIBLE TOTAL WEIGHT | 135 KG |
| SADDLE | Fizik Terra Aidon X5 SAlloy |
| SEAT POST | RockShox Reverb AXS wireless T125 |
| SHIFT LEVER | SRAM POD Ultimate AXS Controller |
| SHOCK | FOX Float X NEO Factory 250x75 |
| SPROCKET | SRAM XX T-Type XS-1297 / 10-52 |
| STEM | KTM TEAM Trail35 |
| TYRE (FRONT) | Schwalbe Magic Mary Evo SuperTrail TLE 65-622 |
| TYRE (REAR) | Schwalbe Big Betty Evo SuperGravity TLE 65-584 |
| WEIGHT | 25.4 KG |
| WHEEL (FRONT) | DT HXC 1200 Spline Carbon CL 110/15TA|622x30TSS TLR |
| WHEEL (REAR) | DT HXC 1200 Spline Carbon CL 148/12TA|584x30TSS SS TLR |
